Load Test charts are not clear...

[Krish]

Hi,

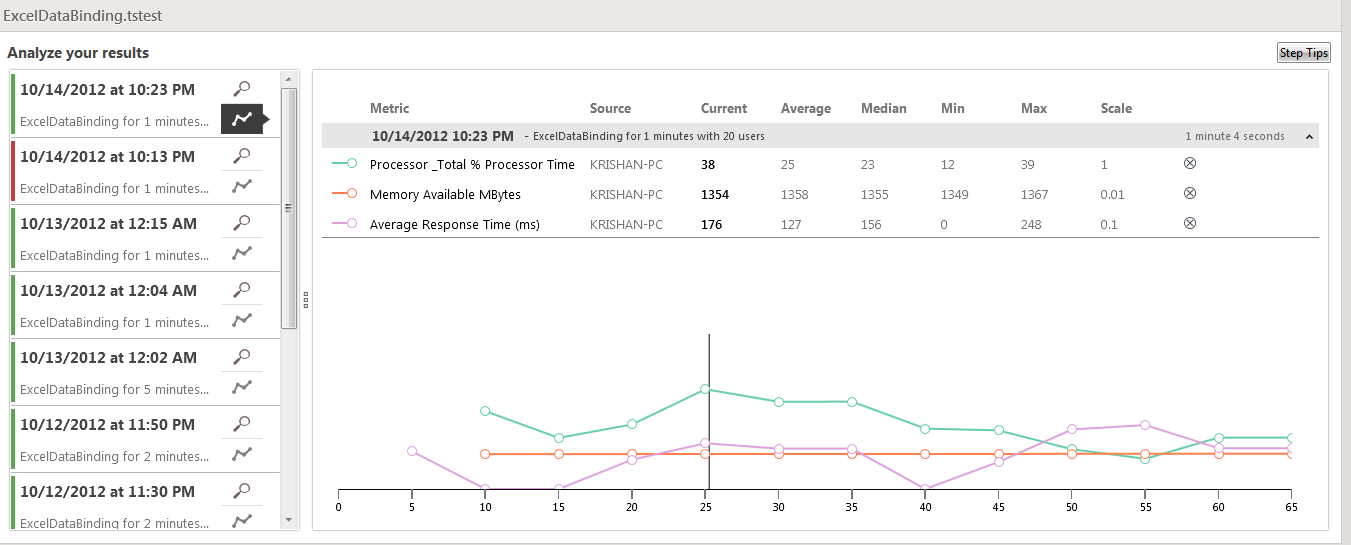

Can telerik team to explain on attached chart..?? If you guys can provide bench mark amounts for the selected counters that will be easier  for us to study this chart with counters..

[Byron]

Hi Krishan,

Thanks for trying Test Studio. As you probably already understand, the above chart tracks processor resource usage percentage, memory available in MB, and average response time in milliseconds over the course of the one minute test. The x-axis (time of counter measurement) is delimited in seconds; the y-axis is a combined percentage/total memory/5 second scale. The last column shows the scale of the graph by metric. When running your test, you can set failure conditions for these metrics. In the Goals tab of the Details View for your test results, you can compare these goals to your metric performance. In the Analysis Screen, you can slide the vertical indicator to view the current value for a specific time in the Current column of the above table. Please let us know if there is a specific value or comparison you would like to view that is not available or which you cannot find, so we can better understand your goals.

Kind regards,
Byron
the Telerik team
