In this tutorial, you’ll see how easy it is to get started using Kendo UI components for Angular, and how to create a rich editor using the Editor component from Kendo UI.

Angular is a JavaScript framework for creating web applications. It promotes best practices and provides tools to ease the development process for software developers. Angular uses declarative templates, dependency injection and Observables to power applications that can be run on several platforms.

We’ll be using Kendo UI’s Editor component to create a web rich editor application. With this application, users can directly convert text to markup.

To follow this tutorial, you need a basic understanding of Angular. Ensure that you have Node and npm installed before you get started.

If you have no prior knowledge of Angular, kindly follow the official tutorial here. You can return to the article when you’re done.

We’ll be building the application using the following tools:

Here’s a screenshot of the application we’ll be building:

s_A29EA86E25D6C99412A640860E523AD32667D2C0723B35FA4AD3EFF7DE67EDBA_1555312767160_Screenshot+2019-04-15+at+4.55.01+AM

Initializing Application and Installing Dependencies

To get started, we will use the CLI (Command Line Interface) provided by the Angular team to initialize our project.

First, install the CLI by running npm install -g @angular/cli. npm is a package manager used for installing packages. It will be available on your PC if you have Node installed; if not, download Node here. To create a new Angular project using the CLI, open a terminal and run:

ng new angular-editor --style=scss

This command is used to initialize a new Angular project; the project will be using SCSS as the pre-processor. Next, run the following command in the root folder of the project to install dependencies:

ng add @progress/kendo-angular-editor

Start the Angular development server by running ng serve in a terminal in the root folder of your project.

Header Component

The header component will display the application logo and very little information. This component is mostly a display component. Run the following command to create the header component:

ng generate component header

Next, open the src/app/header/header.component.html file and update it with the code below:

<!-- src/app/header/header.component.html -->

<header>
    <div class="brand">
      <img src="/assets/document.svg" alt="avatar">
      <h5>Come Edit</h5>
    </div>
</header>

Note: Image asset used can be found here in the GitHub repository. The logo is from https://flaticon.com.

Next, we’ll style the header. Open the header.component.scss file and update it with the snippet below:

header {
  display: flex;
  background-color: white;
  margin: 0;
  padding: 17px 5%;
  color: whitesmoke;
  box-shadow: 0 2px 4px 0 rgba(0, 0, 0, 0.1);
  background: #fbf3f259;
  .brand {
    flex: 1;
    display: flex;
    align-items: center;
    img {
      height: 35px;
      border-radius: 50%;
      margin-right: 17px;
    }
    h5 {
      font-size: 18px;
      margin: 0;
      font-weight: normal;
      letter-spacing: 0.4px;
      color: #d8625e;
      opacity: 0.7;
      text-transform: capitalize;
    }
  }
}

Here, we’ve added a couple of styles to beautify the header. Next, we’ll render the header component in the app.component.html file, open the file and replace the contents with the snippet below:

<main>
  <app-header></app-header>
</main>

Since we’ll be using external fonts, we’ll update the src/index.html file with a link tag alongside the src/styles.scss file.

<!-- index.html -->

<!doctype html>
<html lang="en">
<head>
  <meta charset="utf-8">
  <title>AngularEditor</title>
  <base href="/">
  <meta name="viewport" content="width=device-width, initial-scale=1">
  <link href="https://fonts.googleapis.com/css?family=Rubik:400,500" rel="stylesheet">
  <link rel="icon" type="image/x-icon" href="favicon.ico">
</head>
<body>
  <app-root></app-root>
</body>
</html>

Then we’ll select Rubik as our default font family. We’ll also negate the default padding and margin on the body and html elements. Open the styles.scss file and update it with the following content:

// styles.scss
body, html{
  margin: 0;
  padding: 0;
  font-family: 'Rubik', sans-serif;
  background-color: whitesmoke;
}

This is the current view of the page after rendering the header component:

s_A29EA86E25D6C99412A640860E523AD32667D2C0723B35FA4AD3EFF7DE67EDBA_1555332743041_Screenshot+2019-04-15+at+1.52.06+PM

Next, we’ll create the editor component to enable users to create rich textual content.

Editor Component

Kendo UI provides a component that is useful for creating content using a simple WYSIWYG interface. The component features a rich set of controls for generating markup language elements.

Since we’ve already installed the @progress/kendo-angular-editor package using the CLI, it’ll be available in the app.module.ts file.

We’ll create an editor component that will render the component from Kendo UI. To create the component, run the following command:

ng generate component editor

Open the editor.component.html file and copy the following content into the file:

<!-- src/app/editor/editor.component.html -->

<section>
  <div>
    <kendo-editor
      (valueChange)="valueChange($event)"
    ></kendo-editor>
  </div>
  <div>
    <textarea
      name="editorOutput"
      id=""
      cols="30"
      rows="10"
      [innerHTML]="value"
    ></textarea>
  </div>
</section>

The template will render the editor component from Kendo UI and a textarea element that shows the generated markup for the content created in the editor interface. We attached an event listener on the kendo-editor component, so whenever the content is updated, the innerHTML of the textarea component is updated too.

The editor component can take several controls alongside custom controls that can be rendered within the element. You can also use the component with forms by attaching the ngModel directive to the component.

Next, we’ll add some styles to the component. Open the editor.component.scss file and copy the styles into the file:

// src/app/editor/editor.component.scss

section {
  width: 90%;
  margin: 5% auto 0;
  display: flex;
  div:nth-child(1) {
    width: 57%;
    .k-editor {
      height: 600px;
    }
  }
  div:nth-child(2) {
    width: 40%;
    margin-left: 3%;
    textarea {
      height: 100%;
      width: 100%;
      border: 2px solid rosybrown;
      border-radius: 4px;
      font-size: 14px;
      opacity: 0.8;
      padding: 10px 12px;
    }
  }
}

Next, we’ll update the editor.component.ts file to declare the variables used in the template file. Open the file and update it to be similar to the snippet below:

import { Component, OnInit } from '@angular/core';
@Component({
  selector: 'app-editor',
  templateUrl: './editor.component.html',
  styleUrls: ['./editor.component.scss'],
})
export class EditorComponent implements OnInit {
  constructor() {}
  value = '';
  valueChange(e) {
    this.value = e;
  }
  ngOnInit() {}
}

Next, we’ll render the editor component in the main component file. Open the app.component.html file and render the editor component:

<main>
  <app-header></app-header>
  <app-editor></app-editor>
</main>

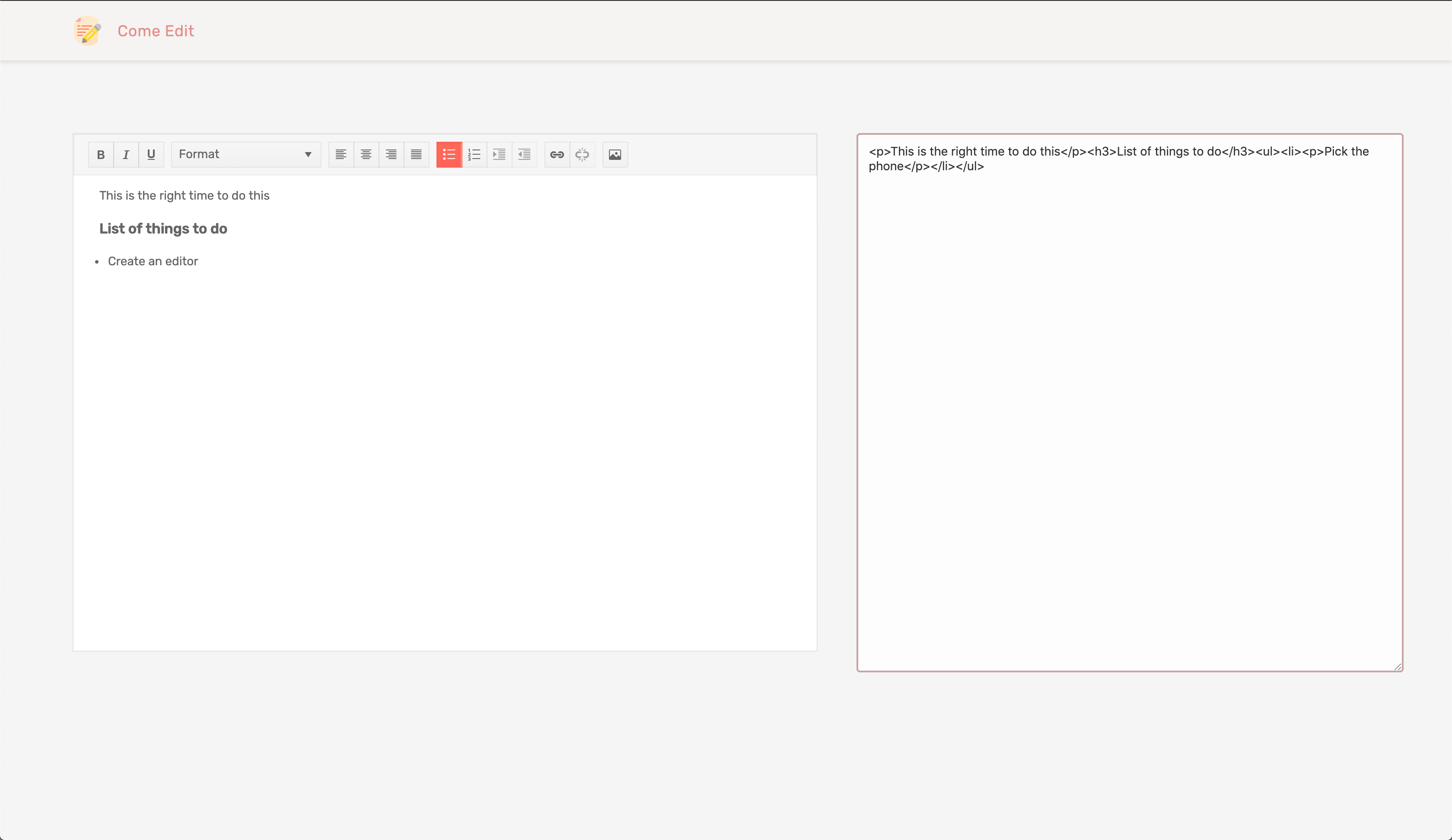

Now if you visit http://localhost:4200 you should see the editor displayed:

s_A29EA86E25D6C99412A640860E523AD32667D2C0723B35FA4AD3EFF7DE67EDBA_1555301364576_Screenshot+2019-04-15+at+4.55.01+AM

Conclusion

In this article, we saw how we could utilize one of Kendo UI’s collection of robust components to create a rich content WYSIWYG editor. Alongside this component, Kendo UI also provides components that can be easily integrated into any Angular application, like DatePickers, DropDown components, Chat interface, Dialogs, Grids and a load of other components. Visit their official documentation page to get started. You can find the source code for the demo here.
