Getting Started with the .NET MAUI PieChart

Updated on Aug 12, 2026

This guide provides the information you need to start using the Telerik UI for .NET MAUI PieChart by adding the control to your project.

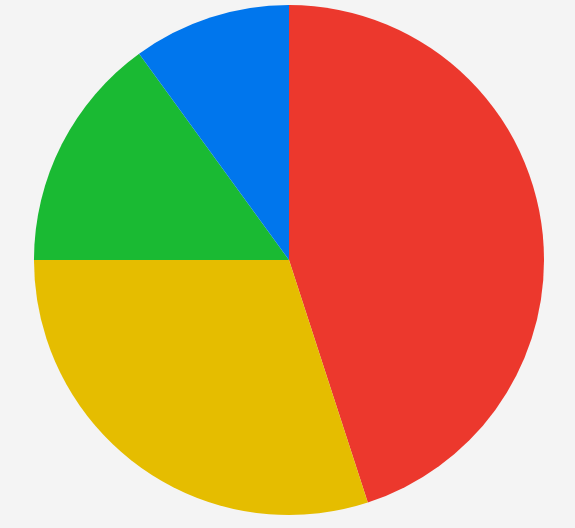

At the end, you will be able to achieve the following result.

Prerequisites

Before adding the Pie Chart, you need to:

1. Set up your .NET MAUI application.

2. Set Up Telerik Development Environment

Define the Control

1. When your .NET MAUI application is set up, you are ready to add a RadPieChart to your page. The following example defines a chart with a PieSeries:

   XAML

   <charts:RadPieChart>
       <charts:RadPieChart.BindingContext>
           <models:PieViewModel />
       </charts:RadPieChart.BindingContext>
       <charts:RadPieChart.Series>
           <charts:PieSeries ValueBinding="Value"
                             LabelBinding="Label"
                             ItemsSource="{Binding Data}" />
       </charts:RadPieChart.Series>
   </charts:RadPieChart>

2. Add the charts namespace:

   XAML

   xmlns:charts="clr-namespace:Telerik.Maui.Controls.Charts;assembly=Telerik.Maui.Controls"

3. Add sample data to the PieSeries:

   C#

   public class PieData
   {
       public string Label { get; set; }

       public double Value { get; set; }
   }

4. Define the ViewModel:

   C#

   public class PieViewModel
   {
       public ObservableCollection<PieData> Data { get; } = new ObservableCollection<PieData>
       {
           new PieData { Label = "Mobile", Value = 45 },
           new PieData { Label = "Desktop", Value = 30 },
           new PieData { Label = "Tablet", Value = 15 },
           new PieData { Label = "Other", Value = 10 },
       };
   }

5. Register the Telerik controls through the Telerik.Maui.Controls.Compatibility.UseTelerik extension method called inside the CreateMauiApp method of the MauiProgram.cs file of your project:

   C#

   using Telerik.Maui.Controls.Compatibility;

   public static class MauiProgram
   {
       public static MauiApp CreateMauiApp()
       {
           var builder = MauiApp.CreateBuilder();
           builder
               .UseTelerik()
               .UseMauiApp<App>()
               .ConfigureFonts(fonts =>
               {
                   fonts.AddFont("OpenSans-Regular.ttf", "OpenSansRegular");
               });
           return builder.Build();
       }
   }

The PieSeries binds to a collection of items through its ItemsSource property, while the ValueBinding and LabelBinding properties define which data-item members supply the value and the label of each slice.

For a runnable example with the Pie Chart Getting Started scenario, go to the SDKBrowser Demo Application and navigate to the Charts > Getting Started category.

Additional Resources

• .NET MAUI Pie Chart Series
• .NET MAUI Charts Product Page
• .NET MAUI Charts Forum Page

See Also

• Pie Chart Series
• Pie Chart Visual Structure
