In part one of this two part epic mini-series, I went over how to get up and running with PHP, how to choose and IDE, and how to get your paws on some fake data if you need it.
We built a simple SPA (single page application) which displays a list of sales employees and each employee can be expanded to show the territories they are responsible for. Today we are going to extend that application to allow a user to create, update and delete data.
The requirements are as follows:
Requirement 1: Users should be able to update an employee’s last name, but not their first name. This is because first names don’t change, but last names sometimes do.
Requirement 2: Users should be able to add new territories to a sales employee.
Not terribly complex requirements to implement, but this will allow us to work through how we can use the DataSource and models along with editable grids.
The first thing that we should do is tell the grid of employees that it is editable. This is done by setting editable: true.
$("#grid").kendoGrid({ dataSource: { transport: { read: "data/employees.php" }, schema: { data: "data" } }, columns: [{ field: "FirstName" }, { field: "LastName" }], detailTemplate: kendo.template($("#template").html()), detailInit: detailInit, editable: true });
Setting editable: true is not enough to make the grid editable because the grid doesn’t have nearly enough information to know how to handle the editing process. We want the last name to be editable but not the first. Additionally, we don’t want people to be able to null out the last name. Madonna does not work at this company.
The grid will get this information from the DataSource, but we need to define the “model” property of the schema which will tell the DataSource the exact structure of the data, as well as allowing us to specify validation rules for the data.
$("#grid").kendoGrid({ dataSource: { transport: { read: "data/employees.php" }, schema: { data: "data", model: { id: "EmployeeID", fields: { FirstName: { editable: false }, LastName: { validation: { required: true} } } } } }, columns: [{ field: "FirstName" }, { field: "LastName" }], detailTemplate: kendo.template($("#template").html()), detailInit: detailInit, editable: true });
The above schema property has been modified. It now contains a model object. That model defines the primary key for the employee data, which is of course the EmployeeID. This is the field that helps the model know how to distinguish unique objects. The fields property designates the rest of the fields in the data source that we are using. In our case, it’s the first and last name. Each field property has some additional information with it.
FirstName: We decided first names don’t change so we don’t want people editing this field. This is accomplished by setting editable: false for the FirstName.
LastName: This field is editable, but we don’t want users blanking it out, so we can make it required by setting the validation object.
The grid now has enough information to make the grid editable. If you run the project, you will notice that you can click on the Last Name and it will become and editable textbox. However, if you click on the First Name, nothing happens because you can’t edit it. Go ahead and try to blank out the Last Name and press enter. You get a validation message.
Pretty impressive eh? For more information on all the things you can do with validation rules, make sure you check out the Kendo UI Validation Demos.
Before we can go any further with this, we need to create an endpoint for updating the last name.
Update Endpoint
So far, we have all our endpoints in a data folder. Each endpoint is named for the table which it theoretically represents in the database. We could do this one of two ways.
1. We could create subfolders for the endpoints and then have read, create, update and delete methods in each one.
2. Listen for the HTTP verb type and respond appropriately.
I feel like number 2 is more RESTful than1, so I implemented it that way. Notice I said more RESTful, not RESTful. REST is wonderful and you should learn much more about it, but there isn’t space to fully cover that and the current topic in this post.
What I mean by the HTTP verb is that if the request is a GET, we will treat it as a read. If it is a POST, we treat it as an update. Additionally, if we were doing create or delete we would use the PUT for create and the DELETE for delete.
Inside the employees.php file in the data folder, we need to write scenarios for the different request types. I did this by determining what the verb was using the $.SERVER[“REQUEST_TYPE”] method and responding appropriately.
<?php $link = mysql_pconnect("localhost", "root", "root") or die("Unable To Connect To Database Server"); mysql_select_db("northwind") or die("Unable To Connect To Northwind"); // add the header line to specify that the content type is JSON header("Content-type: application/json"); // determine the request type $verb = $_SERVER["REQUEST_METHOD"]; // handle a GET if ($verb == "GET") { $arr = array(); $rs = mysql_query("SELECT EmployeeID, LastName, FirstName FROM Employees"); while($obj = mysql_fetch_object($rs)) { $arr[] = $obj; } echo "{\"data\":" .json_encode($arr). "}"; } // handle a POST if ($verb == "POST") { // DISCLAIMER: It is better to use PHP prepared statements to communicate with the database. // this provides better protection against SQL injection. // http://php.net/manual/en/pdo.prepared-statements.php // get the parameters from the post. escape them to protect against sql injection. $lastName = mysql_real_escape_string($_POST["LastName"]); $employeeId = mysql_real_escape_string($_POST["EmployeeID"]); $rs = mysql_query("UPDATE Employees SET LastName = '" .$lastName ."' WHERE EmployeeID = " .$employeeId); echo json_encode($rs); } ?>
A Few Things Of Note
I moved the header call to the top because we need it no matter what. The next thing I did was determine the verb and set the $verb variable. The first if handles the GET or the read, and the second handles the POST or update.
In the POST method, I pulled the LastName value and EmployeeID off the request, since the Kendo UI DataSource sent them as parameters. It’s then just a matter of executing a simple update statement. When doing a CRUD operation like this, the mysql_query will return a simple true if the statement executed and a false if it did not. The only thing the DataSource is looking for is a 200 from the server, so it really doesn’t matter what you return, as long as it’s JSON.
Add The Endpoint To The DataSource
The DataSource needs to know about the update endpoint and that we want a POST. This is done by specifying the update object on the transport.
The other changes I made to the grid were to make it navigable, which enables me to exit the cell be edited by using the “enter” key, and also add “Save” and “Cancel” buttons in the toolbar. All of this is trivial with the grid. The grid code now looks like this.
$("#grid").kendoGrid({ dataSource: { transport: { read: "data/employees.php", update: { url: "data/employees.php", type: "POST" } }, schema: { data: "data", model: { id: "EmployeeID", fields: { FirstName: { editable: false }, LastName: { validation: { required: true} } } } } }, columns: [{ field: "FirstName" }, { field: "LastName" }], detailTemplate: kendo.template($("#template").html()), detailInit: detailInit, editable: true, navigable: true, // enables keyboard navigation in the grid toolbar: [ "save", "cancel" ] // adds save and cancel buttons });
PHP is going to return a 200, even if the SQL statement doesn’t execute. We don’t want this. Then the grid thinks the data update happened, but in reality, it failed. The UI is now out of sync with the database.
We need for PHP to return a server error. To do this, we just need to add the header. Our POST function now looks like this…
// handle a POST if ($verb == "POST") { // DISCLAIMER: It is better to use PHP prepared statements to communicate with the database. // this provides better protection against SQL injection. // http://php.net/manual/en/pdo.prepared-statements.php // get the parameters from the post. escape them to protect against sql injection. $lastName = mysql_real_escape_string($_POST["LastName"]); $employeeId = mysql_real_escape_string($_POST["EmployeeID"]); $rs = mysql_query("UPDATE Employees SET LastName = '" .$lastName ."' WHERE EmployeeID = " .$employeeId); if ($rs) { echo json_encode($rs); } else { header("HTTP/1.1 500 Internal Server Error"); echo "Update failed for EmployeeID: " .$employeeId; } }

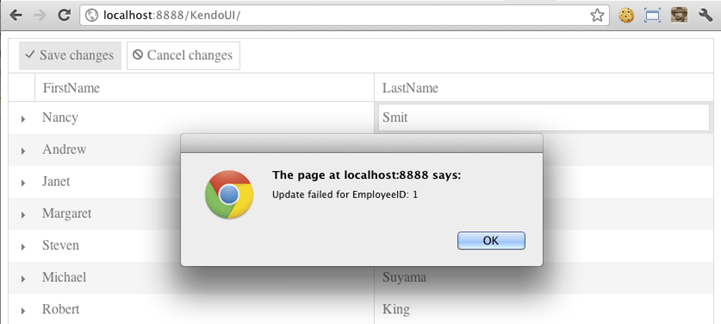

If the update succeeds, a “true” is returned. If the update fails, a 500 server error is returned and the grid will not reflect that the update has been made. If you want to provide additional information on the error, you can listen to the errorevent on the DataSource updatemethod.
$("#grid").kendoGrid({ dataSource: { transport: { read: "data/employees.php", update: { url: "data/employee.php", type: "POST" } }, error: function(e) { alert(e.responseText); } schema: { data: "data", model: { id: "EmployeeID", fields: { FirstName: { editable: false }, LastName: { validation: { required: true} } } } } }, columns: [{ field: "FirstName" }, { field: "LastName" }], detailTemplate: kendo.template($("#template").html()), detailInit: detailInit, editable: true, navigable: true, // enables keyboard navigation in the grid toolbar: [ "save", "cancel" ] // adds save and cancel buttons });
In order to enable our users to add sales territories, we need to give the details grid a model as well and specify it’s structure. We also need to specify the endpoint for a create. In our RESTful style, we will use a “PUT” HTTP verb as the type and specify the create method of the transport. I also moved the DataSource out of the grid declaration and into a variable that we can access later.
In JavaScript, if you don’t put var in front of your variable, it becomes a global variable. This is generally considered bad practice, but in the name of simple demonstration, I’m doing it here.
employeeTerritoriesDS = new kendo.data.DataSource({ transport: { read: "data/territories.php", create: { url: "data/employeeTerritories.php", type: "PUT" }, }, schema: { data: "data", model: { id: TerritoryID, } }, serverFiltering: true, filter: { field: "EmployeeID", operator: "eq", value: e.data.EmployeeID } }); // create a subgrid for the current detail row, getting territory data for this employee detailRow.find(".subgrid").kendoGrid({ dataSource: employeeTerritoriesDS, columns: [{ title: "Territories", field: "TerritoryDescription" }], toolbar: [ "save" ] });
I also added a save button on the toolbar like we did in the parent grid.
At this point, we need to add a way for users to add a new territory to a user. There is a catch here though. We can’t just let them enter free text. We have a table of Territories and a table of Employees and they are related via a Lookup Table called EmployeeTerritories. If we let the user enter free text, we then have to create the territory, get it’s newly created ID and update the EmployeeTerritories table. Beyond that, the user could enter a value that is already in the Territories table. That defeats the purpose of our lookup. What we really need, is a list of choices.
Remember when I mentioned in part 1 that our details template was simple, but we could expand on it? We’re going to do that now. Our new template will contain an input which we can turn into a ComboBox and a button on which we can handle the click and add the item to the grid.
<script type="text/x-kendo-template" id="template"> <div> <div style="margin-bottom: 10px;"> <input id="territory_#= data.EmployeeID #" class="comboBox" /> <button class="k-button add-territory" data-employee-id="#= data.EmployeeID #" onclick="addTerritory(this)" >Add</button> </div> <div class="subgrid"></div> </div> </script>
So we added an input and a button. But what is this funky #= syntax?
This is a Kendo UI Template syntax. It’s going to replace data.EmployeeID with the actual EmployeeID. The e argument that goes into the detailInit(e) function also gets passed to our template. EmployeeID is found on the data object off the e parameter. We are dynamically composing an ID that will help us grab that ComboBox later much easier. We are also adding the EmployeeID as a data attribute on the button so we can get the EmployeeID back much easier and thusly get the instance of the ComboBox much easier. I also added an onlick event to the button and passed in the button itself as a parameter. This addTerritory event is where we will actually add the item to the grid.
On the detailInit() we need to define a DataSource for our ComboBox and create the widget. We are going to need an additional file in the data folder. At this point, it makes more sense for our current territories.php file to be renamed to employeeTerritories.php because that’s really what it represents. I renamed that and updated the DataSource instance with the right endpoints on the transport.
Now create a new php file in data, and call it territories.php. This file will get us a list of Territories our users can pick from. But we don’t want the user assigning duplicate territories so we need to filter those out. We will select everything that is not currently assigned to them. You will notice below in the transport that I add the EmployeeID on to the end of the read so it gets passed as a query string variable.
// create the datasource territoriesDS = new kendo.data.DataSource({ transport: { read: "data/territories.php?EmployeeID=" + e.data.EmployeeID }, schema: { data: "data", model: { id: "TerritoryID" } } });
And the territories.php endpoint:
<?php $link = mysql_pconnect("localhost", "root", "root") or die("Could not connect"); mysql_select_db("northwind") or die("Could not select database"); $arr = array(); // DISCLAIMER: It is better to use PHP prepared statements to communicate with the database. // this provides better protection against SQL injection. // http://php.net/manual/en/pdo.prepared-statements.php // get the parameters from the get. escape them to protect against sql injection. $employeeId = mysql_real_escape_string($_REQUEST["EmployeeID"]); $rs = mysql_query("SELECT t.TerritoryID, TRIM(t.TerritoryDescription) AS TerritoryDescription FROM EmployeeTerritories et INNER JOIN Territories t ON et.TerritoryID = t.TerritoryID WHERE et.EmployeeID != " .$employeeId . " ORDER BY t.TerritoryDescription ASC"); while($obj = mysql_fetch_object($rs)) { $arr[] = $obj; } header("Content-type: application/json"); echo "{\"data\":" .json_encode($arr). "}"; ?>
The DataSource and endpoint are all configured so we are set to turn this input from the template into a ComboBox. To do this,.we select the item and call kendoComboBox(), passing in the DataSource and defining what the text and value fields are.
// create the autocomplete detailRow.find(".comboBox").kendoComboBox({ dataSource: territoriesDS, dataTextField: "TerritoryDescription", dataValueField: "TerritoryID" });

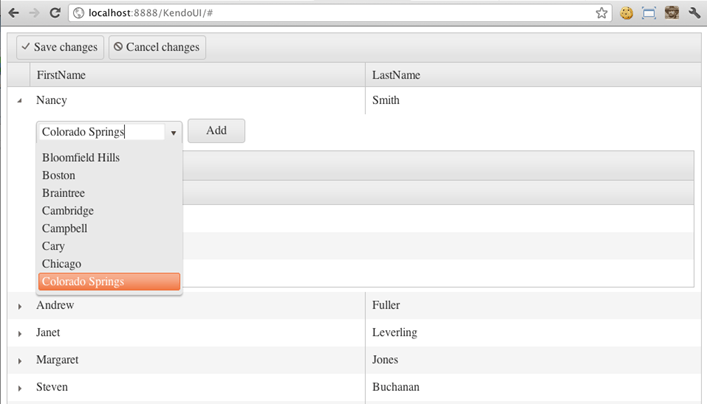

Now if you view the page, we have a nifty drop down you can either type in, or select from. Oh, and I also switched my theme to default just for fun!
Pretty Nifty! Now we have a ComboBox that returns only the territories that are not currently assigned to this person. Now let’s add the event for handling the button click.
var addTerritory = function(sender) { // get the employee id off the data-employee-id attribute of the button var employeeId = $(sender).data("employee-id"); // get a reference to the combobox which contains the selected item var comboBox = $("#territory_" + employeeId).data("kendoComboBox"); // add the item to the datasource - it is thusly added to the grid employeeTerritoriesDS.add({ EmployeeID: employeeId, TerritoryDescription: comboBox.text(), TerritoryID: comboBox.value() }); // remove the current item from the combobox - it's no longer a valid selection territoriesDS.remove(comboBox.value()); // clear the text of the combobox comboBox.text(""); }
The first line gets the EmployeeID off the data attribute on the button.
The second line gets the ComboBox by building the dynamic ID and getting a reference to an instance of the ComboBox.
Kendo UI Widgets are always referenced by data(“kendoWidgetName”) after initialization.
The third line actually adds an item to the employeeTerritoriesDS. This is the power of the DataSource. We aren’t going to interact with the remote data, only the local model. The DataSource will take care of sending it to the database after we click the save button.
The last two lines remove the item we just added from the ComboBox, because it is no longer available and then clear the text of the ComboBox box.
Let’s add the PUT method to the employeeTerritories.php file. Unlike the GET and POST, PHP does not contain a global container for PUT or DELETE so far as I know and I don’t know why.
In any case, we can read in the input, assign it to an array and then access the variables we send over the wire as part of the form values.
if ($verb == "PUT") { $request_vars = Array(); parse_str(file_get_contents('php://input'), $request_vars ); // DISCLAIMER: It is better to use PHP prepared statements to communicate with the database. // this provides better protection against SQL injection. // http://php.net/manual/en/pdo.prepared-statements.php // get the parameters from the get. escape them to protect against sql injection. $territoryId = mysql_real_escape_string($request_vars["TerritoryID"]); $employeeID = mysql_real_escape_string($request_vars["EmployeeID"]); $sql = "INSERT INTO EmployeeTerritories (EmployeeID, TerritoryID) VALUES (" .$employeeID ."," .$territoryId .")"; $rs = mysql_query($sql); if ($rs) { echo true; } else { header("HTTP/1.1 500 Internal Server Error"); echo false; } }
Now run the application and you can add new items to the grid. Once you click the Save button in the grid toolbar, the inserts will be sent to the server. However, TerritoryID will be empty. Why is this? This is actually because we didn’t assign a TerritoryID when we added the model object to the DataSource on the subgrid. The TerritoryID is currently the primary key. The DataSource will not recognize the object as being a newly created object if you assign a value to it’s primary key and thusly nothing will get sent to the server on create.
The real issue here is that the primary key for the subgrid is really a compound key. It’s the EmployeeID and the TerritoryID together which define a unique record. Let’s go back and do some trickery in the SQL to make that appear to be the case. We can concatenate the EmployeeID and TerritoryID to make our own compound key.
$rs = mysql_query("SELECT CONCAT(et.EmployeeID, et.TerritoryID) AS EmployeeTerritoryID, t.TerritoryID, e.EmployeeID, TRIM(t.TerritoryDescription) AS TerritoryDescription FROM Territories t INNER JOIN EmployeeTerritories et ON t.TerritoryID = et.TerritoryID INNER JOIN Employees e ON et.EmployeeID = e.EmployeeID WHERE e.EmployeeID = " .$employeeID);
And the model for the DataSource now becomes:
model: { id: "EmployeeTerritoryID" }
No need to add the EmployeeID or TerritoryID to the model definition. It’s smart enough to pick those up on its own!
That was a lot to go over. If you made it all the way through – congratulations! You know understand enough to build some extremely awesome applications with Kendo UI and PHP! Grab the completed project here.
I realize that I said I was not a PHP expert, but If I may I would like to recommend that you do use some sort of MVC framework with your PHP. Zend is popular and CodeIgniter caught my interest as I was doing some research. It really takes some of the headache out of the manual things that we did here.
Download Kendo UI today and get rolling building your first PHP powered application.
