WebForms TileList Overview

RadTileList brings the popular Windows 8 Start Menu interface to the web and lets you build a user friendly navigationfor your site. Take advantage of the predefined tile types and shapes to build an engaging menu for your users.

ninja-iconThe TileList is part of Telerik UI for ASP.NET AJAX, a professional grade UI library with 120+ components for building modern and feature-rich applications. To try it out sign up for a free 30-day trial.Start Free Trial

Since Q3 2013 the Tiles can be used as standalone controls with their own events, methods and properties.

Top Features

The control offers a rich set of features:

  • Various Tile types

  • Two tile shapes

    • Wide—310x150px

    • Square—150x150px

  • All essential tile elements

    • Title—an image or text in the tile's bottom corner that indicates the purpose of the tile

    • Badge—a smaller image or a numerical value in the other bottom corner. A predefined set of images that match our skins is also available

  • Group Titles

  • Data binding—the control can generate Tiles according to information from a datasource.

  • Client-side Data binding—the control can generate Tiles according to informationfrom a simple client-side datasource or using the RadClientDataSource control.

  • Responsive layout—the layout of the tiles and groups can change automatically according to the browser's viewport size to provide the best fit.

  • Peek templates—customizable content that will replace the original tile contentaccording to a set of rules—automatic timers, mouseover and mouseout; as well as a rich set of animations.

  • Drag and drop—tiles can be dragged to a different location so the end user can customize the appearance of the TileList.

  • Rich API and events—both on the server and on the client

  • Easy navigation—just set an URL and target to take the user to the desired page

  • Native scrolling—you can let the browser scroll the control, disable scrolling, or let evendesktop users benefit from click-and-drag scrolling like in a touch device.

  • Customizable selection—the users can select tiles like in Windows8 so you can get this information.You can let them select as many as they like, only one, or disable the feature.

  • Right-to-left support

  • Semantic rendering—as lightweight as possible, no tables are used and the title elements are <h6> elements.

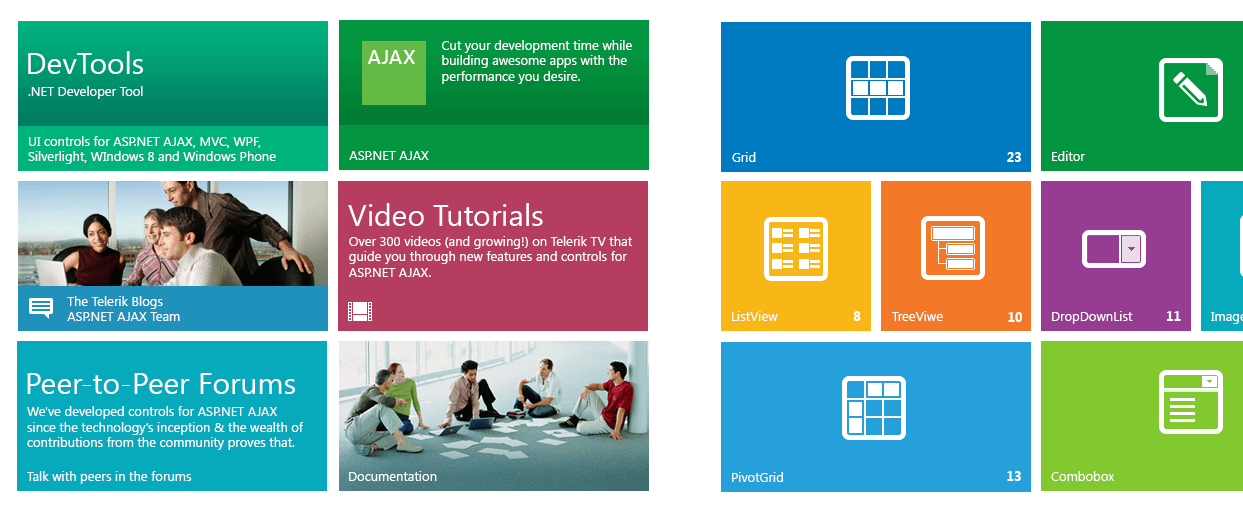

Here is an example of what you can achieve with the control:tilelist-overview-example
