WebForms ListView Overview

Telerik RadListView is designed to give your the freedom to specify predefined or customized type of layout for the items displayed in the control and in the same time gives you integrated sorting, paging, grouping, editing, selecting, etc. capabilities. You can embed various controls of your choice in RadListView's templates and model their appearance in a custom manner. Thanks to its innovative architecture Telerik RadListView is extremely fast and generates very little output. Added to this is true cross browser support — all major/modern browsers, see Browser Support - Telerik UI for ASP.NET AJAX.

The ListView is part of Telerik UI for ASP.NET AJAX, a professional grade UI library with 120+ components for building modern and feature-rich applications. To try it out sign up for a free 30-day trial.Start Free Trial

To create a basic RadListView:

ensure you have a script manager on the page (use <asp:ScriptManager> tag to declare one)
use the <telerik:RadListView> tag to declare the ListView and to set its global properties
use its DataSource (or DataSourceID) property to reference the variable (or the DataSource component) that will hold your collection of data, see Telerik RadListView Data Binding section in our documentation
define the Layout Template and declare ItemPlaceholder control inside which will contain the Items collection
define the Item Template and set desired styles

ASP.NET
<asp:ScriptManager ID="ScriptManager1" runat="server"></asp:ScriptManager>

<telerik:RadListView ID="RadListView1" runat="server" OnNeedDataSource="RadListView1_NeedDataSource" ItemPlaceholderID="PlaceHolder1">
    <LayoutTemplate>
        <div class="listview-layout">
            <h2>Employee List</h2>

            <asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>
        </div>
    </LayoutTemplate>
    <ItemTemplate>
        <div class="listview-item">
            <h3><%# Eval("Name") %></h3>
            <h4><%# Eval("Team") %></h4>
        </div>
    </ItemTemplate>
</telerik:RadListView>
CSS
.listview-layout {
    width: 630px;
    border: 1px solid gray;
    border-radius: 10px;
    padding: 10px;
}

.listview-item {
    height: 80px;
    width: 80px;
    display: inline-block;
    margin: 10px;
    border: 1px solid black;
    border-radius: 10px;
    padding: 10px;
}

Code-behind:

C#
protected void RadListView1_NeedDataSource(object sender, RadListViewNeedDataSourceEventArgs e)
{
    RadListView1.DataSource = ListViewData;
}
List<SampleData> ListViewData = Enumerable.Range(1, 20).Select(x => new SampleData
{
    Id = x,
    Name = "Name " + x,
    Team = "Team " + x % 3
}).ToList();

public class SampleData
{
    public int Id { get; set; }
    public string Name { get; set; }
    public string Team { get; set; }
}
VB
 Protected Sub RadListView1_NeedDataSource(ByVal sender As Object, ByVal e As RadListViewNeedDataSourceEventArgs)
        RadListView1.DataSource = ListViewData
    End Sub

    Private ListViewData As List(Of SampleData) = Enumerable.Range(1, 20).[Select](Function(x) New SampleData With {
        .Id = x,
        .Name = "Name " & x,
        .Team = "Team " & x Mod 3
    }).ToList()

    Public Class SampleData
        Public Property Id As Integer
        Public Property Name As String
        Public Property Team As String
    End Class

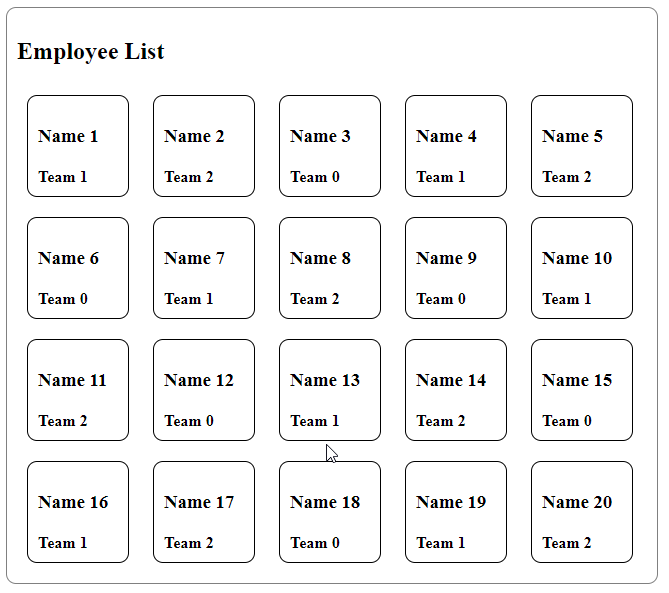

The result from the code above:

ListView basic sample

Enable paging:

Set AllowPaging="true" and define the PageSize
Add pager declaration to the layout template

ASP.NET

<telerik:RadListView ID="RadListView1" runat="server" OnNeedDataSource="RadListView1_NeedDataSource" ItemPlaceholderID="PlaceHolder1" AllowPaging="true" PageSize="5">
    <LayoutTemplate>
        <div class="listview-layout">
            <h1>Employee List</h1>

            <asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>

            <div>
                <div style="float: left; margin-left: 30%;">
                    <asp:Button runat="server" ID="btnFirst" CommandName="Page" CommandArgument="First"
                        Text="First" Enabled="<%#Container.CurrentPageIndex > 0 %>" />
                    <asp:Button runat="server" ID="btnPrev" CommandName="Page" CommandArgument="Prev"
                        Text="Prev" Enabled="<%#Container.CurrentPageIndex > 0 %>" />
                    <span style="vertical-align: top; position: relative; top: 4px">Page <%#Container.CurrentPageIndex + 1 %> of<%#Container.PageCount %></span>
                    <asp:Button runat="server" ID="btnNext" CommandName="Page" CommandArgument="Next"
                        Text="Next" Enabled="<%#Container.CurrentPageIndex + 1 < Container.PageCount %>" />
                    <asp:Button runat="server" ID="btnLast" CommandName="Page" CommandArgument="Last"
                        Text="Last" Enabled="<%#Container.CurrentPageIndex + 1 < Container.PageCount %>" />
                </div>
                <div>
                    <span style="vertical-align: middle; font-weight: bold; padding-left: 5px;">Page Size:</span>
                    <telerik:RadComboBox RenderMode="Lightweight" runat="server" ID="cmbPageSize" OnSelectedIndexChanged="cmbPageSize_SelectedIndexChanged"
                        AutoPostBack="true" Width="40px" SelectedValue="<%#Container.PageSize %>">
                        <Items>
                            <telerik:RadComboBoxItem Text="5" Value="5" />
                            <telerik:RadComboBoxItem Text="10" Value="10" />
                            <telerik:RadComboBoxItem Text="15" Value="15" />
                            <telerik:RadComboBoxItem Text="20" Value="20" />
                        </Items>
                    </telerik:RadComboBox>
                </div>
            </div>
        </div>
    </LayoutTemplate>
    <ItemTemplate>...</ItemTemplate>
</telerik:RadListView>

Code-behind:

C#
protected void cmbPageSize_SelectedIndexChanged(object sender, RadComboBoxSelectedIndexChangedEventArgs e)
{
    var rlv = (sender as RadComboBox).NamingContainer as RadListView;
    rlv.PageSize = Int32.Parse(e.Value);
    rlv.Rebind();
}
VB
Protected Sub cmbPageSize_SelectedIndexChanged(ByVal sender As Object, ByVal e As RadComboBoxSelectedIndexChangedEventArgs)
    Dim rlv = TryCast((TryCast(sender, RadComboBox)).NamingContainer, RadListView)
    rlv.PageSize = Int32.Parse(e.Value)
    rlv.Rebind()
End Sub

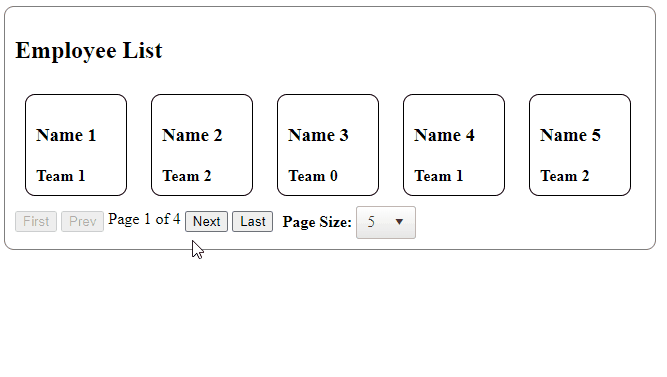

Result from code snippets above:

ListView Paging with AJAX

Main benefits of using RadListView:

Accessibility Compliance
- Accessibility support
Various templates for data and layout presentation, edit or insert operations, selection, grouping etc.
- Data and Layout Templates
- Edit and Insert Templates
Set of commonly used predefined layouts and unlimited possibilities for custom layouts definitions
- Predifined Layouts
- Custom Layouts
DataBinding capabilities
- Server-side Binding
- Client-side Binding

List of key features you can find below:

First steps on enabling functionalities:

Enable sorting

ASP.NET
<telerik:RadButton ID="RadButton1" runat="server" Text="Sort By Team" OnClick="RadButton1_Click"></telerik:RadButton>
C#
protected void RadButton1_Click(object sender, EventArgs e)
{
    RadListViewSortExpression expression = new RadListViewSortExpression();
    RadListView1.SortExpressions.Clear();
    expression.FieldName = "Team";
    expression.SortOrder = RadListViewSortOrder.Ascending;
    RadListView1.SortExpressions.AddSortExpression(expression);
    RadListView1.Rebind();
}
VB
Protected Sub RadButton1_Click(ByVal sender As Object, ByVal e As EventArgs)
    Dim expression As RadListViewSortExpression = New RadListViewSortExpression()
    RadListView1.SortExpressions.Clear()
    expression.FieldName = "Team"
    expression.SortOrder = RadListViewSortOrder.Ascending
    RadListView1.SortExpressions.AddSortExpression(expression)
    RadListView1.Rebind()
End Sub

Listview basic sorting

Enable selection

ASP.NET
<telerik:RadListView ID="RadListView1" runat="server" OnNeedDataSource="RadListView1_NeedDataSource" ItemPlaceholderID="PlaceHolder1" AllowMultiItemSelection="true">
    <LayoutTemplate>
        <div class="listview-layout">
            <h2>Employee List</h2>
            <asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>
        </div>
    </LayoutTemplate>
    <ItemTemplate>
        <div class="listview-item">
            <h3><%# Eval("Name") %></h3>
            <h4><%# Eval("Team") %></h4>
            <asp:LinkButton ID="SelectButton1" Text="Select" CommandName="Select" runat="server" />
        </div>
    </ItemTemplate>
    <SelectedItemTemplate>
        <div class="listview-item SelectedItem">
            <h3><%# Eval("Name") %></h3>
            <h4><%# Eval("Team") %></h4>
            <asp:LinkButton ID="DeselectButton1" Text="Deselect" CommandName="Deselect" runat="server" />
        </div>
    </SelectedItemTemplate>
</telerik:RadListView>
CSS
.listview-item.SelectedItem {
    background-color: lightblue;
}

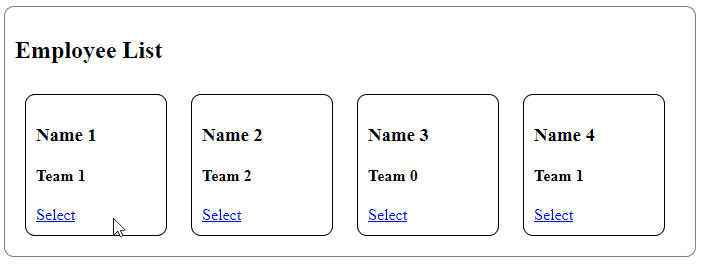

ListView Selecting

Enable filtering

Sample grouping with RadFilter, see RadFilter - Telerik ASP.NET Filter

ASP.NET

<telerik:RadListView ID="RadListView1" runat="server" OnNeedDataSource="RadListView1_NeedDataSource" ItemPlaceholderID="PlaceHolder1">
    <LayoutTemplate>
        <div class="listview-layout">
            <h2>Employee List</h2>

            <telerik:RadFilter RenderMode="Lightweight" runat="server" ID="RadFilter1" FilterContainerID="RadListView1"></telerik:RadFilter>

            <asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>
        </div>
    </LayoutTemplate>
    <ItemTemplate>
        <div class="listview-item">
            <h3><%# Eval("Name") %></h3>
            <h4><%# Eval("Team") %></h4>
        </div>
    </ItemTemplate>
</telerik:RadListView>

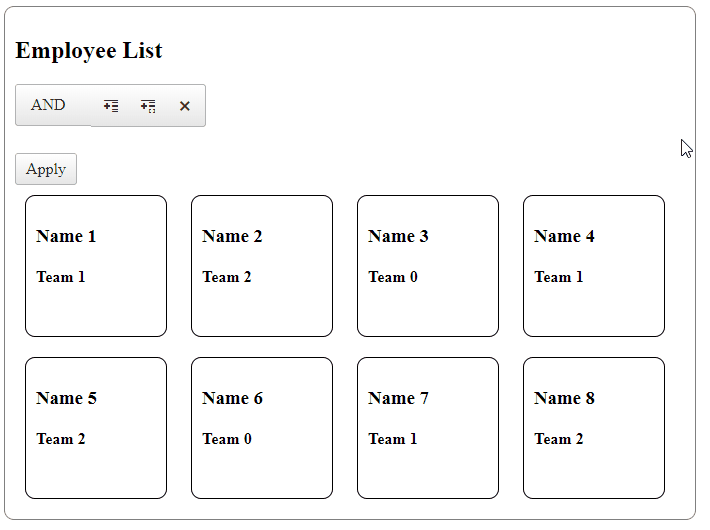

ListView Filtering

Create/Read/Update/Delete (CRUD) operations and validation

Sample Automatic CRUD operations with ListView bound to SqlDataSource component:

ASP.NET
<telerik:RadListView ID="RadListView1" runat="server" DataKeyNames="OrderID" InsertItemPosition="FirstItem"
    DataSourceID="SqlDataSource1" ItemPlaceholderID="PlaceHolder1">
    <ValidationSettings EnableValidation="true" />
    <LayoutTemplate>
        <div class="listview-layout">
            <h2>Orders List</h2>
            <telerik:RadButton ID="RadButton1" runat="server" Text="Add Order" CommandName="InitInsert"></telerik:RadButton>
            <br />
            <asp:PlaceHolder ID="PlaceHolder1" runat="server"></asp:PlaceHolder>

        </div>
    </LayoutTemplate>
    <ItemTemplate>
        <div class="listview-item">
            <b>Order ID:</b><%# Eval("OrderID") %>
            <br />
            <b>Order Date:</b> <%# String.Format("{0:MM/dd/yyyy}",Eval("OrderDate")) %>
            <br />
            <b>Freight:</b><%# Eval("Freight") %>
            <br />
            <b>Ship Name:</b><%# Eval("ShipName") %>
            <br />
            <b>Ship Country:</b><%# Eval("ShipCountry") %>
            <br />
            <telerik:RadButton ID="RadButton2" runat="server" Text="Edit" CommandName="Edit"></telerik:RadButton>
            <telerik:RadButton ID="RadButton5" runat="server" Text="Delete" CommandName="Delete"></telerik:RadButton>
        </div>
    </ItemTemplate>
    <EditItemTemplate>
        <div class="listview-item editform">
            </br> <b>Order Date:</b><telerik:RadDatePicker ID="RadDatePicker1" runat="server" DbSelectedDate='<%# Bind("OrderDate") %>'></telerik:RadDatePicker>
            </br> <b>Freight:</b><telerik:RadTextBox ID="RadTextBox1" runat="server" Text='<%# Bind("Freight") %>'></telerik:RadTextBox>
            </br> <b>Ship Name:</b><telerik:RadTextBox ID="RadTextBox2" runat="server" Text='<%# Bind("ShipName") %>'></telerik:RadTextBox>
            </br> <b>Ship Country:</b><telerik:RadTextBox ID="RadTextBox3" runat="server" Text='<%# Bind("ShipCountry") %>'></telerik:RadTextBox>
            <br />
            <telerik:RadButton ID="RadButton3" runat="server" Text="Update" CommandName="Update"></telerik:RadButton>
            <telerik:RadButton ID="RadButton4" runat="server" Text="Cancel" CommandName="Cancel"></telerik:RadButton>
        </div>
    </EditItemTemplate>
    <InsertItemTemplate>
        <div class="listview-item insertform">
            </br> <b>Order Date:</b><telerik:RadDatePicker ID="RadDatePicker1" runat="server" DbSelectedDate='<%# Bind("OrderDate") %>'></telerik:RadDatePicker>
            </br> <b>Freight:</b><telerik:RadTextBox ID="RadTextBox1" runat="server" Text='<%# Bind("Freight") %>'></telerik:RadTextBox>
            </br> <b>Ship Name:</b><telerik:RadTextBox ID="RadTextBox2" runat="server" Text='<%# Bind("ShipName") %>'></telerik:RadTextBox>
            <asp:RequiredFieldValidator ID="RequiredFieldValidator1" runat="server" ControlToValidate="RadTextBox2" ErrorMessage="Required Field"></asp:RequiredFieldValidator>
            </br> <b>Ship Country:</b><telerik:RadTextBox ID="RadTextBox3" runat="server" Text='<%# Bind("ShipCountry") %>'></telerik:RadTextBox>
            <asp:RequiredFieldValidator ID="RequiredFieldValidator2" runat="server" ControlToValidate="RadTextBox3" ErrorMessage="Required Field"></asp:RequiredFieldValidator>

            <br />
            <telerik:RadButton ID="RadButton3" runat="server" Text="Insert" CommandName="PerformInsert"></telerik:RadButton>
            <telerik:RadButton ID="RadButton4" runat="server" Text="Cancel" CommandName="Cancel"></telerik:RadButton>
        </div>
    </InsertItemTemplate>
</telerik:RadListView>

<asp:SqlDataSource ID="SqlDataSource1" runat="server"
    ConnectionString="<%$ ConnectionStrings:NorthwindConnectionString %>"
    InsertCommand="INSERT INTO [Orders] ([OrderDate], [Freight], [ShipName], [ShipCountry]) VALUES (@OrderDate, @Freight, @ShipName, @ShipCountry)"
    SelectCommand="SELECT [OrderID], [OrderDate], [Freight], [ShipName], [ShipCountry] FROM [Orders]"
    UpdateCommand="UPDATE [Orders] SET [OrderDate] = @OrderDate, [Freight] = @Freight, [ShipName] = @ShipName, [ShipCountry] = @ShipCountry  WHERE [OrderID] = @OrderID"
    DeleteCommand="DELETE FROM [Orders] WHERE [OrderID] = @OrderID"></asp:SqlDataSource>
CSS
.listview-layout {
    width: 670px;
    border: 1px solid gray;
    border-radius: 10px;
    padding: 10px;
}

.listview-item {
    height: 150px;
    width: 250px;
    display: inline-block;
    margin: 10px;
    border: 1px solid black;
    border-radius: 10px;
    padding: 10px;
}

.listview-item.editform,
.listview-item.insertform {
    height: 200px;
    width: 400px;
}

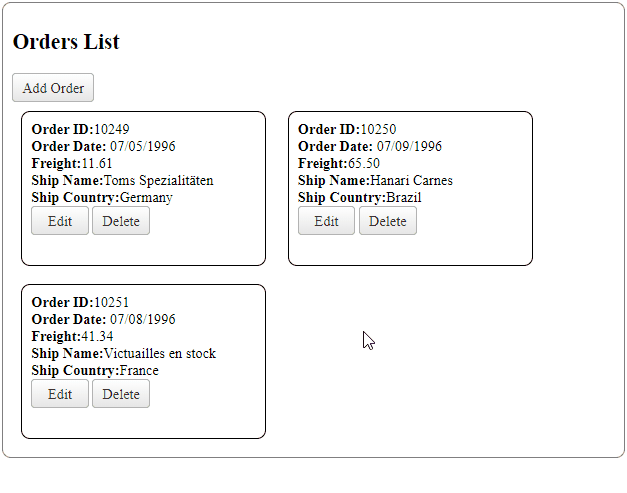

ListView CRUD and validation

WebForms ListView Overview
