Skins

The predefined layouts of RadListView, which in turn have a predefined HTML rendering, enable you to use the control's embedded skins to achieve a consistent look of RadListView with the other Telerik controls on the page.

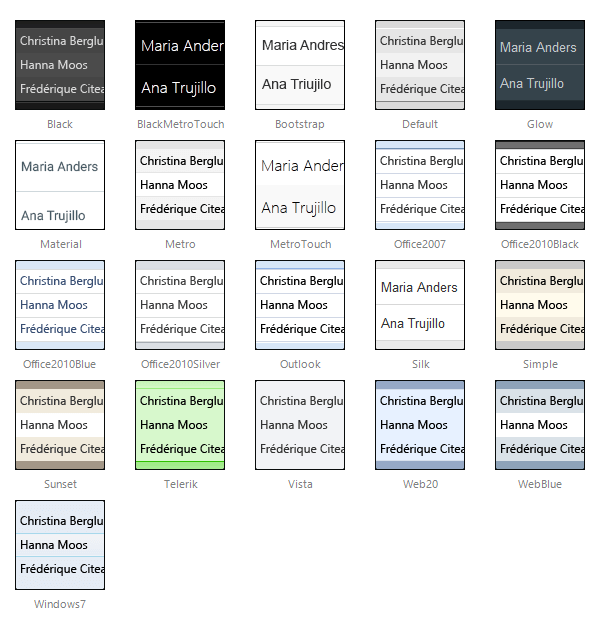

Below is a set of some of the Telerik RadListView skins: RadListView Skins

The Material skin is available for the Lightweight RenderMode only. If you experience visual issues with it, make sure your controls are not using the default Classic mode.

Changing the RadListView skin

The predefined layouts of RadListView are generated in design time and the CSS class, which carries the skin information is hard-coded in the LayoutTemplate. So, in order to change the control's skin at runtime, you need to use a binding expression for the skin-specific CSS class:

ASP.NET
	    <telerik:RadListView ID="RadListView1" runat="server">
	        <LayoutTemplate>
	            <div class="RadListView RadListView_<%#Container.Skin %>">
	                ...
	            </div>
	        </LayoutTemplate>
	    </telerik:RadListView>

In addition, after changing the Skin property value at runtime, you must rebind the control:

C#
	    RadListView1.Skin = "AnotherSkin";
	    RadListView1.Rebind();

If you change the RadListView skin manually in source code view, you must also change the skin-specific CSS class to match the new skin name (unless you are using a binding expression as shown above).

RadListView CSS classes

The CSS classes defined in the RadListView embedded skins are:

CSS classDescription
RadListViewapplied to the control's wrapper, does not depend on the skin name
RadListView_SkinNameapplied to the control's wrapper, depends on the skin name
rlvIapplied to regular items
rlvAapplied to alternating items
rlvISelapplied to selected items
rlvIEditapplied to items in edit mode
rlvIEmptyapplied to empty items in a group
rlvIGroupapplied to group items
rlvHeaderapplied to the header row of the grid predefined layout
rlvBAddapplied to the ADD button
rlvBUpdateapplied to the UPDATE button
rlvBCancelapplied to the CANCEL button
rlvBSelapplied to the SELECT button
rlvBDelapplied to the DELETE button
rlvBEditapplied to the EDIT button

Apart from the predefined RadListView layouts, the above CSS classes can also be used in custom layouts. If used correctly, they should produce a similar appearance on the respective HTML elements. For example, the rlvA CSS class always defines a background color for alternating items, so you can set this CSS class to a random element that you use as a wrapper for the alternating items - div, li, table, td, etc.

In addition, some of the above CSS classes participate in different CSS rules, depending on the element that they are applied to. For example, if the rlvA CSS class is applied to a table row element, it will set borders for nested table cells, and if it is applied to a table cell, it will set borders to it.

In order to be able to use the native RadListView CSS classes in custom layouts, you should have at least basic knowledge of CSS selectors and CSS specificity. Using Firebug to test the custom layout and any styling issues that might occur, is recommended.
