The WinForms TaskbarButton enables users to interact with the application button in the taskbar. Take a closer look!

With R1 2023, Progress Telerik UI for WinForms provides a way for the users to interact with the application button in the taskbar. When the application button on the taskbar is right-clicked, a jump list is displayed and you can execute custom actions, open hyperlinks, group the items in custom categories and show recent/frequent files.

In this blog, we will check out all the new features.

The RadTaskbarButton wraps most of the newly introduced features. Therefore, we will start by adding a RadTaskbarButton component from the toolbox.

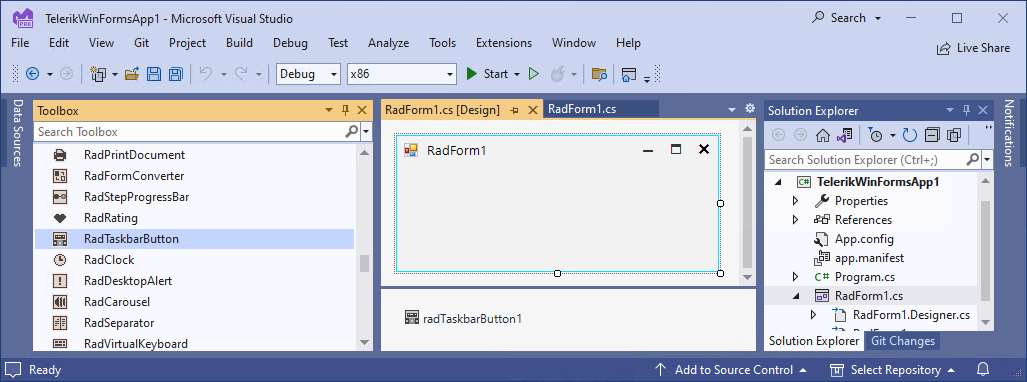

adding radtaskbarbutton from toolbox

Overlay Icon

The first feature we will preview is the overlay icon. It is a small image/badge that is positioned on top of the application icon and can be used to display to the end user a change in the application status or to notify the user that something has happened and needs to be checked.

Here is a code sample that shows how to set the overlay icon.

this.radTaskbarButton1.OverlayIcon = Resources.success;

The screenshot below is a semitransparent icon that indicates a success overlay icon over the green progress logo.

success icon as simple green checkmark. On top of the green Progress logo it is hard to see.

This specific overlay icon is almost invisible on top of the green background icon. So, when we want to add an overlay icon to the application, we need to have in mind that the overlay icon will be displayed on top of the main application icon on the taskbar, it is displayed in the corner of the main application icon and the users can use light or dark background of the windows taskbar.

To ensure that the overlay icon will be always clearly visible, it might be a good idea to use images with a solid background and maybe a border. The image below illustrates a modified overlay image positioned over the same progress logo used.

success icon with a white circle behind the green checkmark is easy to see

Now the success icon is clearly visible.

If we want a little bit more delicate status indication, we might need a little bit smaller badge. Here we should be aware that, by default, Windows stretches the overlay logo image to 16 x 16 pixels. If you need a smaller image, you can use an image with some transparent pixels like this:

Enlarged image shows pixel layout and the circle with the checkmark takes up only about 3/4 of the 16x16 square now

And the applied image on the application:

Smaller success icon with a white circle behind the green checkmark

When you no longer need to notify the user, simply set the overlay icon to null.

this.radTaskbarButton1.OverlayIcon = null;

no overly icon


Another helpful feature that will grab immediately the attention of the user is when the application button starts flashing.

The area is underlined in orange and the whole rectangled is pulsing an orange flash

There are different flash settings: flash until the application is focused, flash several times, and endless flashing until the developer stops it with code.


Progress Indication

The application can notify the user about the progress of a time-consuming operation. A great example is the Visual Studio compilation progress, which is always indicated in the application button in the taskbar.

Let’s have a look at the different progress options:

  • Normal – Progress indicated in green color, used when the program is running normally.

    rectangle is filling with green overlay from left to right to show progress, and program rectangle is underlined in green

this.radTaskbarButton1.ProgressState = TaskbarProgressState.Normal;
this.radTaskbarButton1.ProgressPercentage = 70;
  • Paused – Progress indicated in yellow color, usually used to determine a paused state.

    Overlay is half filled with yellow, and program rectangle is underlined in yellow

  • Error – Progress indicated in red color, usually used to determine an error state.

    partial overlay is red, and program rectangle is underlined in red

  • Indeterminate – In cases when you do not have information on how long will the waiting operation continue, you can display the indeterminate progress with a pulsing green indicator.

    Gradated green color fills left to right and then fades off, and this pulse is repeated, effectively showing progress is being made but not implying percentage complete. Underline is green.

When the time-consuming operation is finished, just reset the progress state to its default value:

this.radTaskbarButton1.ProgressState = TaskbarProgressState.NoProgress;

No overlay, but bottom of rectangle has a light blue line


The thumbnail preview window is shown when the mouse hovers over the application in the taskbar.

thumbnail preview of the program window when its taskbar rectangle is hovered

Preview Image

The main part of the thumbnail is the thumbnail preview image. It is a small screenshot of the form. If you need to focus on a specific control, you can set it as a ClipControl and it will be used in the thumbnail preview. Here is how to select the RadGridView control in the clip rectangle:

this.radTaskbarButton1.ClipControl = this.radGridView1;

thumbnail preview of the program window more zoomed in when its taskbar rectangle is hovered

Thumbnail Buttons

The thumbnail hosts a thumbnail toolbar which consists of thumbnail buttons that are used to interact with the application.

Hover preview has small toolbar with green checkmark, caution sign, no entry symbol, and exclamation point on red

The design time experience is straightforward. You can create and customize thumbnail buttons with ease in the designer surface and attach image resources from ImageList.

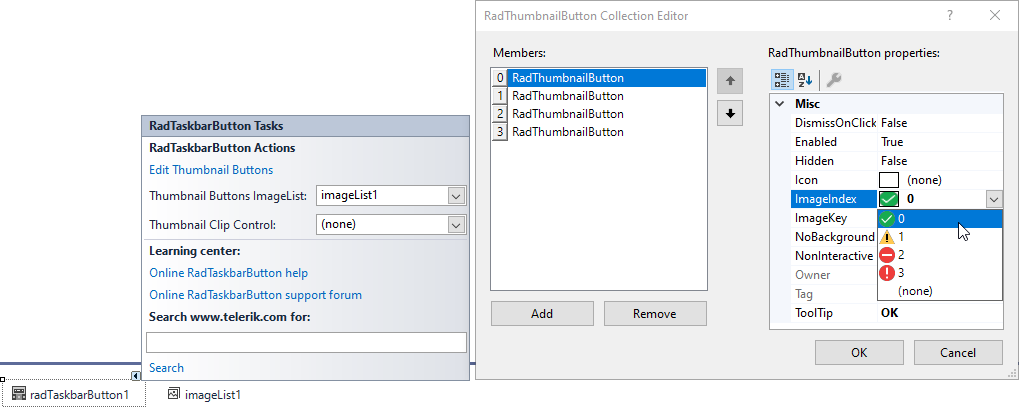

RadTaskbarButton Action bar tasks can set icons and actions

Keep in mind that if you use ImageList to hold the images for the thumbnail buttons, is it a good idea to set the Image Bit Depth to 32. Otherwise, the image corners might look blurry or pixelated:

setting Image Bit Depth to 32

Note that due to the native windows API restrictions, the thumbnail buttons can be added to an application only once. Thumbnail buttons cannot be removed once they are applied to the application. Instead, the buttons can be hidden, which makes them non-visible in the thumbnail toolbar. When you need them you can make them visible.

To get notified when a thumbnail button has been clicked, simply subscribe to the ThumbnailButtonClick event of the RadTaskbarButton. In the event arguments, the ThumbnailButton instance will be passed as a parameter.

private void RadTaskbarButton1_ThumbnailButtonClick(object sender, ThumbnailButtonEventArgs e)
    Bitmap img = new Bitmap(this.imageList1.Images[e.Button.ImageIndex]);
    this.Icon = Icon.FromHandle(img.GetHicon());

Thumbnail Tooltip

The thumbnail tooltip is a usual Windows tooltip that is displayed above the thumbnail preview when you keep the mouse over the application button.

this.radTaskbarButton1.ThumbnailTooltip = "This is thumbnail tooltip text";

Tooltip in a white box with black text reads this is thumbnail tooltip text


The RadTaskbarManager class provides APIs to interact with the taskbar button of the application. The RadTaskbarButton class utilizes them and provides a developer-friendly way to consume the most meaningful of them.

For example, if you want to use only the overlay icon and do not want to create and add the RadTaskbarButton component in the designer, you can use the static SetOverlayIcon method:

RadTaskbarManager.SetOverlayIcon(this.Handle, Resources.success-updated);

To remove the icon pass null as a parameter:

RadTaskbarManager.SetOverlayIcon(this.Handle, null);

A full list of the RadTaskbarManager methods is available in this TaskBarManager documentation article.

Jump List

A JumpList is a list of associated files, actions or links associated with your application.

RadJumpList radJumpList = new RadJumpList("My Application", this.Handle);

When all the contents are added or updated in the jump list, we need to call the Refresh method in order to update the jump list and taskbar.


Jump Tasks

The items in the default Tasks category are represented by the JumpLink class. Jump Links (tasks) are action items that can open a hyperlink, open the program with given arguments, start an application or open a file.


Opens a hyperlink in the default browser when clicked.

Open executable files

Start the given program.

Open a File Using Its Default Open Program

Open a file using the default program in windows.

Start the Same Program with the Given Parameters

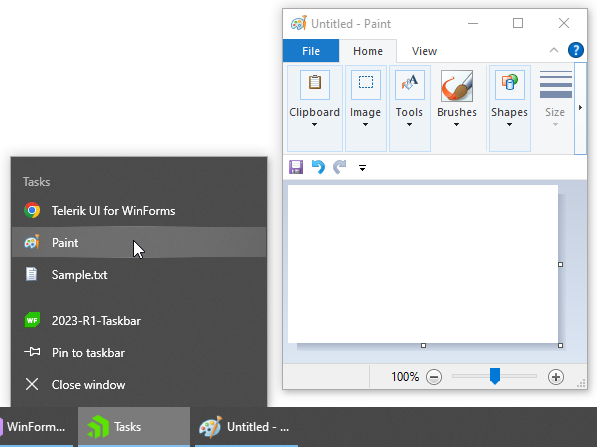

from taskbar, clicking Paint opens the Paint program

Jump Items

The jump item represents a file with a specified file path.

Note that the file extension must be associated with the application, otherwise an invalid operation exception will occur: “The file type is not registered with this application.”

Custom Categories

The JumpItems and JumpLinks can be organized into groups called custom categories.

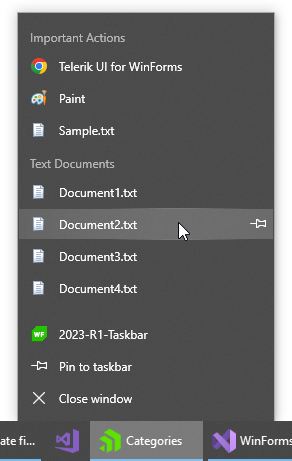

Menu has submenu categories Important Actions and Text Documents, with more options under each

JumpListCategory actionsCategory = new JumpListCategory("Important Actions");
JumpLink taskLink = new JumpLink("", "Telerik UI for WinForms");

JumpLink taskApp = new JumpLink(Path.Combine(Environment.SystemDirectory, "mspaint.exe"), "Paint");

JumpLink taskFile = new JumpLink(@"C:\Temp\Sample.txt", "Sample.txt");


JumpListCategory documentsCategory = new JumpListCategory("Text Documents");
for (int i = 1; i <= 4; i++)
    JumpItem jumpItem = new JumpItem($"Document{i}.txt");


Recent and Frequent Categories

The recent and frequent categories are well known from popular programs such as Visual Studio. Similar to the jump items, these categories require a specific file type to be associated with the application to make it possible to see the items in these categories.

The KnownCategory property of RadJumpList determines whether to display recent, frequent items or none of them.

radJumpList.KnownCategory = JumpListKnownCategory.Recent;

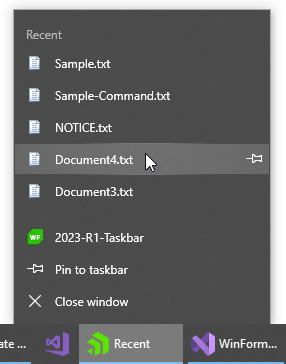

Recent items are shown
