    RadControls for ASP .NET AJAX version

    Q2 2010 and later
    .NET version

    3.5 and late
    Visual Studio version

    2008 and later
    Programming language

    C#, VB
    Browser support

    all browsers supported by RadControls for ASP .NET AJAX

    The attached sample project demonstrates how to use the cascading RadComboBoxes into the RadGrid's edit item. When the RadGrid's item is in Edit mode three RadComboBoxes are rendered and the list in the next combo is populated after selecting a value in the previous:

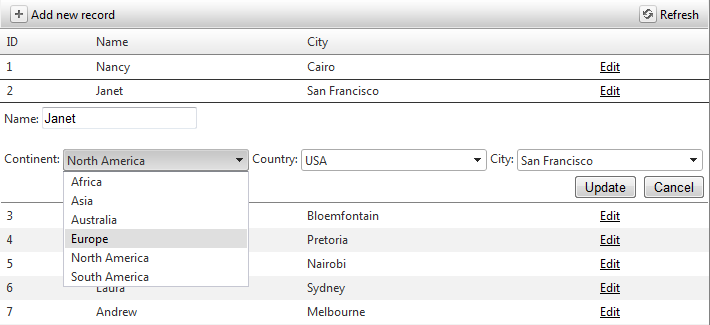

    Step 1: Select Continent

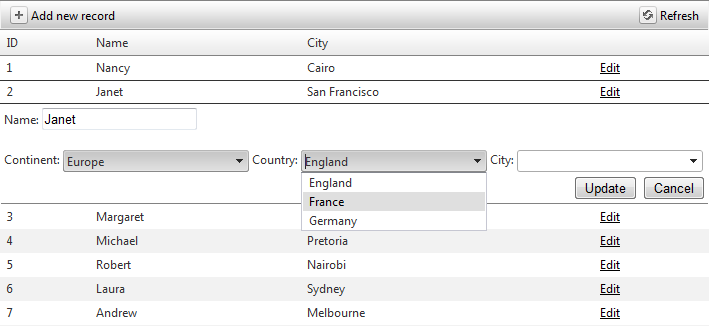

    Step 2: Select Country

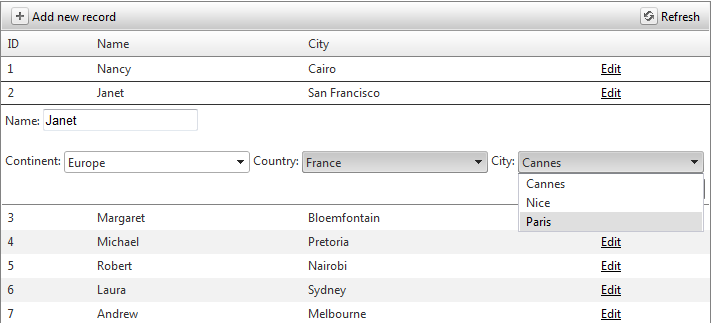

    Step 3: Select City

    The cascading RadComboBoxes are added into the UserControl which is placed into the RadGrid.MasterTableView.FormTemplate:
    <EditFormSettings EditFormType="Template">
           <user:MyUserControl runat="server" ID="UserControl1" />
             <td align="right" colspan="2">

    <asp:Label ID="Label1" runat="server" AssociatedControlID="RadComboBox1">Continent:</asp:Label>
     <telerik:RadComboBox ID="RadComboBox1" runat="server" Width="186px" CssClass="ComboBox_Continents" OnClientSelectedIndexChanging="LoadCountries" OnItemsRequested="RadComboBox1_ItemsRequested" />
     <asp:Label ID="Label2" runat="server" AssociatedControlID="RadComboBox2">Country:</asp:Label>
    <telerik:RadComboBox ID="RadComboBox2" runat="server" Width="186px" CssClass="ComboBox_Countries" OnClientSelectedIndexChanging="LoadCities" OnClientItemsRequested="ItemsLoaded" OnItemsRequested="RadComboBox2_ItemsRequested" />
    <asp:Label ID="Label3" runat="server" AssociatedControlID="RadComboBox3">City:</asp:Label>
     <telerik:RadComboBox ID="RadComboBox3" runat="server" Width="186px" CssClass="ComboBox_Cities" OnClientItemsRequested="ItemsLoaded" OnItemsRequested="RadComboBox3_ItemsRequested" />
    When the RadGrid's edit form is loaded the user RadComboBoxes are populated with data and the appropriate items are selected:
    protected void Page_Load(object sender, EventArgs e)
         int cityId = Convert.ToInt32(((this.Parent.Parent.NamingContainer as GridEditFormItem).ParentItem.DataItem as DataRowView).Row["City"]);
         City city = GetCityById(cityId);
         Country country = GetCountryById(city.CounryID);
         Continent continent = GetContinentById(country.CountinentID);
         RadComboBox1.SelectedValue = continent.ID.ToString();
         RadComboBox2.SelectedValue = country.ID.ToString();
         RadComboBox3.SelectedValue = city.ID.ToString();

    On the Insert/Update command of the RadGrid you could get the city Id from the last RadCombobox by using the following code snippet:
    GridEditFormItem item = e.Item as GridEditFormItem;
    int cityId = Convert.ToInt32((item.FindControl("UserControl1").FindControl("radComboBox3") as RadComboBox).SelectedValue);
