OnClientTileDataBound

This article demonstrates how the OnClientTileDataBound event can be used to further configure the Tile elements via its client-side API.

The OnClientTileDataBound event is raised when the tile is bound to the fetched data.

The event handler receives two arguments:

1. the RadTileList object that fired the event

2. an event arguments object that exposes the following methods

OnClientTileDataBound event arguments object

Name	Return type	Arguments	Description
get_dataItem()	object		Gets the data source object.
get_tile()	object		Gets the client-side object of the bound tile.

Example 1 demonstrates how to use the OnClientTileDataBound event to configure the PeekTemplateSettings client-side. The result of the sample code is shown in Figure 1.

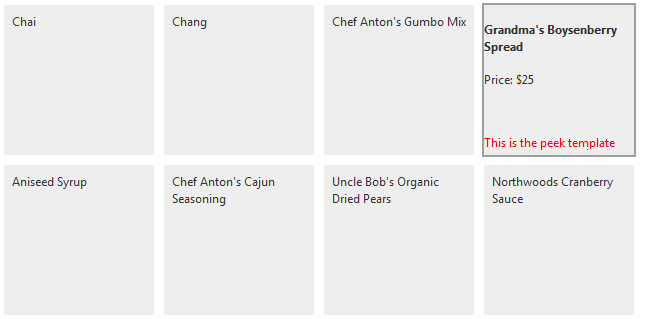

Figure 1: Shows the configured Peek Template

Example 1: Using OnClientTileDataBound event to define Peek Template settings.

ASP.NET

<telerik:RadClientDataSource runat="server" ID="RadClientDataSource1" PageSize="8" AllowPaging="true">
	<DataSource>
		<WebServiceDataSourceSettings BaseUrl="http://demos.kendoui.com/service/">
			<Select Url="products" DataType="JSONP" />
		</WebServiceDataSourceSettings>
	</DataSource>
</telerik:RadClientDataSource>

<telerik:RadTileList RenderMode="Lightweight" runat="server" ID="RadTileList1" Height="400"
	ClientDataSourceID="RadClientDataSource1" OnClientTileDataBound="OnClientTileDataBound">
	<DataBindings>
		<CommonTileBinding TileType="RadTextTile" DataNameField="ProductID" />
		<TextTileBinding DataTextField="ProductName" />
		<ClientTilePeekTemplate>
			<h4>#=ProductName#</h4>
            <p>Price: $#=UnitPrice#</p>
			<br/>
			<br/>
			<span style="color:red;">This is the peek template</span>
		</ClientTilePeekTemplate>
	</DataBindings>
</telerik:RadTileList>


<script type="text/javascript">
	function OnClientTileDataBound(sender, args) {
		var tile = args.get_tile();

		tile.set_peekShowInterval(0);
		tile.set_peekCloseDelay(0);
		tile.set_showPeekTemplateOnMouseOver(true);
		tile.set_hidePeekTemplateOnMouseOut(true);
		tile.clearPeekShowInterval();
	}
</script>

See Also

• Client-side Data Binding
