Resource Type Collection Editor

The Resource Type Collection Editor lets you define custom resources for additional information you add to appointments. The resources you define in the Resource Type Collection Editor act like enumerated values, with a set of possible values that users can choose from a drop-down list.

To display the Resource Type Collection Editor, open the property pane for RadScheduler and click the ellipsis button on the ResourceTypes property.

The resources you define in the Resource Type Collection Editor are not used if RadScheduler gets its data from adata provider. When using a data provider, RadScheduler gets information about the available data from the provider instead.

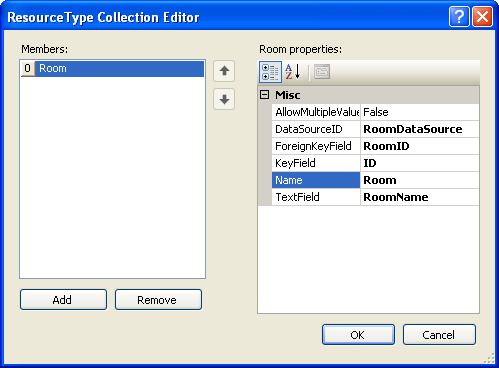

Resource Type Collection Editor

  • Click the Add button to append a new resource type to the collection.

  • Use the up and down arrow buttons to rearrange the resource types in the collection. This order determines the order the resources appear in the appointment edit form.

  • Select a resource type and click the Remove button to delete it from the list.

  • Select individual resource types to change the properties that tell the scheduler where to look up information about the resource type.

    Resource Type Collection Editor

For each resource type,

  • AllowMultipleValues indicates whether an appointment can select multiple values for the resource type, as opposed to a single instance of this resource type.

Assigning multiple resources of the same type to an appointment requires maintaining a many-to-many relationship between resources and appointments. Because of this, AllowMultipleValues has no effect when binding to declarative data sources. To use multiple values, the scheduler must use a custom provider that is capable of storing the relationships.

  • DataSourceID is the ID attribute of a DataSource component that the scheduler uses to look up possible values that can be assigned to resources of this type.

  • ForeignKeyField indicates the name of the column in the Appointments data source that is used to link a particular appointment and resource. This column is usually constrained by a foreign key that points to the primary key of the Resource data source.

  • KeyField is the field in the data source identified by DataSourceID that uniquely identifies a resource value.

  • Name is the Name of the Resource Type. It that appears in the appointment edit form to prompt users to enter a resource of this type.

  • TextField is the field in the data source identified by DataSourceID that holds a string representation of the resource value.
