Data Binding Overview

RadGrid is a powerful component that displays data obtained from a database or other data source. The data is presented in tabular view and can be further enhanced with templates or other customization options.

There are 3 ways to bind the grid to a data source:

  • Declarative Binding in the mark-up via the DataSourceID property - By using declarative data source controls (introduced in ASP.NET 2.0), you can bind the grid declaratively, with no coding necessary. This mode also supports Automatic CRUD operations.

  • Programmatic Binding in the code-behind via the DataSource property and using the NeedDataSource event - RadGrid calls this event each time it needs a data source query like Paging, Sorting, Filtering, Grouping, etc. This approach is convenient when you have the data source present in C# or VB code, for instance a List of Class or Objects.

  • Client-Side Binding - RadGrid provides a variety of options here like RadClientDataSource, WebServices, PageMethods, local JSON objects, etc. More information you can find in our dedicated Client-Side Binding articles and demos.

It is highly recommended to avoid using the DataBind() method:
How to bind RadGrid properly on server-side

Here is a basic runnable example which you can directly copy-paste to your project:

ASP.NET
<telerik:RadGrid ID="RadGrid1" runat="server"
    OnNeedDataSource="RadGrid1_NeedDataSource">
</telerik:RadGrid>
C#
protected void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    (sender as RadGrid).DataSource = Enumerable.Range(1, 6).Select(x => new
    {
        ID = x,
        Name = "Item " + x
    });
}

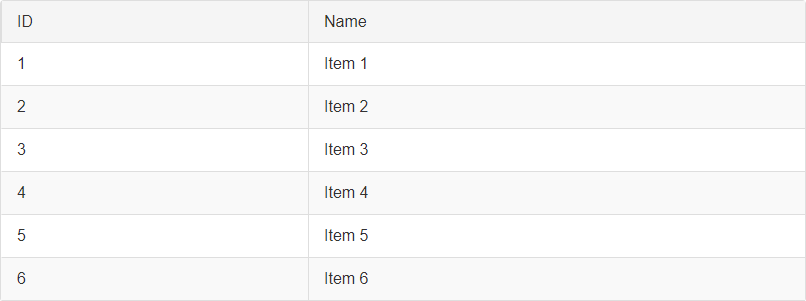

Resulting to this:

Grid Data Binding Basics 1

Hierarchical grids

In a hierarchical grid, it is logical for the detail tables to be bound separately from their parent tables, using a separate data source. When binding detail tables, it is also a common requirement to manage the relationship of the records in the detail data source to the parent table so that the child items are loaded depending on the parent item.

There are two methods for managing this relationship:

Programmatic Source Types

When binding the grid by setting the DataSource property in the NeedDataSource event handler, you can use an instance of any of the following types:

  • DataSet , DataTable , or DataView
  • Array of DataRow
  • Any object collection that implements the IListSource , IList , IEnumerable , or ICustomTypeDescriptor interface.

Here is another basic runnable example with dummy DataTable which you can once again directly copy-paste to your project:

ASP.NET
<telerik:RadGrid ID="RadGrid1" runat="server"
    OnNeedDataSource="RadGrid1_NeedDataSource">
</telerik:RadGrid>
C#
protected void RadGrid1_NeedDataSource(object sender, GridNeedDataSourceEventArgs e)
{
    (sender as RadGrid).DataSource = GetGridSource();
}
private DataTable GetGridSource()
{
    DataTable dataTable = new DataTable();

    DataColumn column = new DataColumn();
    column.DataType = Type.GetType("System.Int32");
    column.ColumnName = "OrderID";
    dataTable.Columns.Add(column);

    column = new DataColumn();
    column.DataType = Type.GetType("System.DateTime");
    column.ColumnName = "OrderDate";
    dataTable.Columns.Add(column);

    column = new DataColumn();
    column.DataType = Type.GetType("System.Decimal");
    column.ColumnName = "Freight";
    dataTable.Columns.Add(column);

    column = new DataColumn();
    column.DataType = Type.GetType("System.String");
    column.ColumnName = "ShipName";
    dataTable.Columns.Add(column);

    column = new DataColumn();
    column.DataType = Type.GetType("System.String");
    column.ColumnName = "ShipCountry";
    dataTable.Columns.Add(column);

    DataColumn[] PrimaryKeyColumns = new DataColumn[1];
    PrimaryKeyColumns[0] = dataTable.Columns["OrderID"];
    dataTable.PrimaryKey = PrimaryKeyColumns;

    for (int i = 0; i <= 8; i++)
    {
        DataRow row = dataTable.NewRow();
        row["OrderID"] = i + 1;
        row["OrderDate"] = DateTime.Now;
        row["Freight"] = (i + 1) + (i + 1) * 0.1 + (i + 1) * 0.01;
        row["ShipName"] = "Name " + (i + 1);
        row["ShipCountry"] = "Country " + (i + 1);

        dataTable.Rows.Add(row);
    }

    return dataTable;
}

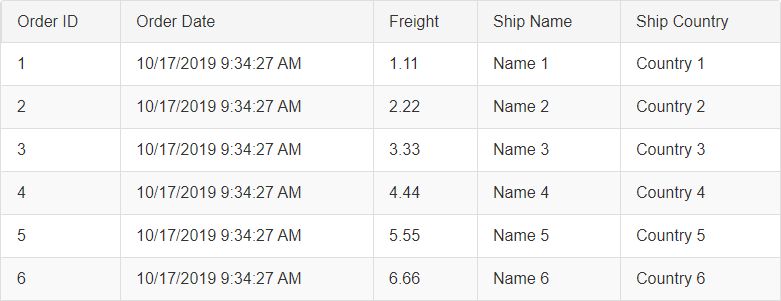

Resulting to this:

Grid Data Binding Basics 2

Bindable Property Types

RadGrid understands the following bindable property types:

  • All primitive types - bool, byte, sbyte, char, short, ushort, int, uint, long, ulong, decimal, double, float, DateTime, etc.

  • GUID

  • String

  • TimeSpan

  • Enum types

  • Nullable types

RadGrid uses the static method RadGrid.IsBindableType() to determine if the property of an object can be bound.
