using declarative parameter value in code behind

[mirza baig]

i am using Hierarchial Grid(3 levels).
in the first level i am using session parameter to fetch the records .
for the second level i am passing the first level DataKeyName as selectparameter  to fetch records. i have attached the screenshot of the Grid.

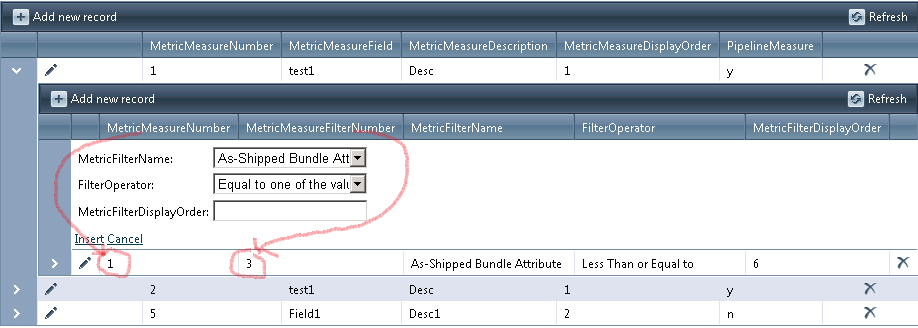

i have written insertcommand for the second level where i need MetricMeasureNumber to add new record .
in insertcommand i have used





GridEditFormInsertItem item = (GridEditFormInsertItem)e.Item;

MetricMeasureNumber =



Convert.ToInt32((item["MetricMeasureNumber"].Controls[0] as TextBox).Text);

to get the MetricMeasureNumber,but it is giving null,

please share your experiences,
thanks in advance.



[Princy]

Hello Mirza,

Try the following code snippet and see if it works.

C#:

protected void RadGrid1_InsertCommand(object sender, GridCommandEventArgs e)
   {
       GridEditFormInsertItem item = (GridEditFormInsertItem)e.Item;
       GridTableView childtable=(GridTableView)item.OwnerTableView;
       GridDataItem parentitem = (GridDataItem)childtable.ParentItem;
       Int32 MetricMeasureNumber =Convert.ToInt32(parentitem["MetricMeasureNumber"].Text);

   }

Thanks,
Princy.

[mirza baig]

Hi princy ,
thanks for your post, it was really helpful
this is how i traced MetricMeasureNumber

string





strMetricMeasureNumber = parentItem.OwnerTableView.DataKeyValues[parentItem.ItemIndex]["MetricMeasureNumber"

].ToString();

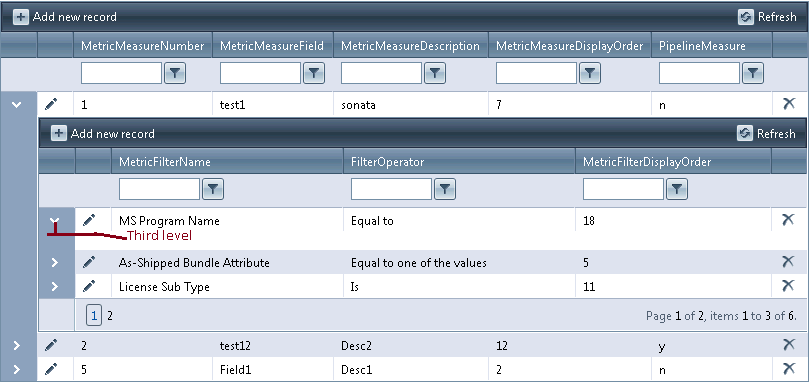

Now ,one thing what i want is third level for the same grid.Please find the attachment for 3rd level.
below is my .aspx page code.in 3rd level i m not getting any data.in 3rd level i am trying to bind Datasource to a ListBox.

<





telerik:RadGrid ID="RadGrid1" runat="server" GridLines="None" DataSourceID

="SqlDataSource1"









Skin="WebBlue" ShowStatusBar="True" AutoGenerateColumns="False" PageSize

="3"









AllowSorting="True" AllowPaging="True" AllowAutomaticDeletes="True" AllowAutomaticInserts

="True"









AllowAutomaticUpdates="True" OnUpdateCommand="RadGrid1_UpdateCommand" OnInsertCommand

="RadGrid1_InsertCommand"









OnItemInserted="RadGrid1_ItemInserted" OnItemDeleted="RadGrid1_ItemDeleted" OnItemUpdated

="RadGrid1_ItemUpdated"









AllowFilteringByColumn

="True">









<PagerStyle Mode="NumericPages"></PagerStyle

>









<MasterTableView AutoGenerateColumns="False" DataKeyNames="MetricMeasureNumber" DataSourceID

="SqlDataSource1"









CommandItemDisplay="Top" Name

="MetricMeasure">









<DetailTables

>









<telerik:GridTableView DataKeyNames="MetricMeasureFilterNumber" DataSourceID

="SqlDataSource2"









Width="100%" runat="server" CommandItemDisplay="Top" Name

="MetricMeasureFilter">









<ParentTableRelation

>









<telerik:GridRelationFields DetailKeyField="MetricMeasureNumber" MasterKeyField="MetricMeasureNumber"

/>









</ParentTableRelation

>









<DetailTables

>









<telerik:GridTableView DataKeyNames="FilterNumber" DataSourceID

="SqlDataSource5"









Width="100%" runat="server" CommandItemDisplay="Top" Name

="MetricMeasureFilterValue">









<ParentTableRelation

>









<telerik:GridRelationFields DetailKeyField="MetricMeasureFilterNumber" MasterKeyField="MetricMeasureNumber"

/>









</ParentTableRelation

>









<CommandItemSettings ExportToPdfText="Export to Pdf"></CommandItemSettings

>









<RowIndicatorColumn FilterControlAltText

="Filter RowIndicator column">









</RowIndicatorColumn

>









<ExpandCollapseColumn FilterControlAltText

="Filter ExpandColumn column">









</ExpandCollapseColumn

>









<Columns

>









<telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName

="EditCommandColumn1">









<HeaderStyle Width="20px"

/>









<ItemStyle CssClass="MyImageButton"

/>









</telerik:GridEditCommandColumn>













<telerik:GridTemplateColumn HeaderText="Filter Value" UniqueName

="LookupTable">









<ItemTemplate>













<asp:ListBox ID="lstbxFilterValue" runat="server" DataSourceID="SqlDataSource5" DataTextField

="LookupTableName"









DataValueField="FilterNumber"></asp:ListBox

>









</ItemTemplate

>









<EditItemTemplate

>









<asp:ListBox ID="lstbxFilterValue" runat="server" DataSourceID="SqlDataSource5"></asp:ListBox

>









</EditItemTemplate

>









</telerik:GridTemplateColumn

>









<telerik:GridButtonColumn ConfirmText="Delete this product?" ButtonType

="ImageButton"









CommandName="Delete" Text="Delete" UniqueName

="DeleteColumn1">









<HeaderStyle Width="20px"

/>









<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton"

/>









</telerik:GridButtonColumn

>









</Columns

>









<EditFormSettings

>









<EditColumn FilterControlAltText

="Filter EditCommandColumn column">









</EditColumn

>









</EditFormSettings

>









</telerik:GridTableView

>









</DetailTables

>









<CommandItemSettings ExportToPdfText="Export to Pdf"></CommandItemSettings

>









<RowIndicatorColumn FilterControlAltText

="Filter RowIndicator column">









</RowIndicatorColumn

>









<ExpandCollapseColumn Visible="True" FilterControlAltText

="Filter ExpandColumn column">









</ExpandCollapseColumn

>









<Columns

>









<telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName

="EditCommandColumn1">









<HeaderStyle Width="20px"

/>









<ItemStyle CssClass="MyImageButton"

/>









</telerik:GridEditCommandColumn

>









<telerik:GridBoundColumn SortExpression="MetricMeasureNumber" HeaderText

="MetricMeasureNumber"









ReadOnly="true" HeaderButtonType="TextButton" DataField

="MetricMeasureNumber"









UniqueName="MetricMeasureNumber" Visible

="false">









</telerik:GridBoundColumn

>









<telerik:GridBoundColumn SortExpression="MetricMeasureFilterNumber" HeaderText

="MetricMeasureFilterNumber"









HeaderButtonType="TextButton" ReadOnly="true" DataField

="MetricMeasureFilterNumber"









UniqueName="MetricMeasureFilterNumber" Visible

="false">









</telerik:GridBoundColumn

>









<telerik:GridTemplateColumn HeaderText="MetricFilterName" UniqueName

="MetricFilterName">









<ItemTemplate

>









<asp:Label ID="lblMetricFilterName" Width="155px" runat="server" Text='<%# Eval("FilterName") %>'></asp:Label

>









</ItemTemplate

>









<EditItemTemplate

>









<asp:DropDownList ID="ddlMetricFilterName" Width="155px" runat="server" DataTextField

="FilterName"









DataValueField="FilterNumber" DataSourceID

="SqlDataSource3">









</asp:DropDownList

>









</EditItemTemplate

>









</telerik:GridTemplateColumn

>









<telerik:GridTemplateColumn HeaderText="FilterOperator" UniqueName

="FilterOperator">









<ItemTemplate

>









<asp:Label ID="lblFilterOperator" Width="155px" runat="server" Text='<%# Eval("FilterOperator") %>'></asp:Label

>









</ItemTemplate

>









<EditItemTemplate

>









<asp:DropDownList ID="ddlFilterOperator" Width="155px" runat="server" DataTextField

="FilterOperator"









DataValueField="FilterOperatorNumber" DataSourceID

="SqlDSddlFilterOperator">









</asp:DropDownList

>









</EditItemTemplate

>









</telerik:GridTemplateColumn

>









<telerik:GridBoundColumn SortExpression="MetricFilterDisplayOrder" HeaderText

="MetricFilterDisplayOrder"









HeaderButtonType="TextButton" DataField="MetricFilterDisplayOrder" UniqueName

="MetricFilterDisplayOrder">









</telerik:GridBoundColumn

>









<telerik:GridBoundColumn SortExpression="ShowFilterValue" HeaderText

="ShowFilterValue"









HeaderButtonType="TextButton" ReadOnly="true" DataField="ShowFilterValue" UniqueName

="ShowFilterValue"









Visible

="false">









</telerik:GridBoundColumn

>









<telerik:GridButtonColumn ConfirmText="Delete this product?" ButtonType

="ImageButton"









CommandName="Delete" Text="Delete" UniqueName

="DeleteColumn1">









<HeaderStyle Width="20px"

/>









<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton"

/>









</telerik:GridButtonColumn

>









</Columns

>









<EditFormSettings

>









<EditColumn FilterControlAltText

="Filter EditCommandColumn column">









</EditColumn

>









</EditFormSettings

>









</telerik:GridTableView

>









</DetailTables

>









<CommandItemSettings ExportToPdfText="Export to Pdf"></CommandItemSettings

>









<RowIndicatorColumn FilterControlAltText

="Filter RowIndicator column">









</RowIndicatorColumn

>









<ExpandCollapseColumn Visible="True" FilterControlAltText

="Filter ExpandColumn column">









</ExpandCollapseColumn

>









<Columns

>









<telerik:GridEditCommandColumn ButtonType="ImageButton" UniqueName

="EditCommandColumn2">









<HeaderStyle Width="20px"

/>









<ItemStyle CssClass="MyImageButton"

/>









</telerik:GridEditCommandColumn

>









<telerik:GridBoundColumn DataField="MetricMeasureNumber" DataType

="System.Int32"









HeaderText="MetricMeasureNumber" ReadOnly="True" SortExpression

="MetricMeasureNumber"









UniqueName="MetricMeasureNumber" Visible

="true">









</telerik:GridBoundColumn

>









<telerik:GridBoundColumn DataField="MetricMeasureField" HeaderText

="MetricMeasureField"









SortExpression="MetricMeasureField" UniqueName

="MetricMeasureField">









</telerik:GridBoundColumn

>









<telerik:GridBoundColumn DataField="MetricMeasureDescription" HeaderText

="MetricMeasureDescription"









SortExpression="MetricMeasureDescription" UniqueName

="MetricMeasureDescription">









</telerik:GridBoundColumn

>









<telerik:GridBoundColumn DataField="MetricMeasureDisplayOrder" DataType

="System.Int32"









HeaderText="MetricMeasureDisplayOrder" SortExpression

="MetricMeasureDisplayOrder"









UniqueName

="MetricMeasureDisplayOrder">









</telerik:GridBoundColumn

>









<telerik:GridBoundColumn DataField="PipelineMeasure" HeaderText

="PipelineMeasure"









SortExpression="PipelineMeasure" UniqueName

="PipelineMeasure">









</telerik:GridBoundColumn

>









<telerik:GridButtonColumn ConfirmText="Delete this product?" ButtonType

="ImageButton"









CommandName="Delete" Text="Delete" UniqueName

="DeleteColumn1">









<HeaderStyle Width="20px"

/>









<ItemStyle HorizontalAlign="Center" CssClass="MyImageButton"

/>









</telerik:GridButtonColumn

>









</Columns

>









<EditFormSettings

>









<EditColumn FilterControlAltText

="Filter EditCommandColumn column">









</EditColumn

>









</EditFormSettings

>









</MasterTableView

>









<FilterMenu EnableImageSprites

="False">









</FilterMenu

>









<HeaderContextMenu CssClass

="GridContextMenu GridContextMenu_Office2007">









</HeaderContextMenu

>









</telerik:RadGrid

>









<asp:SqlDataSource ID="SqlDataSource1" runat="server" ConflictDetection

="CompareAllValues"









ConnectionString="<%$ ConnectionStrings:EAFBREWIP_Con %>" DeleteCommand

="DELETE FROM [MetricMeasure] WHERE [MetricMeasureNumber] = @original_MetricMeasureNumber"









InsertCommand

="INSERT INTO [MetricMeasure] ([MetricNumber],[MetricMeasureField], [MetricMeasureDescription], [MetricMeasureDisplayOrder], [PipelineMeasure]) VALUES (@sesprmMetricNumber, @MetricMeasureField, @MetricMeasureDescription, @MetricMeasureDisplayOrder, @PipelineMeasure)"









OldValuesParameterFormatString="original_{0}" SelectCommand

="SELECT [MetricMeasureNumber], [MetricMeasureField], [MetricMeasureDescription], [MetricMeasureDisplayOrder],[PipelineMeasure] FROM [MetricMeasure] where MetricNumber =@sesprmMetricNumber"









UpdateCommand

="UPDATE [MetricMeasure] SET [MetricMeasureField] = @MetricMeasureField, [MetricMeasureDescription] = @MetricMeasureDescription, [MetricMeasureDisplayOrder] = @MetricMeasureDisplayOrder, [PipelineMeasure] = @PipelineMeasure WHERE [MetricMeasureNumber] = @original_MetricMeasureNumber AND [MetricMeasureField] = @original_MetricMeasureField AND [MetricMeasureDescription] = @original_MetricMeasureDescription AND [MetricMeasureDisplayOrder] = @original_MetricMeasureDisplayOrder AND [PipelineMeasure] = @original_PipelineMeasure">









<SelectParameters

>









<asp:SessionParameter Name="sesprmMetricNumber" DbType="Int32" SessionField="MetricNumber"

/>









</SelectParameters

>









<DeleteParameters

>









<asp:Parameter Name="original_MetricMeasureNumber" Type="Int32"

/>









</DeleteParameters

>









<UpdateParameters

>









<asp:Parameter Name="MetricMeasureField" Type="String"

/>









<asp:Parameter Name="MetricMeasureDescription" Type="String"

/>









<asp:Parameter Name="MetricMeasureDisplayOrder" Type="String"

/>









<asp:Parameter Name="PipelineMeasure" Type="String"

/>









<asp:Parameter Name="original_MetricMeasureNumber" Type="Int32"

/>









<asp:Parameter Name="original_MetricMeasureField" Type="String"

/>









<asp:Parameter Name="original_MetricMeasureDescription" Type="String"

/>









<asp:Parameter Name="original_MetricMeasureDisplayOrder" Type="String"

/>









<asp:Parameter Name="original_PipelineMeasure" Type="String"

/>









</UpdateParameters

>









<InsertParameters

>









<asp:SessionParameter Name="sesprmMetricNumber" DbType="Int32" SessionField="MetricNumber"

/>









<asp:Parameter Name="MetricMeasureField" Type="String"

/>









<asp:Parameter Name="MetricMeasureDescription" Type="String"

/>









<asp:Parameter Name="MetricMeasureDisplayOrder" Type="Int32"

/>









<asp:Parameter Name="PipelineMeasure" Type="String"

/>









</InsertParameters

>









</asp:SqlDataSource

>









<asp:SqlDataSource ID="SqlDataSource2" runat="server" ConnectionString="<%$ ConnectionStrings:EAFBREWIP_Con%>

"









DeleteCommand

="DELETE FROM [MetricMeasureFilter] WHERE [MetricMeasureFilterNumber] = @original_MetricMeasureFilterNumber"









OldValuesParameterFormatString="original_{0}" SelectCommand

="select mflt.FilterName,mmf.MetricFilterNumber,mmf.FilterOperatorNumber,mmf.MetricMeasureFilterNumber,mmf.MetricMeasureNumber, fo.FilterOperator, mmf.MetricFilterDisplayOrder, fo.ShowFilterValue,mmf.MetricMeasureNumber from MetricMeasureFilter mmf inner join Map_Filter_LookupTable mflt on mmf.MetricFilterNumber = mflt.FilterNumber inner join FilterOperator fo on mmf.FilterOperatorNumber = fo.FilterOperatorNumber where mmf.MetricMeasureNumber = @MetricMeasureNumber">









<SelectParameters

>









<asp:Parameter Name="MetricMeasureNumber" Type="Int32"

/>









</SelectParameters

>









<DeleteParameters

>









<asp:Parameter Name="original_MetricMeasureFilterNumber" Type="Int32"

/>









</DeleteParameters>













<InsertParameters

>









<asp:Parameter Name="MetricMeasureNumber" Type="Int32"

/>









<asp:Parameter Name="MetricFilterNumber" Type="Int32"

/>









<asp:Parameter Name="FilterOperatorNumber" Type="Int32"

/>









<asp:Parameter Name="MetricFilterDisplayOrder" Type="String"

/>









</InsertParameters>













</asp:SqlDataSource>













<asp:SqlDataSource ID="SqlDSddlFilterOperator" runat="server" ConnectionString="<%$ ConnectionStrings:EAFBREWIP_Con%>

"









SelectCommand

="SELECT [FilterOperatorNumber],[FilterOperator] FROM [FilterOperator]">









</asp:SqlDataSource>













<asp:SqlDataSource ID="SqlDataSource5" runat="server" ConnectionString="<%$ ConnectionStrings:EAFBREWIP_Con%>

"









SelectCommandType="StoredProcedure" SelectCommand="GetFiltervalue">













<SelectParameters

>









<asp:Parameter Name="MetricMeasureFilterNumber" Type="Int32"

/>









</SelectParameters

>









</asp:SqlDataSource

>









<asp:SqlDataSource ID="SqlDataSource3" runat="server" ConnectionString="<%$ ConnectionStrings:EAFBREWIP_Con%>

"









SelectCommand="SELECT [FilterNumber], [FilterName] FROM [Map_Filter_LookupTable]">













</asp:SqlDataSource>





please share your experiences,
thanks in advance

[Princy]

Hello Mirza,

I guess the problem is ParentTableRelations/DataKeyNames for the MasterTableView/GridTableViews according to the database relations conventions. Please refer the following demo and check whether you have followed the exact  conventions mentioned in this demo.
Grid / Declarative Relations

Thanks,
Princy.
