[Solved] Unwanted Whitespace Appears When ScrollHeight Set

[Robert]

I'm transitioning from using Microsoft's GridView to using Telerik's RadGrid.  With the former, to achieve vertical scrolling I just had a parent DIV with the correct properties set to achieve it.  The approach worked fine except that the header also scrolled, which I didn't like.

So now I'm trying to use the supposedly simpler, "automated" functionality that RadGrid offers but am running into countless problems.  Here's some sample layout code:

<telerik:RadGrid ID="radGridSummary" runat="server" AutoGenerateColumns="false" BorderColor="Gray" BorderStyle="Solid" BorderWidth="1" Width="587px"
                 CellPadding="0" GridLines="Both" Font-Size="11px" OnItemDataBound="radGridSummary_ItemDataBound" OnItemCommand="radGridSummary_ItemCommand">
  <HeaderStyle Font-Bold="true" ForeColor="#031d5b" VerticalAlign="Middle" Height="20" CssClass="pointerOnly headerGridRB" />
  <ItemStyle CssClass="radGridItem" />
  <AlternatingItemStyle CssClass="radGridAltItem" />
  <ClientSettings EnablePostBackOnRowClick="true" EnableRowHoverStyle="true" Scrolling-UseStaticHeaders="true" Scrolling-AllowScroll="true" Scrolling-ScrollHeight="200px" />

Note the last 3 properties of "ClientSettings" to turn on the vertical scrolling.  In a separate posting I pointed out that this messed up the horizontal alignment of the grid items in relation to the text in the header.  I'm still awaiting a solution to that.

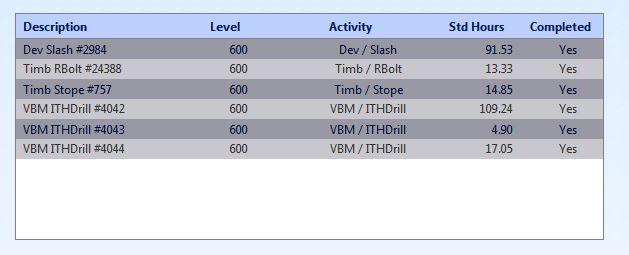

Now I've discovered that when the available space of the grid isn't fully populated that an ugly white space appears.  This is clearly unacceptable.  How do I get rid of or hide that white space?

Robert

[Shinu]

Hi,

Try setting height and width properties as shown below.
aspx:

<MasterTableView Height="800px" Width="2000px"></MasterTableView>
   <ClientSettings><Scrolling AllowScroll="true" /></ClientSettings>

Thanks,
Shinu

[Robert]

Shinu, as per your instructions, I just explicitly set the width & height in the MasterTableView:

<telerik:RadGrid ID="radGridSummary" runat="server" AutoGenerateColumns="false" BorderColor="Gray" BorderStyle="Solid" BorderWidth="1" Width="587px"
                 CellPadding="0" GridLines="Both" Font-Size="11px" OnItemDataBound="radGridSummary_ItemDataBound" OnItemCommand="radGridSummary_ItemCommand">
  <HeaderStyle Font-Bold="true" ForeColor="#031d5b" VerticalAlign="Middle" Height="20" CssClass="pointerOnly headerGridRB" />
  <ItemStyle CssClass="radGridItem" />
  <AlternatingItemStyle CssClass="radGridAltItem" />
  <ClientSettings EnablePostBackOnRowClick="true" EnableRowHoverStyle="true" Scrolling-UseStaticHeaders="true" Scrolling-AllowScroll="true" Scrolling-ScrollHeight="200px" />

  <MasterTableView Width="587px" Height="200px" BorderWidth="0" DataKeyNames="TaskID, TaskLevel, TaskActivity">

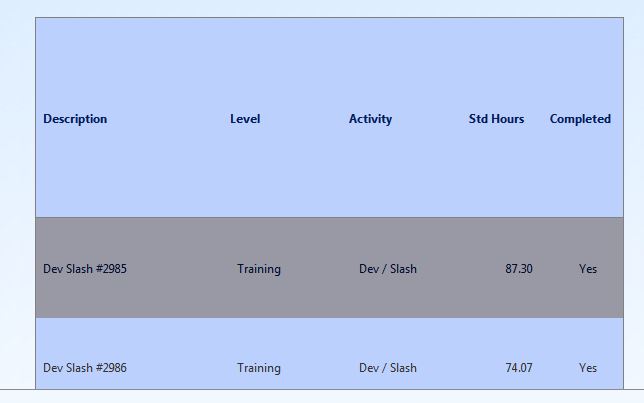

As you'll see in my enclosed screenshot, that made things much worse.

FYI here are my GridList related CSS classes:

/*** RadGrid CSS Classes - Used in GeneralInfo & gridListRB ***/

div.gridRB
{
  margin-top:15px;
  margin-right:6px;
  padding:0 0 0 0;
  overflow-x:hidden;
  overflow-y:auto;
  max-height:250px;
  border:solid 1px Gray;
}

.headerGridRB
{
  background-color:#bcd0fe !important;
  background-image:none !important;
  padding-top:2px !important;
  padding-bottom:2px !important;
}

div.RadGrid .rgRow td
{
  border-bottom-width:0;
  padding-top:0;
  padding-bottom:0;
}

div.RadGrid .rgAltRow td
{
  border-top-width:0;
  border-bottom-width:0;
  padding-top:0;
  padding-bottom:2px;
}

div.RadGrid .radGridItem
{
  background-color:#9999a5;
  color:#020f30;
  font-weight:normal;
  height:20px;
  cursor:pointer;
}

div.RadGrid .radGridAltItem
{
  background-color:#c7c7cd;
  font-weight:normal;
  height:18px;
  cursor:pointer;
}

div.RadGrid_Default .rgHoveredRow
{
    background-color:#bcd0fe !important;
    background-image:none !important;
}

/*** End of RadGrid CSS Classes ***/

[Pavlina]

Hi,

Try to remove the Height property from MasterTableView and see if it makes any difference.

<MasterTableView Width="587px" BorderWidth="0" DataKeyNames="TaskID, TaskLevel, TaskActivity">

Greetings,
Pavlina
the Telerik team
