Tabstrip ScrollChildren="True" Issue

1 Answer 127 Views

TabStrip

This is a migrated thread and some comments may be shown as answers.

Neha asked on 18 Feb 2011, 09:03 PM



Hi,

In my application i wanted to use tabstrip with ten tabs. Once i appplied ScrollChildern="True".

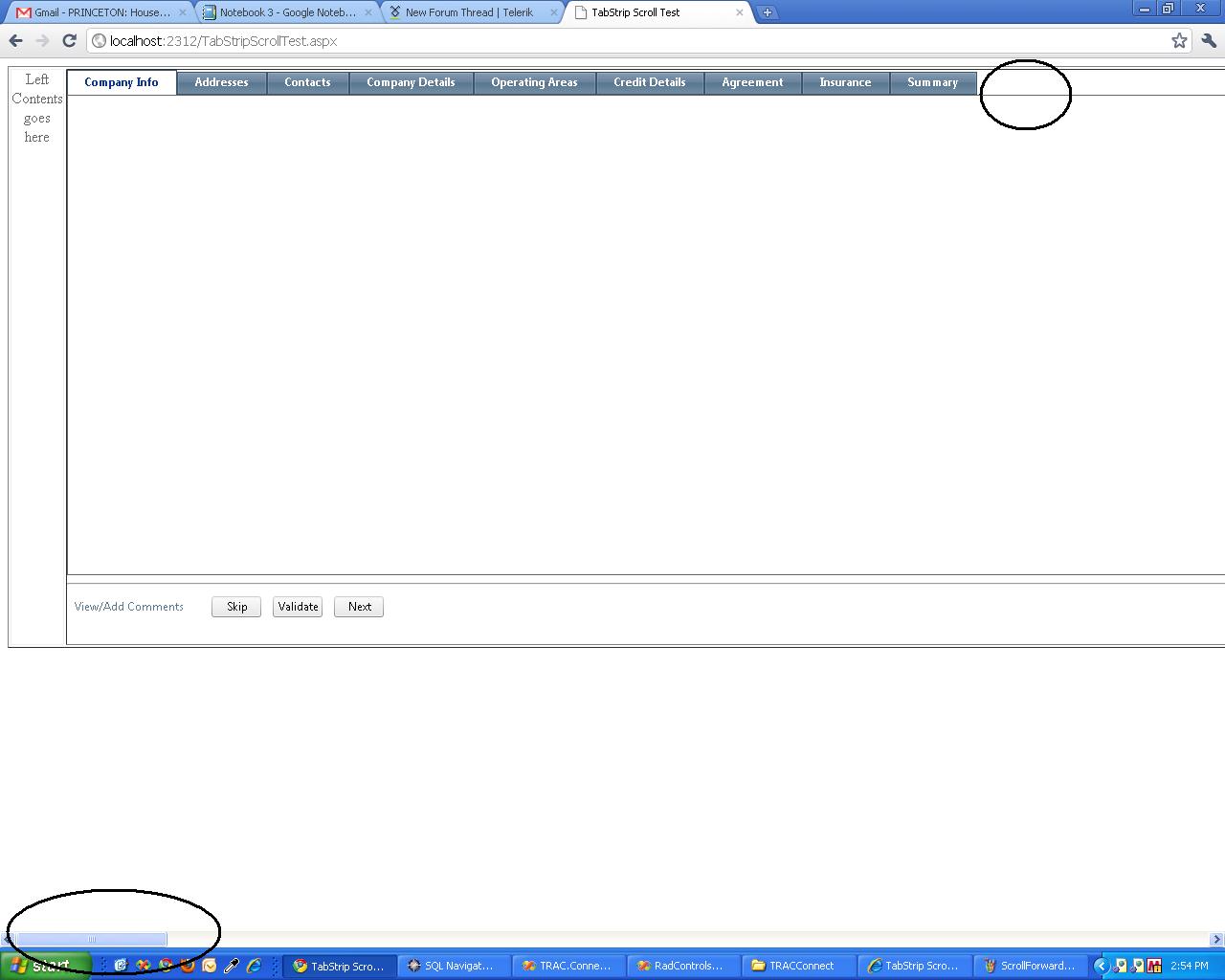

1.Tab Scrolling is not working in Firefox/Google Crome

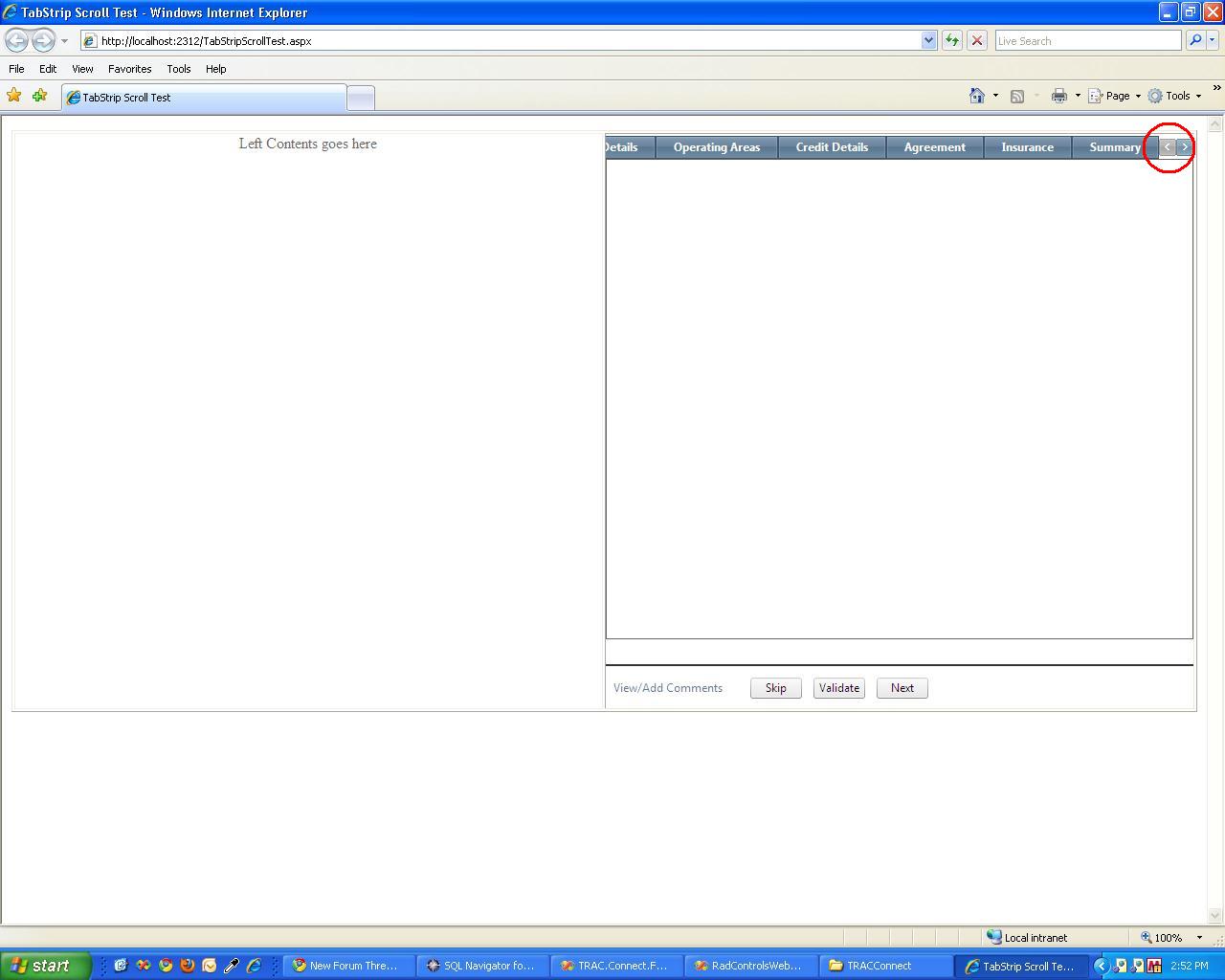

2. In Internet explorer i can see scrolling buttons but if i reach at 5th tab and if i hit button(Basically when page post back) Scrolling reverse button get disable.

I am attaching screenshots and code block. Let me know what i m doing wrong.

Thanks,

<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="TabStripScrollTest.aspx.cs" Inherits="RadControlsWebApp1.TabStripScrollTrest" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml" >

<head runat="server">

<title>TabStrip Scroll Test</title>

</head>

<body>

<form id="form1" runat="server">

<div>

<telerik:RadScriptManager runat="server" ID="RadGridScriptManager">

</telerik:RadScriptManager>

<table width="100%" cellpadding="0px" border="1">

<tr>

<td valign="top" align="center" style="width:20%;border:1px solid #EEE;color:#666;">

<div id="leftdiv" class="leftdivtitle">

</div>

Left Contents goes here

</td>

<td valign="top" style="width:20%;color:#EEE;">

<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">

<AjaxSettings>

<telerik:AjaxSetting AjaxControlID="pnlTab">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="radBtnBack" LoadingPanelID="RadAjaxLoadingPanel1" />

<telerik:AjaxUpdatedControl ControlID="radBtnSkip" LoadingPanelID="RadAjaxLoadingPanel1" />

<telerik:AjaxUpdatedControl ControlID="radBtnNext" LoadingPanelID="RadAjaxLoadingPanel1" />

<telerik:AjaxUpdatedControl ControlID="radBtnFinish" LoadingPanelID="RadAjaxLoadingPanel1" />

</UpdatedControls>

</telerik:AjaxSetting>

<telerik:AjaxSetting AjaxControlID="radBtnBack">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="pnlTab" LoadingPanelID="RadAjaxLoadingPanel1" />

</UpdatedControls>

</telerik:AjaxSetting>

<telerik:AjaxSetting AjaxControlID="radBtnSkip">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="pnlTab" LoadingPanelID="RadAjaxLoadingPanel1" />

<telerik:AjaxUpdatedControl ControlID="radBtnBack" LoadingPanelID="RadAjaxLoadingPanel1" />

</UpdatedControls>

</telerik:AjaxSetting>

<telerik:AjaxSetting AjaxControlID="radBtnSave">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="pnlTab" LoadingPanelID="RadAjaxLoadingPanel1" />

<telerik:AjaxUpdatedControl ControlID="pnlViewAgreement" LoadingPanelID="RadAjaxLoadingPanel1" />

</UpdatedControls>

</telerik:AjaxSetting>

<telerik:AjaxSetting AjaxControlID="radBtnNext">

<UpdatedControls>

<telerik:AjaxUpdatedControl ControlID="pnlTab" LoadingPanelID="RadAjaxLoadingPanel1" />

</UpdatedControls>

</telerik:AjaxSetting>

</AjaxSettings>

</telerik:RadAjaxManager>

<asp:Panel runat="server" ID="pnlRightContent" Height="600px" ScrollBars="Auto" Style="position: relative;">

<asp:Panel runat="server" ID="pnlTab">

<asp:HiddenField ID="previousTabHidden" runat="Server" />

<telerik:RadTabStrip ID="radTabStripCompanyRegistration" runat="server" MultiPageID="radMultiPageCompanyRegistration"

AutoPostBack="true" SelectedIndex="0" ScrollChildren="True"

Skin="WebBlue">

<Tabs>

<telerik:RadTab runat="server" Text="Company Info" PageViewID="radPageViewCompanyInfo"

Font-Bold="True" Selected="True">

</telerik:RadTab>

<telerik:RadTab runat="server" Text="Addresses" PageViewID="radPageViewAddresses"

Font-Bold="True">

</telerik:RadTab>

<telerik:RadTab runat="server" Text="Contacts" PageViewID="radPageViewContacts" Font-Bold="True">

</telerik:RadTab>

<telerik:RadTab runat="server" Text="Company Details" PageViewID="radPageViewCompanyDetails"

Font-Bold="True">

</telerik:RadTab>

<telerik:RadTab runat="server" Text="Operating Areas" PageViewID="radPageViewOperatingAreas"

Font-Bold="True">

</telerik:RadTab>

<telerik:RadTab runat="server" Text="Credit Details" PageViewID="radPageViewCreditDetails"

Font-Bold="True">

</telerik:RadTab>

<telerik:RadTab runat="server" Text="Agreement" PageViewID="radPageViewAgreement"

Font-Bold="True">

</telerik:RadTab>

<telerik:RadTab runat="server" Text="Insurance" PageViewID="radPageViewInsurance"

Font-Bold="True">

</telerik:RadTab>

<telerik:RadTab runat="server" Text="Summary" PageViewID="radPageViewSummary" Font-Bold="True">

</telerik:RadTab>

</Tabs>

</telerik:RadTabStrip>

<telerik:RadMultiPage runat="server" ID="radMultiPageCompanyRegistration" SelectedIndex="0"

Width="100%">

<telerik:RadPageView runat="server" ID="radPageViewCompanyInfo" BorderColor="#666666"

BorderWidth="1px" Height="500px" Selected="true">

<asp:Panel runat="server" ID="pnlCompanyInfo" CssClass="companyregpanel">

<%-- <uc1:CompanyInfo ID="CompanyInfo" runat="server" />--%>

</asp:Panel>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="radPageViewAddresses" BorderColor="#666666"

BorderWidth="1px" Height="500px">

<asp:Panel runat="server" ID="pnlAddresses" CssClass="companyregpanel">

<%--<uc2:addresses id="Addresses" runat="server" />--%>

</asp:Panel>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="radPageViewContacts" BorderColor="#666666"

BorderWidth="1px" Height="500px">

<asp:Panel runat="server" ID="pnlContacts" CssClass="companyregpanel">

<%--<uc3:contacts id="Contacts1" runat="server" />--%>

</asp:Panel>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="radPageViewCompanyDetails" BorderColor="#666666"

BorderWidth="1px" Height="500px">

<asp:Panel runat="server" ID="pnlCompanyDetails" CssClass="companyregpanel">

<%-- <uc4:companydetails id="CompanyDetails1" runat="server" />--%>

</asp:Panel>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="radPageViewOperatingAreas" BorderColor="#666666"

BorderWidth="1px" Height="500px">

<asp:Panel runat="server" ID="pnlOperatingAreas" CssClass="companyregpanel">

<%-- <uc5:operatingareas id="OperatingAreas1" runat="server" />--%>

</asp:Panel>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="radPageViewCreditDetails" BorderColor="#666666"

BorderWidth="1px" Height="500px">

<asp:Panel runat="server" ID="pnlCreditDetails" CssClass="companyregpanel">

<%-- <uc6:creditdetails id="CreditDetails1" runat="server" />--%>

</asp:Panel>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="radPageViewAgreement" BorderColor="#666666"

BorderWidth="1px" Height="500px">

<asp:Panel runat="server" ID="pnlViewAgreement" CssClass="companyregpanel">

<%-- <uc7:agreement id="Agreement1" runat="server"></uc7:agreement>--%>

</asp:Panel>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="radPageViewInsurance" BorderColor="#666666"

BorderWidth="1px" Height="500px">

<asp:Panel runat="server" ID="pnlInsurance" CssClass="companyregpanel">

<%-- <uc8:insurance id="Insurance1" runat="server"></uc8:insurance>--%>

</asp:Panel>

</telerik:RadPageView>

<telerik:RadPageView runat="server" ID="radPageViewSummary" BorderColor="#666666"

BorderWidth="1px" Height="500px">

<asp:Panel runat="server" ID="pnlSummary" CssClass="companyregpanel" Height="460px"

ScrollBars="Vertical">

<%-- <uc9:summary id="Summary1" runat="server"></uc9:summary>--%>

</asp:Panel>

</telerik:RadPageView>

</telerik:RadMultiPage>

</asp:Panel>

<hr style="color: #333; clear: both;" />

<table>

<tr>

<td align="center">

<telerik:RadButton ID="radBtnComment" runat="server" Text="View/Add Comments" ButtonType="LinkButton"

AutoPostBack="False" BackColor="White" BorderColor="White" UseSubmitBehavior="false"

ForeColor="#5b7993">

</telerik:RadButton>

</td>

<td>

</td>

<td>

<telerik:RadButton ID="radBtnBack" runat="server" Text="Back" Width="50px" Visible="false"

>

</telerik:RadButton>

</td>

<td>

</td>

<td>

<telerik:RadButton ID="radBtnSkip" runat="server" Text="Skip" Width="50px" >

</telerik:RadButton>

</td>

<td>

</td>

<td>

<telerik:RadButton ID="radBtnSave" runat="server" Text="Validate" Width="50px" >

</telerik:RadButton>

</td>

<td>

</td>

<td>

<telerik:RadButton ID="radBtnNext" runat="server" Text="Next" Width="50px"

UseSubmitBehavior="False">

</telerik:RadButton>

</td>

<td>

</td>

<td>

<telerik:RadButton ID="radBtnFinish" runat="server" Text="Finish" Width="50px" UseSubmitBehavior="False"

Visible="False">

</telerik:RadButton>

</td>

<td>

<asp:HiddenField ID="hdnCompanyId" runat="server" Value="0" />

</td>

</tr>

</table>

<div id="CompRegDiv" class="bigModule" visible="false" runat="server">

<table id="tblError" runat="server" visible="true">

<tr>

<td colspan="5">

<div class="bigModuleBottom">

<asp:Label ID="lblWarning" runat="server" Text="" CssClass="requiredsign"></asp:Label>

</div>

</td>

</tr>

</table>

</div>

</asp:Panel>

<telerik:RadAjaxLoadingPanel ID="RadAjaxLoadingPanel1" runat="server">

</telerik:RadAjaxLoadingPanel>

<telerik:RadWindowManager ID="RadWindowManager1" runat="server" EnableShadow="true">

<Windows>

<telerik:RadWindow ID="CompanyCommentWindow" runat="server" Title="Company Comments"

Width="765" Height="500" Behaviors="close" />

</Windows>

</telerik:RadWindowManager>

</td>

</tr>

</table>

</div>

</form>

</body>

</html>

1 Answer, 1 is accepted

answered on 01 Mar 2011, 03:58 PM

TabStripScrollingWidth.zip

Hello Neha,

The problem comes from the tables you're using for layout. By default a table cell is resized by its content and RadTabStrip can't size its scrolling container properly. I'm attaching similar example, but using RadSplitter for layout.

Regards,
Kamen Bundev
