Rad:Grid Change Row BackGround Color

27 posts, 0 answers
  1. James
    James avatar
    20 posts
    Member since:
    Oct 2008

    Posted 05 Jun 2009 Link to this post



    Depending on data within row. if column "Behind90Days" is 1 then I need to make the entire row
    within the datagrid some shade of red to alert the user. Have looked through too many examples
    that don't seem to touch of entire row but individual columns?

    In the ItemDataBound event, check the value 'Behind90Days' if it's == 1 then change entire
    background color of that row to red!

    Thanks!

    Jim D
  2. -DJ-
    -DJ- avatar
    263 posts
    Member since:
    Oct 2004

    Posted 06 Jun 2009 Link to this post

    Hi James,

    You can use the databound item and then set the item's backcolor.

    Something like this should work:

    Protected Sub RadGrid1_ItemDataBound(ByVal s As ObjectByVal e As GridItemEventArgs) Handles RadGrid1.ItemDataBound
        If TypeOf e.Item Is GridDataItem Then

            Dim dataItem As GridDataItem = e.Item
            Dim myCell As TableCell = dataItem("myCell"
            If myCell.Text = "Behind90Days" Then
                dataItem.BackColor = Drawing.Color.Red
                dataItem.ForeColor = Drawing.Color.White
            End If
    End If
    End Sub


    Regards,
    -DJ-
  3. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 08 Jun 2009 Link to this post

    Hi James,

    I hope the 'Behind90Days' is the Name of the Column and you are trying to set the entire row color depending on this column value. If so you may try the following approach.

    CS:

      protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
        {

            if (e.Item is GridDataItem)
            {
             GridDataItem dataItem = e.Item;
             if (dataItem[Behind90Days].Text == "1"
             {
                 dataItem.BackColor = Drawing.Color.Red;
             }
         }



    Thanks
    Shinu
  4. James
    James avatar
    20 posts
    Member since:
    Oct 2008

    Posted 08 Jun 2009 Link to this post

    With a little of both I figured it out! If anyone see something incorrect here please let me know!
    Bottom line, when databound if it finds 1 (True) in the 90DaysLate column, incorrect before as I
    was using the ID rather than the UniqueName, which caused me some problems! Yech, ID should
    always work I think!

    protected void gridSearchResults_OnItemDataBound(object sender, GridItemEventArgs e)
        {
            if (e.Item is GridDataItem)
            {
                GridDataItem dataItem = (GridDataItem)e.Item;
                TableCell myCell = dataItem["90DaysLate"];
                if ((myCell.Text == "1"))
                {
                    //dataItem.BackColor = System.Drawing.Color.Red;
                    dataItem.ForeColor = System.Drawing.Color.Red;
                    dataItem.Font.Bold = true;
                }
             }
        }

  5. -DJ-
    -DJ- avatar
    263 posts
    Member since:
    Oct 2004

    Posted 08 Jun 2009 Link to this post

    Hi James,

    I obviously misread your post, good that Shinu stepped in.
    Glad you got it working.

    Regards,
    -DJ-
  6. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 08 Jun 2009 Link to this post

    Hi James,

    You may also go through the following help article which explains how to access the cell values using Column's UniqueName property.
    Accessing cells and rows

    Regards
    Shinu.
  7. Ram
    Ram avatar
    97 posts
    Member since:
    Jun 2011

    Posted 30 Jun 2011 Link to this post

    Hi
    In my radgrid I have set the alternativeitemstyle backcolor=white
    But I'm getting some transparent line after every two rows.
    How can I delete that line.
  8. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 30 Jun 2011 Link to this post

    Hello Ram,

    Try the overriding the CSS like below.

    CSS:
    .RadGrid_<skinName>.rgAltRow td
    {
        background-color:#FFFFFF !important;
        border-bottom-color:#FFFFFF !important;
    }

    Thanks,
    Shinu.
  9. Taha
    Taha avatar
    2 posts
    Member since:
    Feb 2012

    Posted 01 Feb 2012 Link to this post

    Hi Every Body!!
    i want to change position tab between cells , so it must change background cell when cell is active...

    tnx
  10. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 01 Feb 2012 Link to this post

    Hello Taha,

    I am not quite sure about your requirement. I suppose you want to change the background color of cells. Here is the sample code.
    C#:
    protected void grid_ItemDataBound(object sender, GridItemEventArgs e)
    {
     if (e.Item is GridDataItem)
     {
      GridDataItem item = (GridDataItem)e.Item;
      TableCell cell = (TableCell)item["UniqueName"];
      cell.BackColor = System.Drawing.Color.Red;
     }
    }

    -Shinu.
  11. Paul Zillman
    Paul Zillman avatar
    2 posts
    Member since:
    Jul 2008

    Posted 29 Oct 2012 Link to this post

    I am looking to do the same type of check but on a column setup as a GridCheckBoxColumn.  How would I go about modifying the code to be able to check if the checkbox is checked or not.  Tried to do Dim myCell As CheckBox = dataItem("UniqueName") but get an error "Value of type 'System.Web.UI.WebControls.TableCell' cannot be converted to 'System.Web.UI.WebControls.Checkbox'.  Thanks.
  12. Shinu
    Shinu avatar
    17764 posts
    Member since:
    Mar 2007

    Posted 29 Oct 2012 Link to this post

    Hi,

    I guess you want to access the CheckBoxColumn and assign color for the same cell checking whether it is checked or not.

    C#:
    protected void RadGrid1_ItemDataBound(object sender, Telerik.Web.UI.GridItemEventArgs e)
    {
        if (e.Item is GridDataItem)
        {
            GridDataItem item = (GridDataItem)e.Item;
            CheckBox chk = (CheckBox)item["UniqueName"].Controls[0];
            if (chk.Checked)
            {
                TableCell cell = (TableCell)item["UniqueName"];
                cell.BackColor = Color.Aqua;
            }
        }
    }

    Thanks,
    Shinu.
  13. Paul Zillman
    Paul Zillman avatar
    2 posts
    Member since:
    Jul 2008

    Posted 30 Oct 2012 Link to this post

    Worked perfect!  Thanks for your help.
  14. steven schmalfeld
    steven schmalfeld avatar
    11 posts
    Member since:
    Dec 2006

    Posted 27 Jan 2015 Link to this post

    I had a similar problem, in a twist on the previous solutions I am using a strongly typed object and casting the data item to that object This allows me to reference the underlying values in the data item easily using Intellihelp

        protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
        {
            if (e.Item is GridDataItem)
            {
                GridDataItem dataItem = (GridDataItem)e.Item;
                Vw_People_Address vpa = (Vw_People_Address)((Telerik.Web.UI.GridItem)(dataItem)).DataItem;
                if (vpa.Undeliverable || vpa.Unverified_Notstandardized || vpa.Nosuchaddress)
                {
                    e.Item.BackColor = System.Drawing.Color.Red;
                    e.Item.ForeColor = System.Drawing.Color.White;
                }

            }
        }
  15. Vinay
    Vinay avatar
    2 posts
    Member since:
    Jul 2016

    Posted 08 Jul 2016 Link to this post

    I was bind radgrid using generic list collection.

    [WebMethod]
            public static List<ServiceRequestDataClass> GetData(int startIndex, int maximumRows,
                string sortExpressions, List<GridFilterExpression> filterExpressions)

    My requirement is, I want to change row colors depends on status of column data. Status may be (Open/WIP/Acknowledge/Completed).
     When I try to implement using Itemdatabound event of radgrid. It does not giving value of status column.
     Please provide suitable solution on above problem.
     Thanks,

  16. Eyup
    Admin
    Eyup avatar
    3988 posts

    Posted 13 Jul 2016 Link to this post

    Hi Vinay,

    If you are using client-side binding, you can make avail of the following event handler:
    http://docs.telerik.com/devtools/aspnet-ajax/controls/grid/client-side-programming/events/onrowdatabound

    I hope this will prove helpful.

    Regards,
    Eyup
    Telerik by Progress
    Do you need help with upgrading your ASP.NET AJAX, WPF or WinForms projects? Check the Telerik API Analyzer and share your thoughts.
  17. Vinay
    Vinay avatar
    2 posts
    Member since:
    Jul 2016

    Posted 14 Jul 2016 in reply to Eyup Link to this post

    Thanks Eyup,

    Your provided link is very helpful for me. I am solve my problem.

    Thanks.

  18. Kiran
    Kiran  avatar
    55 posts
    Member since:
    Oct 2018

    Posted 29 May 2019 Link to this post

    Hi,

    I am not able tos et the forecolor of the GridTemplate Column in the Item Databound.



     <telerik:GridTemplateColumn HeaderText="OPERATOR" UniqueName="OPERATOR" HeaderStyle-ForeColor="Wheat" AllowFiltering="false"  >                     <ItemTemplate>                             <asp:HyperLink ID="targetControl" runat="server" NavigateUrl="#" Text='<%# Eval("OPERATOR") %>'  ></asp:HyperLink>                      </ItemTemplate>                 </telerik:GridTemplateColumn>





     If strUser = "JSCAR" Then

           dataItem.BackColor = DarkOrange

          dataItem.ForeColor = Black

        End If









  19. Kiran
    Kiran  avatar
    55 posts
    Member since:
    Oct 2018

    Posted 29 May 2019 Link to this post

    I found the answer for my question. If anybody is trying to set the forecolor of entire but the row contains gridtemplate column. Grab the cell by doing the following:

     If strUser = "JSCAR" Then

    dataItem.BackColor = Yellow

    dataItem.ForeColor = Black



    'Gridtemplatecolumn below

      DirectCast(dataItem.Item("OPERATOR").FindControl("targetControl"), HyperLink).ForeColor = Black

    End If

  20. kriti
    kriti avatar
    4 posts
    Member since:
    Mar 2020

    Posted 13 May Link to this post

    Hi ,

    I want to disable the cellbackcolor and rowbackcolor property of conditional formatting for telerik radgridview . Is there a way to do so ?

  21. Attila Antal
    Admin
    Attila Antal avatar
    546 posts

    Posted 18 May Link to this post

    Hi Kriti,

    Can you please describe what did you mean by disabling background color? Cells are being colored manually and if there are some you do not want to apply colors for, exclude them from the conditional coloring.

    It would be helpful if you could share some details about the code you are working on. We can then see what is being done and allow us to advise you accordingly.

    Kind regards,
    Attila Antal
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  22. kriti
    kriti avatar
    4 posts
    Member since:
    Mar 2020

    Posted 19 May in reply to Attila Antal Link to this post

    Hi Attila,

    We have created a product for our customer using Telerik dlls .

    So in our code we have set the background color for cell and background color for row as some specific value (as we wanted it to be standardized). The problem is that from UI the property for cellbackcolor and rowbackcolorcolor are still visible and customer is trying to set value to it ,while it wont get reflected as i have written standardized color code for it.

    So what we want now is the feasibility to disable or hide the properties from property window of conditional formatting so that customer cant see the option or play with it .

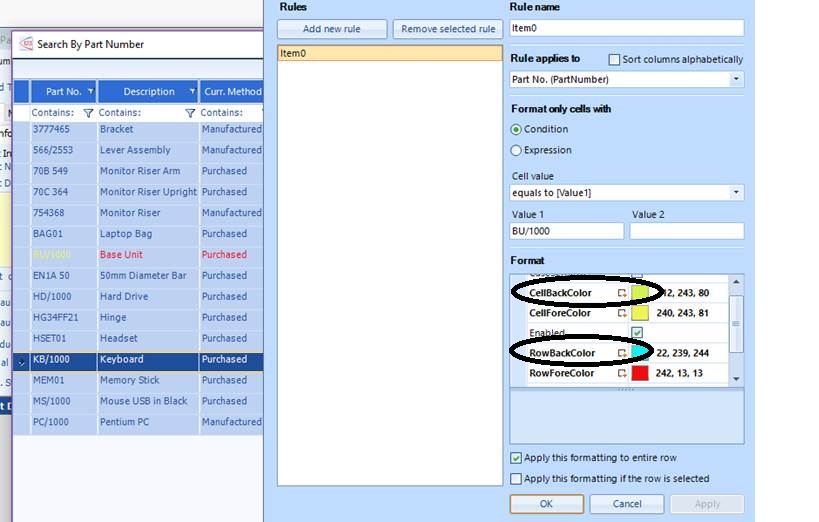

    Attaching a screenshot for the fields i would like to hide or disable

  23. Attila Antal
    Admin
    Attila Antal avatar
    546 posts

    Posted 21 May Link to this post

    Hi Kriti,

    It seems that the scenario from the screenshot is a custom implementation. Can you please show me which functionality of the Telerik UI AJAX - RadGrid allows you to change the colors the way it is shown in the screenshot? Telerik UI for ASP.NET AJAX does not share the same functionality with the GridView from the Telerik UI for WinForms suite.

    Kind regards,
    Attila Antal
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  24. kriti
    kriti avatar
    4 posts
    Member since:
    Mar 2020

    Posted 25 May in reply to Attila Antal Link to this post

    Hi Attila,

     We are using telerik winforms product version 2012.1.12.0215.

    The customer requirement is that we want to disable the two properties marked in the screenshot. Is it possible that we can disable  cellbackcolor and rowbackcolor property from the conditional formatting of rad grid view window in screenshot ? If not disable can i remove them .

    Thanks

  25. Attila Antal
    Admin
    Attila Antal avatar
    546 posts

    Posted 25 May Link to this post

    Hi Kriti,

    I am afraid that RadGrid from the Telerik UI for ASP.NET AJAX suite does not provide APIs to enable/disable colors the same way you would do in a WinForms project. If you want to change any of the colors you will need to use CSS as this is a Web-based application.

    In case you would like to have a UI that allows the users to change cell colors, that will need to be implemented additionally.

    For Web-based applications, I would suggest inspecting the HTML elements and the styles applied to them. You can follow the suggestions in the first two points of the Improve Your Debugging Skills with Chrome DevTools blog post explaining how to inspect the generated HTML and check the applied styles for various elements.

    Once you know the styles you need to override, you can use the same style selector and add "html body " in front of it to make it more specific, "stronger". More on CSS specificity you can find here:

    To learn more about CSS styling and using the Browser's developer tools, you may find the following videos useful:

    Kind regards,
    Attila Antal
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
  26. kriti
    kriti avatar
    4 posts
    Member since:
    Mar 2020

    Posted 25 May in reply to Attila Antal Link to this post

    Hi Attila,

    Thanks for the guidance, but we have windows desktop based application.

    Can you guide me for the same?

    Thanks

  27. Attila Antal
    Admin
    Attila Antal avatar
    546 posts

    Posted 25 May Link to this post

    Hi Kiri,

    I apologize, I understood that you want to achieve a Winforms like behavior with the Web-based RadGrid.

    For questions related to Winforms, please open a thread in the UI for WinForms Forum discussions.

    Regards,
    Attila Antal
    Progress Telerik

    Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
    Our thoughts here at Progress are with those affected by the outbreak.
Back to Top
