Filter row disappears after filtering

2 Answers 191 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Matt asked on 23 Dec 2014, 03:36 PM



Hi, hows it going?

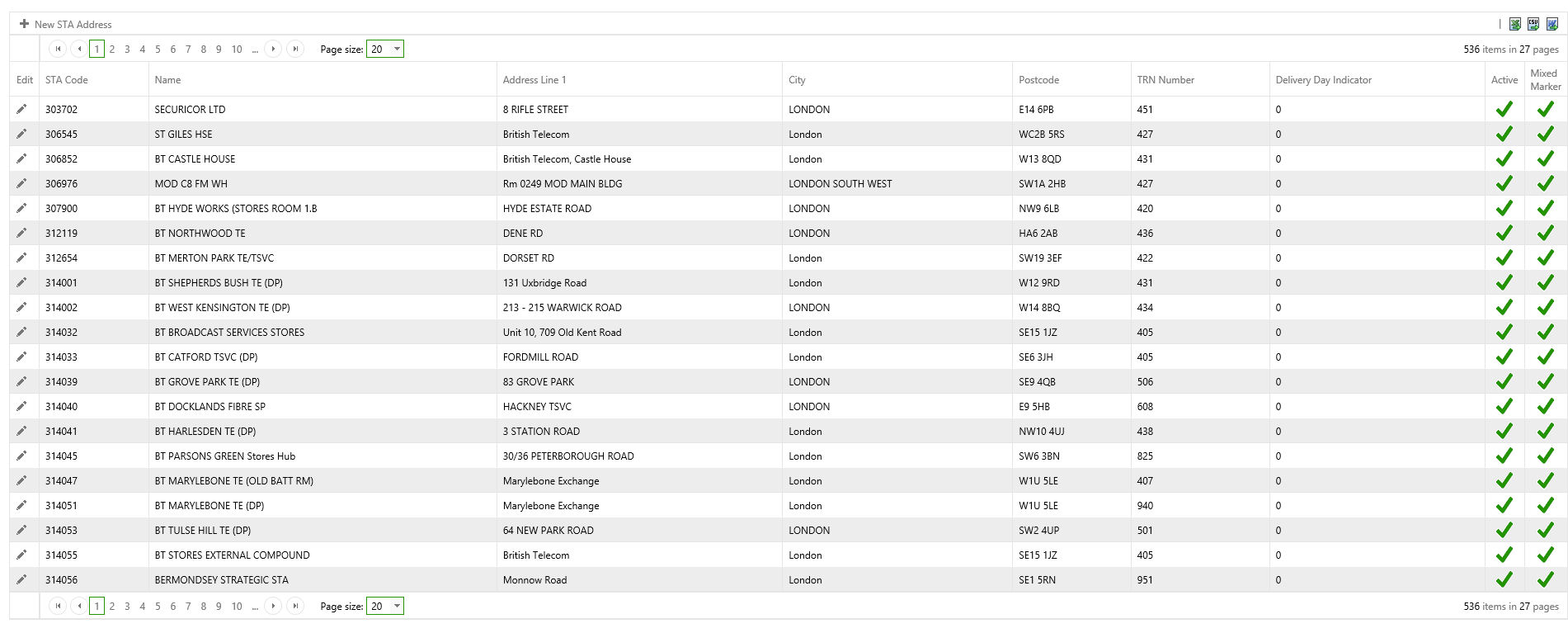

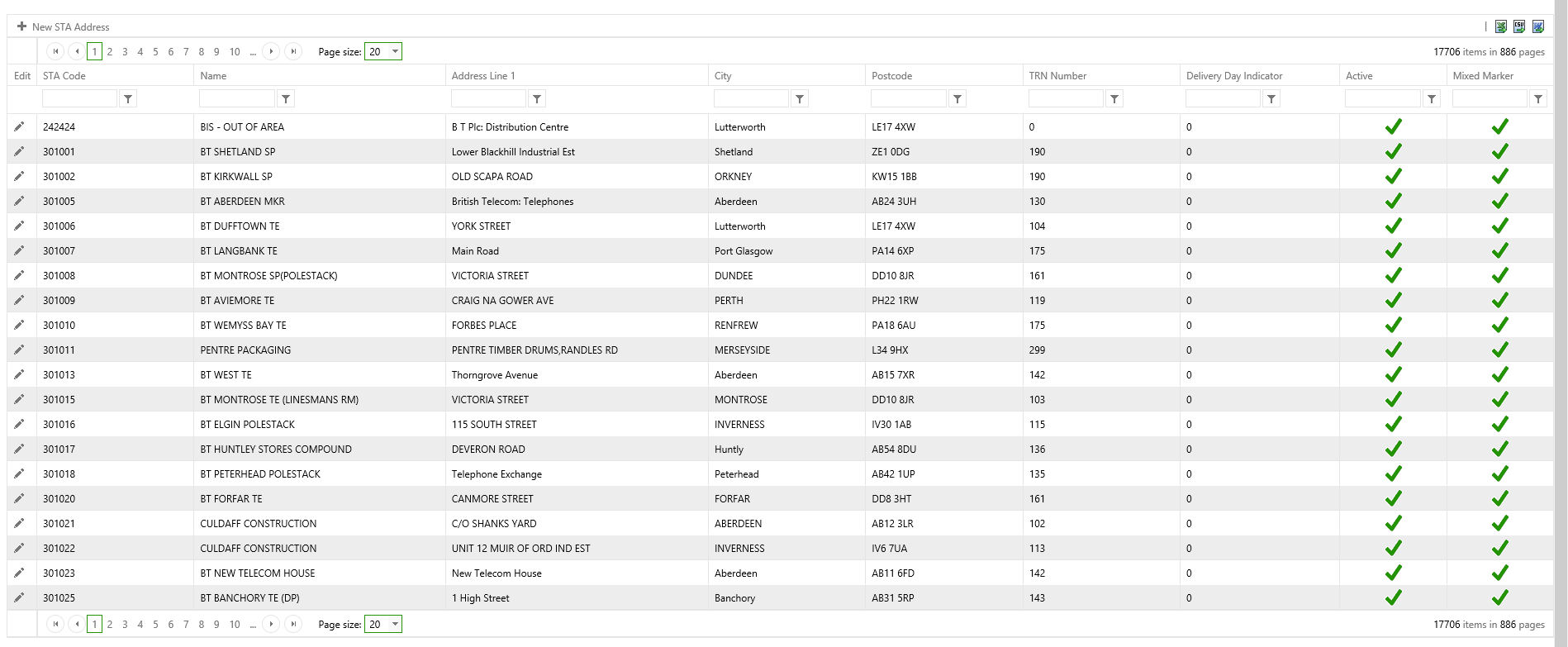

I have a RadGrid control (2014.3.1024.45) that has paging, filtering, sorting and editing by template enabled. If I enter a filter value, the filter row in the grid disappears after the post back. The user is then unable to remove/change the filtering. Here my code:

<telerik:RadGrid runat="server" ID="rgdAddresses" AutoGenerateColumns="false" ShowStatusBar="true" AllowSorting="True" AllowFilteringByColumn="true"

OnItemCommand="rgdAddresses_ItemCommand"

OnNeedDataSource="rgdAddresses_NeedDataSource"

OnInit="rgdAddresses_Init"

OnItemDataBound="rgdAddresses_ItemDataBound"

OnSortCommand="rgdAddresses_SortCommand">

<MasterTableView DataKeyNames="Id, STACode" CommandItemDisplay="Top">

<CommandItemSettings ShowExportToWordButton="true" ShowExportToExcelButton="true"

ShowExportToCsvButton="true" ShowExportToPdfButton="false"

ShowRefreshButton="false" ShowAddNewRecordButton="true" AddNewRecordText="New STA Address" />

<Columns>

<telerik:GridEditCommandColumn ButtonType="ImageButton" ItemStyle-Width="20px" HeaderText="Edit" UniqueName="Edit" />

<telerik:GridBoundColumn UniqueName="STACode" HeaderText="STA Code" DataField="STACode" AllowFiltering="true" />

<telerik:GridBoundColumn UniqueName="Name" HeaderText="Name" DataField="Name" AllowFiltering="true" />

<telerik:GridBoundColumn UniqueName="AddressLine1" HeaderText="Address Line 1" DataField="AddressLine1" AllowFiltering="true" />

<telerik:GridBoundColumn UniqueName="AddressLine2" HeaderText="Address Line 2" DataField="AddressLine2" Visible="false" />

<telerik:GridBoundColumn UniqueName="AddressLine3" HeaderText="Address Line 3" DataField="AddressLine3" Visible="false" />

<telerik:GridBoundColumn UniqueName="AddressLine4" HeaderText="Address Line 4" DataField="AddressLine4" Visible="false" />

<telerik:GridBoundColumn UniqueName="City" HeaderText="City" DataField="City" AllowFiltering="true" />

<telerik:GridBoundColumn UniqueName="Postcode" HeaderText="Postcode" DataField="Postcode" AllowFiltering="true" />

<telerik:GridBoundColumn UniqueName="CountryCode" HeaderText="Country Code" DataField="CountryCode" Visible="false" />

<telerik:GridBoundColumn UniqueName="TRNNumber" HeaderText="TRN Number" DataField="TRNNumber" AllowFiltering="true" />

<telerik:GridBoundColumn UniqueName="DepotNumber" HeaderText="Depot Number" DataField="DepotNumber" Visible="false" />

<telerik:GridBoundColumn UniqueName="DeliveryDayIndicator" HeaderText="Delivery Day Indicator" DataField="DeliveryDayIndicator" />

<telerik:GridTemplateColumn HeaderText="Active" UniqueName="Active" HeaderStyle-Width="30px" ItemStyle-HorizontalAlign="Center">

<ItemTemplate>

<asp:Image ID="imgActive" runat="server" ImageUrl="<%# GetBindingActiveImage() %>" />

</ItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridBoundColumn UniqueName="ActiveExport" HeaderText="Active" DataField="Active" Visible="false" />

<telerik:GridTemplateColumn HeaderText="Mixed Marker" UniqueName="MixedMarker" HeaderStyle-Width="30px" ItemStyle-HorizontalAlign="Center">

<ItemTemplate>

<asp:Image ID="imgMixedMarker" runat="server" ImageUrl="<%# GetBindingMixedMarkerImage() %>" />

</ItemTemplate>

</telerik:GridTemplateColumn>

<telerik:GridBoundColumn UniqueName="MixedMarkerExport" HeaderText="Mixed Marker" DataField="MixedMarker" Visible="false" />

</Columns>

<EditFormSettings EditFormType="Template">

<FormTemplate>

<table class="tableStyle">

<tr>

<td colspan="5">

<asp:Label ID="lblInstruction" runat="server" CssClass="subTitle" Text='<%# (Container is GridEditFormInsertItem) ? "Add a new STA Address" : "Edit existing STA Address" %>' />

</td>

</tr>

<tr>

<td style="width: 100px">

<asp:Label ID="lblSTACode" runat="server" CssClass="labelStyle" Text="STA Code:" />

</td>

<td>

<asp:TextBox ID="txtSTACode" runat="server" CssClass="textBoxStyle" Text='<%# Bind("STACode") %>' MaxLength="30" TabIndex="1"/>

</td>

<td style="width: 30px"></td>

<td style="width: 120px">

<asp:Label ID="lblActive" runat="server" CssClass="labelStyle" Text="Active:" />

</td>

<td>

<asp:CheckBox ID="chkActive" runat="server" Checked='<%# (Container is GridEditFormInsertItem) ? true : Eval("Active") %>' TabIndex="9" />

</td>

</tr>

<tr>

<td>

<asp:Label ID="lblName" runat="server" CssClass="labelStyle" Text="Name:" />

</td>

<td>

<asp:TextBox ID="txtName" runat="server" CssClass="textBoxStyle" Text='<%# Bind("Name") %>' MaxLength="50" TabIndex="2" />

</td>

<td></td>

<td>

<asp:Label ID="lblTRNNumber" runat="server" CssClass="labelStyle" Text="TRN Number:" />

</td>

<td>

<asp:TextBox ID="txtTRNNumber" runat="server" CssClass="textBoxStyle" Text='<%# Bind("TRNNumber") %>' MaxLength="6" TabIndex="10" />

</td>

</tr>

<tr>

<td>

<asp:Label ID="lblAddressLine1" runat="server" CssClass="labelStyle" Text="Address Line 1:" />

</td>

<td>

<asp:TextBox ID="txtAddressLine1" runat="server" CssClass="textBoxStyle" Text='<%# Bind("AddressLine1") %>' MaxLength="50" TabIndex="2" />

</td>

<td></td>

<td>

<asp:Label ID="lblDepotNumber" runat="server" CssClass="labelStyle" Text="Depot Number:" />

</td>

<td>

<asp:TextBox ID="txtDepotNumber" runat="server" CssClass="textBoxStyle" Text='<%# Bind("DepotNumber") %>' MaxLength="5" TabIndex="11"/>

</td>

</tr>

<tr>

<td>

<asp:Label ID="lblAddressLine2" runat="server" CssClass="labelStyle" Text="Address Line 2:" />

</td>

<td>

<asp:TextBox ID="txtAddressLine2" runat="server" CssClass="textBoxStyle" Text='<%# Bind("AddressLine2") %>' MaxLength="30" TabIndex="3" />

</td>

<td></td>

<td>

<asp:Label ID="lblMixedMarker" runat="server" CssClass="labelStyle" Text="Mixed Marker:" />

</td>

<td>

<asp:Label ID="lblMixedMarkerValue" runat="server" CssClass="labelStyle" Text='<%# (Container is GridEditFormInsertItem) ? "True" : Eval("MixedMarker") %>' />

</td>

</tr>

<tr>

<td>

<asp:Label ID="lblAddressLine3" runat="server" CssClass="labelStyle" Text="Address Line 3:" />

</td>

<td>

<asp:TextBox ID="txtAddressLine3" runat="server" CssClass="textBoxStyle" Text='<%# Bind("AddressLine3") %>' MaxLength="30" TabIndex="4"/>

</td>

<td></td>

<td>

<asp:Label ID="lblDeliveryDay" runat="server" CssClass="labelStyle" Text="Delivery Day Indicator:" />

</td>

<td>

<asp:Label ID="lblDeliveryDayValue" runat="server" CssClass="labelStyle" Text='<%# (Container is GridEditFormInsertItem) ? "0" : Eval("DeliveryDayIndicator") %>' />

</td>

</tr>

<tr>

<td>

<asp:Label ID="lblAddressLine4" runat="server" CssClass="labelStyle" Text="Address Line 4:" />

</td>

<td>

<asp:TextBox ID="txtAddressLine4" runat="server" CssClass="textBoxStyle" Text='<%# Bind("AddressLine4") %>' MaxLength="30" TabIndex="5" />

</td>

<td></td>

</tr>

<tr>

<td>

<asp:Label ID="lblCity" runat="server" CssClass="labelStyle" Text="City:" />

</td>

<td>

<asp:TextBox ID="txtCity" runat="server" CssClass="textBoxStyle" Text='<%# Bind("City") %>' MaxLength="30" TabIndex="6" />

</td>

<td></td>

</tr>

<tr>

<td>

<asp:Label ID="lblPostcode" runat="server" CssClass="labelStyle" Text="Postcode:" />

</td>

<td>

<asp:TextBox ID="txtPostcode" runat="server" CssClass="textBoxStyle" Text='<%# Bind("Postcode") %>' MaxLength="10" TabIndex="7" />

</td>

<td></td>

</tr>

<tr>

<td>

<asp:Label ID="lblCountryCode" runat="server" CssClass="labelStyle" Text="Country Code:" />

</td>

<td>

<asp:TextBox ID="txtCountryCode" runat="server" CssClass="textBoxStyle" Text='<%# Bind("CountryCode") %>' MaxLength="5" TabIndex="8" />

</td>

<td></td>

</tr>

</table>

<table class="tableStyle">

<tr>

<td>

<telerik:RadButton ID="btnSave" runat="server" Text="Save"

CommandName='<%# (Container is GridEditFormInsertItem) ? "PerformInsert" : "Update" %>' />

</td>

<td>

<telerik:RadButton ID="btnCancel" runat="server" Text="Cancel" CausesValidation="false" CommandName="Cancel" />

</td>

</tr>

</table>

</FormTemplate>

</EditFormSettings>

</MasterTableView>

</telerik:RadGrid>

What am I doing wrong?

Thanks in advance,

Matt

2 Answers, 1 is accepted

Accepted

answered on 26 Dec 2014, 09:01 AM

RadGridFilterItemMatt.zip

Hi Matt,

This issue is very strange, indeed. Can you check whether you are not hiding the filter item on the code-behind using the Visible or IsFilterItemExpanded properties?

I've created a sample RadGrid web site using the provided mark-up to test the described behavior. On my side the filtering works as expected. Please run the attached application and let me know about the result from your end.

Regards,
Eyup
