Excel-like Grid Coming?

3 Answers 108 Views
Grid
This is a migrated thread and some comments may be shown as answers.
Jeremy Yoder
Top achievements
Rank 1
Jeremy Yoder asked on 01 Apr 2010, 07:43 PM

This is in response to the info I learned in the thread below. We're just wondering if you're planning on creating an excel-like grid control in the near future. (Whether it's an option in RadGrid or something different.) Thanks.

http://www.telerik.com/community/forums/aspnet-ajax/grid/empty-radgrid-shows-no-columns.aspx

3 Answers, 1 is accepted

Sort by
0
Princy
Top achievements
Rank 2
answered on 05 Apr 2010, 08:14 AM
Hello Jeremy,

Have you seen the code library which resembles entering data in an excel spreadsheet using RadGrid?

I hope you found what you were looking for  :)

Regards,
Princy.
0
Jeremy Yoder
Top achievements
Rank 1
answered on 06 Apr 2010, 08:38 PM

Thanks. I had checked that, but was leery of all the code trying to make it work, which concerns me for the long-term. And the arrow keys always work, so you can't use arrows to move left and right within the text. (As opposed to the Infragistics grid, which has a cell-selected mode and cell-edit mode.)

Also, its appearance isn't excel-like with gaps between columns and rows. Is there at least a way to make all the cells tight against each other? Thanks again.
0
Erwin Floresca
Top achievements
Rank 1
answered on 06 Apr 2010, 11:27 PM
Hi,

You can use the attached stylesheet to make the radgrid look like excel. On the radgrid you need to set
Skin="datasheet" EnableEmbeddedSkins="false". The filename should be Grid.datasheet.css

In excel you will press "F2" key to change the cell to edit mode. you can do the same thing in the web by looking for that key code in the keypress event for the cell.

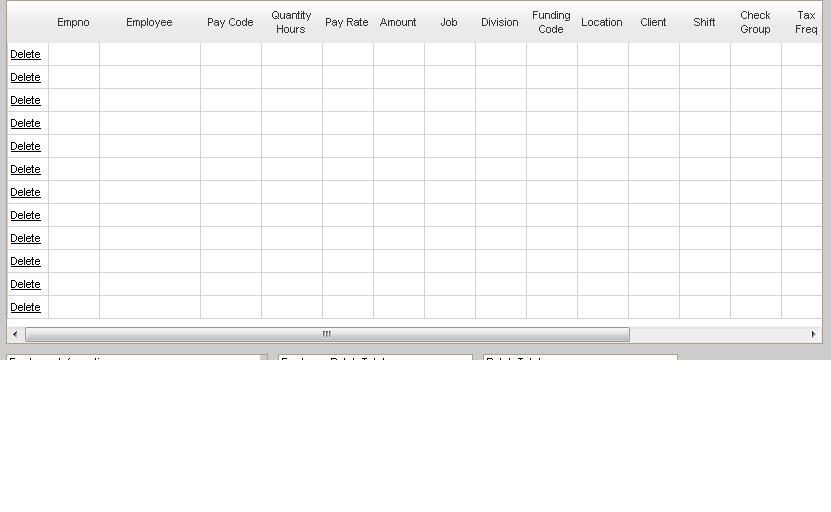

I included an attachment to show you how it looks when I applied the skin.

I hope this helps.
/*Telerik RadGrid datasheet Skin*/

/*global*/

.RadGrid_datasheet
    border:1px solid #ad9e87
    background:#fff
    color:#333

.RadGrid_datasheet,
.RadGrid_datasheet .rgMasterTable,
.RadGrid_datasheet .rgDetailTable,
.RadGrid_datasheet .rgGroupPanel table,
.RadGrid_datasheet .rgCommandRow table,
.RadGrid_datasheet .rgEditForm table,
.RadGrid_datasheet .rgPager table,
.GridToolTip_datasheet
    font:8pt arial

.RadGrid_datasheet .rgMasterTable,
.RadGrid_datasheet .rgDetailTable
    border-collapse:separate

.RadGrid_datasheet .rgRow,
.RadGrid_datasheet .rgAltRow,
.RadGrid_datasheet .rgHeader,
.RadGrid_datasheet .rgResizeCol,
.RadGrid_datasheet .rgPager,
.RadGrid_datasheet .rgGroupPanel,
.RadGrid_datasheet .rgGroupHeader
    cursor:default

.RadGrid_datasheet input[type="image"
    cursor:pointer

.RadGrid_datasheet .rgRow td,
.RadGrid_datasheet .rgAltRow td,
.RadGrid_datasheet .rgEditRow td,
.RadGrid_datasheet .rgFooter td,
.RadGrid_datasheet .rgFilterRow td,
.RadGrid_datasheet .rgHeader,
.RadGrid_datasheet .rgResizeCol,
.RadGrid_datasheet .rgGroupHeader td
    padding-left:0;
    padding-right:0;

.RadGrid_datasheet .rgClipCells .rgHeader,
.RadGrid_datasheet .rgClipCells .rgRow>td,
.RadGrid_datasheet .rgClipCells .rgAltRow>td
    overflow:hidden

.RadGrid_datasheet .rgAdd,
.RadGrid_datasheet .rgRefresh,
.RadGrid_datasheet .rgEdit,
.RadGrid_datasheet .rgDel,
.RadGrid_datasheet .rgFilter,
.RadGrid_datasheet .rgPagePrev,
.RadGrid_datasheet .rgPageNext,
.RadGrid_datasheet .rgPageFirst,
.RadGrid_datasheet .rgPageLast,
.RadGrid_datasheet .rgExpand,
.RadGrid_datasheet .rgCollapse,
.RadGrid_datasheet .rgSortAsc,
.RadGrid_datasheet .rgSortDesc,
.RadGrid_datasheet .rgUpdate,
.RadGrid_datasheet .rgCancel,
.RadGrid_datasheet .rgUngroup,
.RadGrid_datasheet .rgExpXLS,
.RadGrid_datasheet .rgExpDOC,
.RadGrid_datasheet .rgExpPDF,
.RadGrid_datasheet .rgExpCSV
    width:16px
    height:16px
    border:0;
    margin:0;
    padding:0;
    background-color:transparent
    background-image:url('Grid/sprite.gif');
    background-repeat:no-repeat
    vertical-align:middle
    font-size:1px
    cursor:pointer

.RadGrid_datasheet .rgGroupItem input,
.RadGrid_datasheet .rgCommandRow img,
.RadGrid_datasheet .rgHeader input,
.RadGrid_datasheet .rgFilterRow img,
.RadGrid_datasheet .rgFilterRow input,
.RadGrid_datasheet .rgPager img
    vertical-align:middle

/*header*/

.RadGrid_datasheet .rgHeaderDiv
    background:#eee 0 -7550px repeat-x url('../Images/sprite.gif');
.rgTwoLines .rgHeaderDiv
    background-position:0 -7050px

.rgNoScrollImage .rgHeaderDiv
    background-image:none

.RadGrid_datasheet .rgHeader,
.RadGrid_datasheet th.rgResizeCol
    padding-left:1px
    background:#eaeaea 0 -2300px repeat-x url('../Images/sprite.gif');
    font-familyArial
    font-size:8pt;
    font-weight:normal
    text-aligncenter
    vertical-align:middle

.RadGrid_datasheet th.rgSorted
    background-color:#c4c4c4
    background-position:0 -2600px

.RadGrid_datasheet .rgHeader,
.RadGrid_datasheet .rgHeader a
    color#333
    text-decoration:none

.RadGrid_datasheet .rgCheck
    height:15px
    margin-top:0;
    margin-bottom:0;
    padding:0;

/*rows*/

.RadGrid_datasheet .rgRow td,
.RadGrid_datasheet .rgAltRow td,
.RadGrid_datasheet .rgEditRow td,
.RadGrid_datasheet .rgFooter td
    border:0;

.RadGrid_datasheet .rgRow td
    padding:0px
    border-left:1px solid #D3D3D3
    border-bottom:1px solid #D3D3D3

.RadGrid_datasheet .rgAltRow, .RadGrid_datasheet .rgRow
    background:#fff
    height:22px

.RadGrid_datasheet .rgAltRow td
    padding:0px
    border-left:1px solid #D3D3D3
    border-bottom:1px solid #D3D3D3

.rgMasterTable td input
    border:0px none
    width:100%;
    height:100%;
    padding-left:3px
    font-family:Arial
    font-size:8pt

.rgMasterTable td input.rightright
{
    width:90%;
    height:100%;
    padding-right:3px
    font-family:Arial
    font-size:8pt

.rgMasterTable td a
    padding-left:3px
    font-family:Arial
    font-size:8pt
    text-decoration:underline
    color:red

.RadGrid_datasheet .rgRow .rgSorted
    border-bottom-color:#f2f2f2
    background-color:#f2f2f2

.RadGrid_datasheet .rgAltRow .rgSorted
    border-bottom-color:#e6e6e6
    background-color:#fff

.RadGrid_datasheet .rgSelectedRow .rgSorted,
.RadGrid_datasheet .rgActiveRow .rgSorted,
.RadGrid_datasheet .rgHoveredRow .rgSorted,
.RadGrid_datasheet .rgEditRow .rgSorted
    background-color:transparent

.RadGrid_datasheet .rgRow a,
.RadGrid_datasheet .rgAltRow a,
.RadGrid_datasheet .rgEditRow a,
.RadGrid_datasheet .rgFooter a,
.RadGrid_datasheet .rgEditForm a
    color:#000

.RadGrid_datasheet .rgSelectedRow
    background:#828282 0 -3900px repeat-x url('Grid/sprite.gif');
    color:#fff
*+html .RadGrid_datasheet .rgSelectedRow .rgSorted{background-color:#828282
* html .RadGrid_datasheet .rgSelectedRow .rgSorted{background-color:#828282

.RadGrid_datasheet .rgSelectedRow a
    color:#fff

.RadGrid_datasheet .rgActiveRow,
.RadGrid_datasheet .rgHoveredRow
    background:#c5c5c5 0 -2900px repeat-x url('Grid/sprite.gif');
    color:#333
*+html .RadGrid_datasheet .rgActiveRow .rgSorted,
*+html .RadGrid_datasheet .rgHoveredRow .rgSorted{background-color:#c5c5c5
* html .RadGrid_datasheet .rgActiveRow .rgSorted,
* html .RadGrid_datasheet .rgHoveredRow .rgSorted{background-color:#c5c5c5

.RadGrid_datasheet .rgEditRow
    background:#fff 0 -4900px repeat-x url('Grid/sprite.gif');
    color:#333
*+html .RadGrid_datasheet .rgEditRow .rgSorted{background-color:#fff
* html .RadGrid_datasheet .rgEditRow .rgSorted{background-color:#fff

.RadGrid_datasheet .rgActiveRow td,
.RadGrid_datasheet .rgActiveRow td.rgSorted,
.RadGrid_datasheet .rgHoveredRow td,
.RadGrid_datasheet .rgHoveredRow td.rgSorted
    border-bottom-color:#9e9e9e

.RadGrid_datasheet .rgSelectedRow td,
.RadGrid_datasheet .rgSelectedRow td.rgSorted
    border-bottom-color:#6c6c6c

/*footer*/

.RadGrid_datasheet .rgFooterDiv,
.RadGrid_datasheet .rgFooter
    background:#eee

.RadGrid_datasheet .rgFooter td
    border-top:1px solid #828282
    border-bottom:1px solid #fff

/*status*/

.RadGrid_datasheet .rgPager .rgStatus
    width:35px
    border:1px solid
    border-color:#828282 #c9c9c9 #eee #c9c9c9
    border-left:0;
    padding:3px 0 2px

.RadGrid_datasheet .rgStatus div
    width:24px
    height:24px
    overflow:hidden
    border:0;
    margin:0 auto
    padding:0;
    background:transparent center center no-repeat url('Common/loading_small.gif');
    text-indent:-2222px

/*pager*/

.RadGrid_datasheet .rgPager
    background:#eee

.RadGrid_datasheet .rgPager td
    padding:0;

.RadGrid_datasheet .rgPager .rgPagerCell
    border:1px solid
    border-color:#828282 #eee #eee
    border-right:0;
    padding:5px 0 4px

.RadGrid_datasheet .rgWrap
    float:left
    padding:0 10px
    line-height:22px
    whitewhite-space:nowrap

.RadGrid_datasheet .rgArrPart1
    padding-right:0;

.RadGrid_datasheet .rgArrPart2
    padding-left:0;

.RadGrid_datasheet .rgInfoPart
    float:rightright
    color:#8a8a8a

.RadGrid_datasheet .rgInfoPart strong
    font-weight:normal
    color:#4c4e54

.RadGrid_datasheet .rgArrPart1 img,
.RadGrid_datasheet .rgArrPart2 img
    margin:0 8px

.RadGrid_datasheet .rgPageFirst,
.RadGrid_datasheet .rgPagePrev,
.RadGrid_datasheet .rgPageNext,
.RadGrid_datasheet .rgPageLast
    width:22px
    height:22px
    vertical-align:top

.RadGrid_datasheet .NextPrev .rgPageFirst,
.RadGrid_datasheet .NextPrev .rgPagePrev,
.RadGrid_datasheet .NextPrev .rgPageNext,
.RadGrid_datasheet .NextPrev .rgPageLast
    vertical-align:middle

.RadGrid_datasheet .rgPageFirst
    background-position:0 -550px
.RadGrid_datasheet .rgPageFirst:hover
    background-position:0 -600px
.RadGrid_datasheet .rgPagePrev
    background-position:0 -700px
.RadGrid_datasheet .rgPagePrev:hover
    background-position:0 -750px
.RadGrid_datasheet .rgPageNext
    background-position:0 -850px
.RadGrid_datasheet .rgPageNext:hover
    background-position:0 -900px
.RadGrid_datasheet .rgPageLast
    background-position:0 -1000px
.RadGrid_datasheet .rgPageLast:hover
    background-position:0 -1050px

.RadGrid_datasheet .rgPager .rgPagerButton
    height:22px
    border:1px solid
    border-color:#d0d0d0 #aeaeae #8b8b8b
    margin:0 14px 0 0;
    padding:0 4px 2px
    background:#e8e8e8 repeat-x 0 -1550px url('Grid/sprite.gif');
    color:#000
    font:12px/12px "segoe ui",arial,sans-serif
    vertical-align:middle
    cursor:pointer

.RadGrid_datasheet .rgNumPart
    padding:0;

.RadGrid_datasheet .NumericPages .rgNumPart
    padding:0 10px

.RadGrid_datasheet .rgNumPart a:hover,
.RadGrid_datasheet .rgNumPart a:hover span,
.RadGrid_datasheet .rgNumPart a.rgCurrentPage,
.RadGrid_datasheet .rgNumPart a.rgCurrentPage span
    background:no-repeat url('Grid/sprite.gif');

.RadGrid_datasheet .rgNumPart a
    float:left
    line-height:22px
    margin:0;
    padding:0 5px 0 0;
    color:#000
    text-decoration:none

.RadGrid_datasheet .rgNumPart span
    float:left
    padding:0 0 0 5px

.RadGrid_datasheet .rgNumPart a:hover
    background-position:100% -1250px

.RadGrid_datasheet .rgNumPart a:hover span
    background-position:0 -1150px
    cursor:pointer

.RadGrid_datasheet .rgNumPart a.rgCurrentPage,
.RadGrid_datasheet .rgNumPart a.rgCurrentPage:hover
    background-position:100% -1450px
    cursor:datasheet;

.RadGrid_datasheet .rgNumPart a.rgCurrentPage span,
.RadGrid_datasheet .rgNumPart a.rgCurrentPage:hover span
    background-position:0 -1350px
    cursor:datasheet;

.RadGrid_datasheet .NextPrevNumericAndAdvanced .rgAdvPart
    float:none
    text-align:center

.RadGrid_datasheet .rgPager .RadSlider
    float:left
    margin:0 10px 0 0;

.RadGrid_datasheet .rgPagerLabel,
.RadGrid_datasheet .rgPager .RadComboBox,
.RadGrid_datasheet .rgPager .RadInput_datasheet
    margin:0 4px 0 0;
    vertical-align:middle

*+html .RadGrid_datasheet .rgPager .RadComboBox{margin-top:-1px;}
* html .RadGrid_datasheet .rgPager .RadComboBox{margin-top:-1px;padding:1px 0;}

.RadGrid_datasheet .rgPagerTextBox
    text-align:center

/*sorting, reordering*/

.RadGrid_datasheet .rgHeader .rgSortAsc
    background-position:3px -248px
    height:10px

.RadGrid_datasheet .rgHeader .rgSortDesc
    background-position:3px -198px
    height:10px

.GridReorderTop_datasheet,
.GridReorderBottom_datasheet
    width:9px !important;
    height:9px !important;
    margin-left:-5px
    background:0 0 no-repeat url('Grid/sprite.gif');

.GridReorderBottom_datasheet
    background-position:0 -50px

/*filtering*/

.RadGrid_datasheet .rgFilterRow
    background:#eee

.RadGrid_datasheet .rgFilterRow td
    border-bottom:1px solid #828282
    padding-top:4px
    padding-bottom:7px

.RadGrid_datasheet .rgFilter
    width:22px
    height:22px
    margin:0 0 0 2px
    background-position:0 -300px

.RadGrid_datasheet .rgFilter:hover
    background-position:0 -350px

.RadGrid_datasheet .rgFilterActive,
.RadGrid_datasheet .rgFilterActive:hover
    background-position:0 -400px

.RadGrid_datasheet .rgFilterBox
    border:1px solid
    border-color:#8e8e8e #c9c9c9 #c9c9c9 #8e8e8e
    padding:2px 1px 3px
    font:12px "segoe ui",arial,sans-serif
    color:#333
    vertical-align:middle

/*grouping*/

.RadGrid_datasheet .rgGroupPanel
    height:24px
    border:0;
    border-bottom:1px solid #828282
    background:#eee 0 -1900px repeat-x url('Grid/sprite.gif');

.RadGrid_datasheet .rgGroupPanel td
    border:0;
    padding:3px 4px

.RadGrid_datasheet .rgGroupPanel td td
    padding:0;

.RadGrid_datasheet .rgGroupPanel .rgSortAsc
    background-position:4px -144px

.RadGrid_datasheet .rgGroupPanel .rgSortDesc
    background-position:4px -94px

.RadGrid_datasheet .rgUngroup
    background-position:0 -6998px

.RadGrid_datasheet .rgGroupItem
    border:1px solid
    border-color:#c4c4c4 #c4c4c4 #9e9e9e
    padding:0 2px 1px 3px
    background:#c6c6c6 0 -6500px repeat-x url('Grid/sprite.gif');
    line-height:20px
    font-weight:normal
    vertical-align:middle

.RadGrid_datasheet .rgMasterTable td.rgGroupCol,
.RadGrid_datasheet .rgMasterTable td.rgExpandCol
    border-color:#d9d9d9
    background:#d9d9d9 none

.RadGrid_datasheet .rgGroupHeader
    background:#d9d9d9
    font-size:1.1em;
    line-height:21px
    color:#000

.RadGrid_datasheet .rgGroupHeader td
    border-top:1px solid #828282
    border-bottom:1px solid #d9d9d9
    padding-top:0;
    padding-bottom:0;

.RadGrid_datasheet .rgGroupHeader td.rgGroupCol
    border-top-color:#828282

.RadGrid_datasheet .rgExpand
    background-position:5px -496px

.RadGrid_datasheet .rgCollapse
    background-position:3px -444px

.RadGrid_datasheet .rgGroupHeader td p
    display:inline
    margin:0;
    padding:0 10px

.RadGrid_datasheet .rgGroupHeader td div div
    top:-0.8em;
    padding:0 10px

.RadGrid_datasheet .rgGroupHeader td div div div
    top:0;
    padding:0;
    border:0;

/*editing*/

.RadGrid_datasheet .rgEditForm
    border-bottom:1px solid #828282

.RadGrid_datasheet .rgUpdate
    background-position:0 -1800px

.RadGrid_datasheet .rgCancel
    background-position:2px -1848px

/*hierarchy*/

.RadGrid_datasheet .rgDetailTable
    border:1px solid #828282
    border-right-width:0;

/*command row*/

.RadGrid_datasheet .rgCommandRow
    background:#c5c5c5 0 -2099px repeat-x url('Grid/sprite.gif');
    color:#000

.RadGrid_datasheet .rgCommandCell
    border:1px solid
    border-color:#999 #f2f2f2
    border-top:0;
    padding:0;

.RadGrid_datasheet tfoot .rgCommandCell
    border-top:1px solid
    border-bottom:0;

.RadGrid_datasheet .rgCommandTable td
    border:0;
    padding:3px 7px 4px

.RadGrid_datasheet .rgCommandTable
    border:0;
    border-top:1px solid #fdfdfd
    border-bottom:1px solid #e7e7e7

.RadGrid_datasheet .rgCommandRow a
    color:#000
    text-decoration:none

.RadGrid_datasheet .rgAdd
    margin-right:3px
    background-position:0 -1650px

.RadGrid_datasheet .rgRefresh
    margin-right:3px
    background-position:0 -1600px

.RadGrid_datasheet .rgEdit
    background-position:0 -1700px

.RadGrid_datasheet .rgDel
    background-position:0 -1750px

.RadGrid_datasheet .rgExpXLS,
.RadGrid_datasheet .rgExpDOC,
.RadGrid_datasheet .rgExpPDF,
.RadGrid_datasheet .rgExpCSV
    background-image:url('../Common/Grid/export.gif');

.RadGrid_datasheet .rgExpXLS
    background-position:0 0;
.RadGrid_datasheet .rgExpDOC
    background-position:0 -50px
.RadGrid_datasheet .rgExpPDF
    background-position:0 -100px
.RadGrid_datasheet .rgExpCSV
    background-position:0 -150px

/*multirow select*/

.GridRowSelector_datasheet
    background:#4c4e54

/*row drag n drop*/

.GridItemDropIndicator_datasheet
    border-top:1px dashed #666

/*tooltip*/

.GridToolTip_datasheet
    border:1px solid #828282
    padding:3px
    background:#fff
    color:#333

/*rtl*/

.RadGridRTL_datasheet .rgHeader,
.RadGridRTL_datasheet .rgResizeCol
    text-align:rightright

.RadGridRTL_datasheet .rgPager .rgStatus
    border-right:0;
    border-left-width:1px

.RadGridRTL_datasheet .rgWrap
    float:rightright

.RadGridRTL_datasheet .rgInfoPart
    float:left

.RadGridRTL_datasheet .rgNumPart
    width:220px

.RadGridRTL_datasheet .rgNumPart a
    float:rightright

.RadGridRTL_datasheet .rgPageFirst
    background-position:0 -1000px
.RadGridRTL_datasheet .rgPageFirst:hover
    background-position:0 -1050px
.RadGridRTL_datasheet .rgPagePrev
    background-position:0 -850px
.RadGridRTL_datasheet .rgPagePrev:hover
    background-position:0 -900px
.RadGridRTL_datasheet .rgPageNext
    background-position:0 -700px
.RadGridRTL_datasheet .rgPageNext:hover
    background-position:0 -750px
.RadGridRTL_datasheet .rgPageLast
    background-position:0 -550px
.RadGridRTL_datasheet .rgPageLast:hover
    background-position:0 -600px

.RadGridRTL_datasheet .rgDetailTable
    border-right-width:1px
    border-left-width:0;




Tags
Grid
Asked by
Jeremy Yoder
Top achievements
Rank 1
Answers by
Princy
Top achievements
Rank 2
Jeremy Yoder
Top achievements
Rank 1
Erwin Floresca
Top achievements
Rank 1
Share this question
or
