[Solved] add Horizontal line to a Column Chart

2 Answers 322 Views

Chart (Obsolete)

This is a migrated thread and some comments may be shown as answers.

Luc Émond asked on 22 Aug 2013, 02:42 PM


Hi i using a HtmlChart - Column Chart.

How can i had an horizontal passing line in my chart.
I would like to one put a passing line at 55

Please refer to this link a put an horontal line in photoshop to show you what i need.

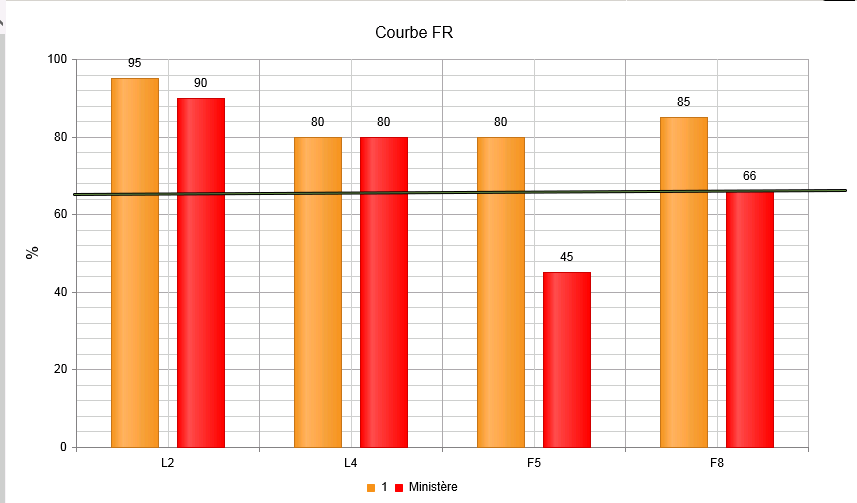

Exemple

For now i use this code :
Tks

<telerik:RadHtmlChart runat="server" ChartTitle-Text="Courbe FR" ID="RadHtmlChart1" Width="800" Height="500">

<PlotArea>

<Series>

<telerik:ColumnSeries Name="District">

<TooltipsAppearance Color="White" />

<SeriesItems>

<telerik:CategorySeriesItem Y="95" />

<telerik:CategorySeriesItem Y="80" />

<telerik:CategorySeriesItem Y="85" />

</SeriesItems>

</telerik:ColumnSeries>

<telerik:ColumnSeries AxisName="AdditionalAxis" Name="Ministère">

<Appearance>

<FillStyle BackgroundColor="Red" />

</Appearance>

<TooltipsAppearance Color="White" />

<SeriesItems>

<telerik:CategorySeriesItem Y="90" />

<telerik:CategorySeriesItem Y="80" />

<telerik:CategorySeriesItem Y="45" />

<telerik:CategorySeriesItem Y="66" />

</SeriesItems>

</telerik:ColumnSeries>

</Series>

<YAxis MinValue="0">

<TitleAppearance Text="%" />

</YAxis>

<AdditionalYAxes>

<telerik:AxisY Name="AdditionalAxis" Visible="false" Color="Red" Width="3">

<TitleAppearance Text="%" Visible="false" />

</telerik:AxisY>

</AdditionalYAxes>

<Series>

<telerik:BarSeries Name="Seuil">

<Appearance>

<FillStyle BackgroundColor="Red"></FillStyle>

</Appearance>

<LabelsAppearance Position="Center">

</LabelsAppearance>

<TooltipsAppearance BackgroundColor="Red"></TooltipsAppearance>

<SeriesItems>

<telerik:CategorySeriesItem Y="55"></telerik:CategorySeriesItem>

</SeriesItems>

</telerik:BarSeries>

</Series>

<XAxis>

<LabelsAppearance />

<Items>

<telerik:AxisItem LabelText="L2" />

<telerik:AxisItem LabelText="L4" />

<telerik:AxisItem LabelText="F5" />

<telerik:AxisItem LabelText="F8" />

</Items>

</XAxis>

</PlotArea>

<Legend>

<Appearance Position="Bottom" />

</Legend>

</telerik:RadHtmlChart>

2 Answers, 1 is accepted

answered on 27 Aug 2013, 10:05 AM

Hello Luc,

I am sorry to say that currently RadHtmlChart doesn't support marked zones. Such a feature request, however, has already been logged as a PITS item here, so that you can monitor, comment or raise its priority by voting on it.

For the time being you can add a new LineSeries, to the current chart that will has its markers and labels disabled. Such an approach is illustrated in HtmlChart - Static Items online demo. Note, however, that the additional series will be reflected in the legend as well.

Regards,
Danail Vasilev
Telerik
