Troubleshooting macOS Trust Certificate Issues

Environment

Description

To capture secure (HTTPS) traffic on macOS, Fiddler Everywhere requires the installation of a root CA (certificate authority) in the macOS Keychain Access application. This process failed and I'd like to know how can I handle the "Fiddler root certificate NOT trusted successfully" error?

Solution

Test the import of the Fiddler Everywhere root certificate on macOS by using custom bash scripts and terminal commands.

1. Create a Bash file, for example, import.sh.

2. Save the following script in import.sh:

   Bash

   login_keychains_paths=$(security list-keychains | grep -e "\Wlogin.keychain\W");

   if [ -z "$login_keychains_paths" ]
       then
           echo "No login keychain found.";
           exit 10;
   fi
   security add-trusted-cert -k login.keychain ~/Desktop/Fiddler_Root_Certificate_Authority.crt;

   security_exit_code=$?;
   if [ $security_exit_code -ne 0 ]
       then
           echo "security add-trusted-cert failed with error code $security_exit_code";
   fi

3. Make the import.sh file executable.

   Bash

   chmod +x import.sh

4. Execute the created file in your Bash shell.

   Bash

   ./import.sh

5. After successfully executing the file, you will be prompted for your macOS username and password. Enter the credentials, and the generated root CA adds in the Keychain Access application in login > Certificates as Fiddler Root Certificate Authority.

6. Test that the certificate generated from Fiddler is successfully installed and trusted by running the following command in your Bash shell:

   Bash

   security trust-settings-export /tmp/trustSettings.xml

   As a result, the command outputs a success message:

   Bash

   ...Trust Settings exported successfully.

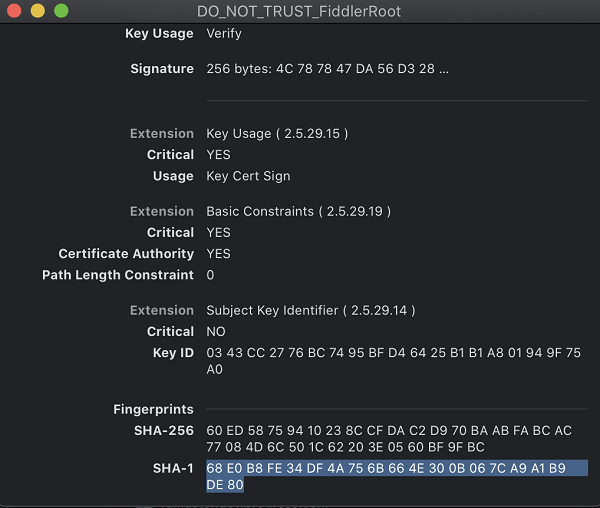

7. Go to login > Certificates and confirm that the Fiddler Root Certificate Authority is present in the Keychain Access application. Double-click the CA, scroll to the bottom and note the SHA-1 value. Open the exported settings file from /tmp/trustSettings.xml and check that the SHA-1 value is present there. For example, the certificate from your Keychain Access application will be identical to the SHA-1.

   The SHA-1 key in the trustSettings.xml file will also be present in the Keychain Access application.

   XML

   <key>68E0B8FE34DF4A756B664E300B067CA9A1B9DE8</key>



8. (Optional) Delete the /tmp/trustSettings.xml file after troubleshooting the issue as it's only needed to check that the SHA-1 key is properly exported.
