You may often find that it's useful to display overlay curves in a Telerik Reporting Graph item. Whether you want to show an upper-limit, lower-limit, or how well your data fits a normal distribution – a curve line based on a mathematical function can be very handy. The issue is that the Graph Item was designed to display explicit literal values based on a discrete dataset. How then can an overlay be added to the graph when the Y-axis values are not found in the data? Keeping reading to find out.

In this example we're using data from the Northwind dataset to produce a real-world graph of sales figures for the month of July. However, the style and data for the underlying graph doesn't necessarily matter for the overlay.

Standard Column Graph

Let's assume that an overzealous Sales Manager expects their team to achieve exponential growth for the month of July and wanted to add an overlay to this graph. Those values aren't contained in the source data – so how can they be charted?

The trick lies in the built-in ColumnNumber() function in Telerik Reporting. The ColumnNumber() function provides a 1 for the first value, 2 for the second value, and so on. This becomes the X variable in your math function. You may then derive Y as a function of X.

Let's work through a concrete example using the simple linear progression: $$f(x) = y$$

The first step is to add a new cartesianCoordinateSystem to the Graph's CoordinateSystem Collection.

CoordinateSystems Collection Editor

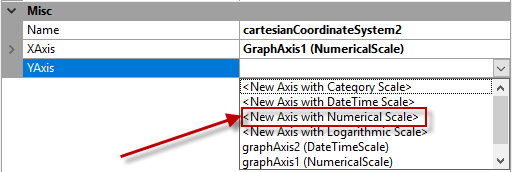

In the new cartesianCoordinateSystem, create a new NumericalScale for both the XAxis and YAxis.

YAxis New Numerical Scale

The next step is to create the actual Series that will produce the linear progression. Open the Series Collection Editor for the Graph, and add a new Line Series.

Series Collection Editor

Add New LineSeries

Set the following properties for the new Line Series:

  • Appearance -> LineType : Smooth
  • CoordinateSystem: (Select the CoordinateSystem you created above)
  • Data -> CategoryGroup: (select the existing CategoryGroup that was created with the data-bound series)
  • Data -> SeriesGroup: (select the existing SeriesGroup that was created with the data-bound series)
  • Data -> X: = ColumnNumber() (The equal sign is required)
  • Data -> Y: = ColumnNumber()

Click OK and you'll see the new linear progression in the Graph:

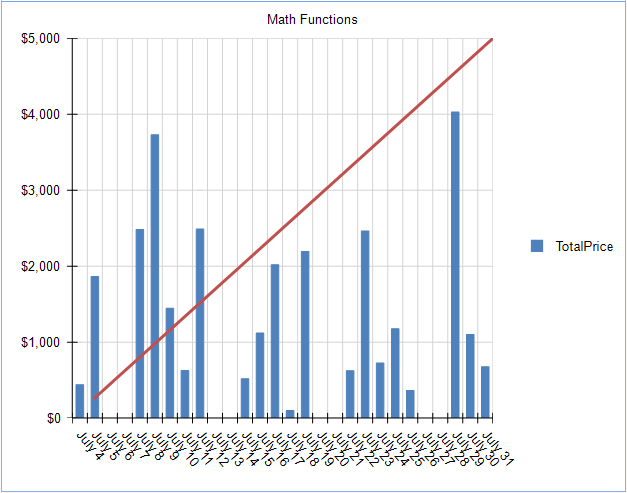

Graph with Linear Progression overlay

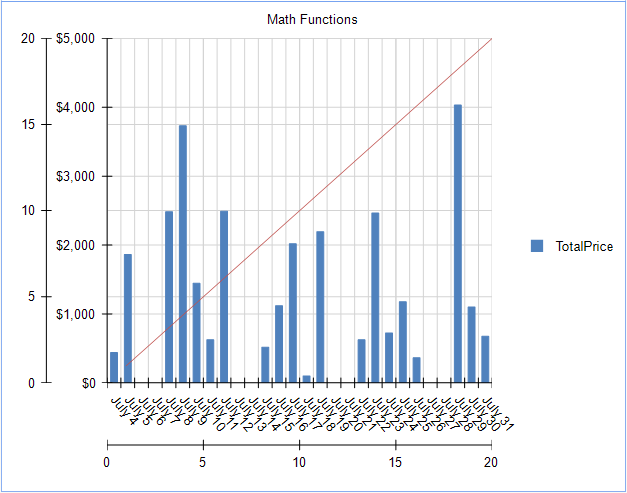

This Graph is fully functional now, but it doesn't look great – so let's hide some of the extra Scales and Gridlines.

Open the GraphCoordinateSystem Collection Editor again – and select the new cartesianCoordinateSystem we created for the linear progression. Update the following properties.

  • Misc -> XAis -> MajorGridLineStyle -> Visible : False
  • Misc -> YAis -> MajorGridLineStyle -> Visible : False
  • Misc -> XAis -> Style -> Visible : False
  • Misc -> YAis -> Style -> Visible : False

Let's also make the Line in the linear progression easier to see. Open the Series Collection Editor and apply the following style to the LineSeries.

  • Appearance -> LineStyle -> LineWidth : 3px

Graph with Styled Linear Progression

Now that we're created a Series and CoordinateSystem dedicated to math functions, changing the function is very easy. Let's change to an exponential progression.

To accomplish this, simply update the Y value in the series.

Modify X and Y values for Series

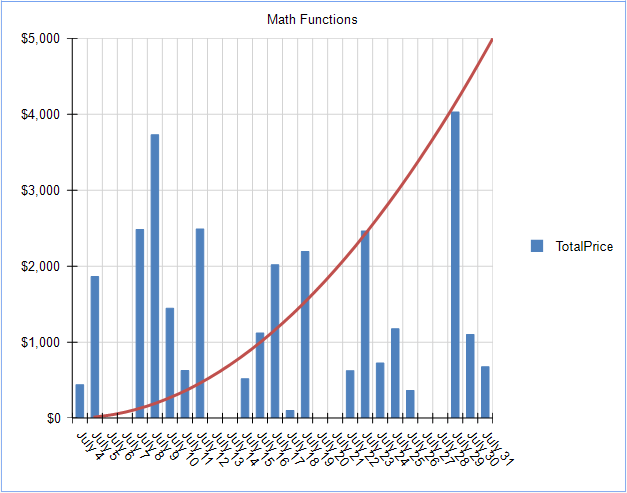

Graph with Exponential overlay

We can get more advanced and generate a Sine Wave by changing the expression again:

X and Y expressions for Sine Wave

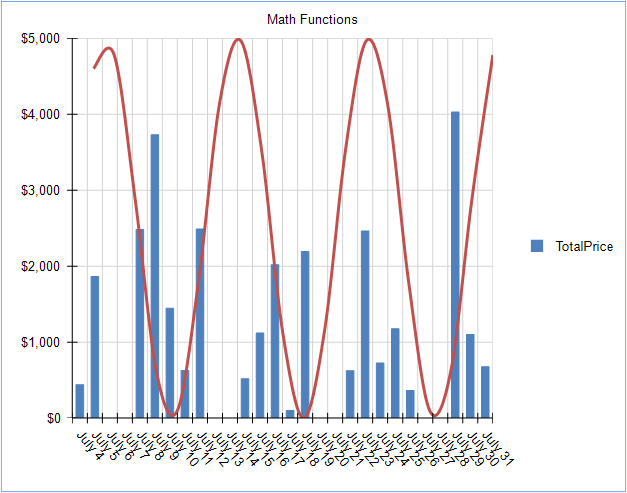

Graph with Sine Wave overlay

Up to this point, we've handled simple math functions, but what about something a little more advanced, such as a Normal Distribution equation: $$f(x) = {1 \over \delta\sqrt{2\pi}}e^{-{1/2 ({x-u \over {\delta}})}}$$

This equation is too complex to be expressed with the Telerik Reporting expression editor. However, this is a perfect use-case for a User Function. User functions allow you to build custom expressions in C# or VB.NET, and utilize them seamlessly in the Telerik Reporting expression editor.

For example, the above equation can be expressed in C# using the following method.

[Function(Category = "Curves", Namespace = "Math", Description = "Normal Curve")]
  public static double NormalCurve(double x, double mean, double stdDev)
  {
    double y = (1 / (stdDev * Math.Sqrt(2 * Math.PI))) * Math.Exp(-1 * (Math.Pow(x - mean, 2) / (2 * Math.Pow(stdDev, 2))));
    return y;
  }

Which when applied to the Y value of the LineSeries, produces a normal distribution curve:

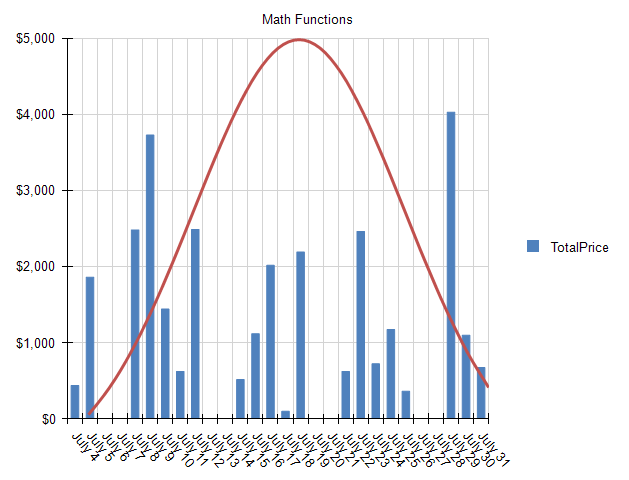

Graph with Normal Curve overlay

You can see that the Telerik Reporting Graph Item, when combined with User Functions, can display any math functions that produce discrete values.

What curves can you create using this technique? Share your results in the comments below!
