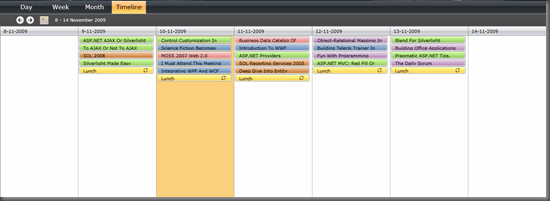

Along with other main features like standard resources and resource grouping, the Q3 2009 release brought an additional view to the present ones (Day, Week and Month) – Timeline. Briefly said, it displays a certain number of consecutive time slots and like all other views, the Timeline view is configurable in almost the same way. Here is how it looks like by default:






… where each time slot is 1 day long (i.e. TimeSlotLength of the TimelineViewDefinition is equal to one day) and the date in each header is displayed in a “d-M-yyyy” format.

Let’s tweak a bit some of the settings related to the Timeline view and add some resources:



<telerik:RadScheduler Grid.Row="0" x:Name="scheduler" TimelineHeaderFormat="{}{0:H:mm tt}" GroupBy="Person" >

<telerik:RadScheduler.TimelineViewDefinition>

<telerik:TimelineViewDefinition DayStartTime="08:00:00" DayEndTime="19:00:00" TimeSlotLength="1:0:0" VisibleDays="1" />
            </
telerik:RadScheduler.TimelineViewDefinition>


<telerik:RadScheduler.ResourceTypes>

<telerik:ResourceType Name="Person" AllowMultipleSelection="True" >

<telerik:ResourceType.Resources>

<telerik:Resource ResourceName="Rosi" />
                        <
telerik:Resource ResourceName="Toti" />
                    </
telerik:ResourceType.Resources>

</telerik:ResourceType>

</telerik:RadScheduler.ResourceTypes>

<telerik:RadScheduler.ResourceStyleMappings>

<telerik:ResourceStyleMapping ResourceType="Person" ResourceName="Rosi" ResourceBrush="LightPink" />
                <
telerik:ResourceStyleMapping ResourceType="Person" ResourceName="Toti" ResourceBrush="LightBlue" />
            </
telerik:RadScheduler.ResourceStyleMappings>

</telerik:RadScheduler>

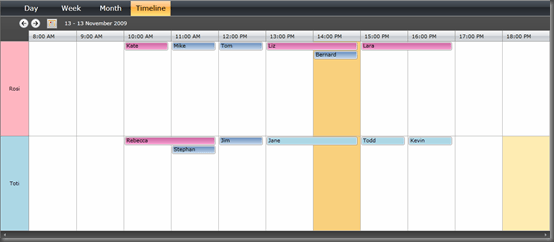

As you see setting the DayStartTime and DayEndTime properties allow us to show only working hours and thus concentrating on what is important.



Hope this will be of use!
