Structure

Updated over 6 months ago

This article describes the inner structure and organization of the elements which build the RadRadialGauge control.

Figure 1: RadRadialGauge`s Element Hierarchy

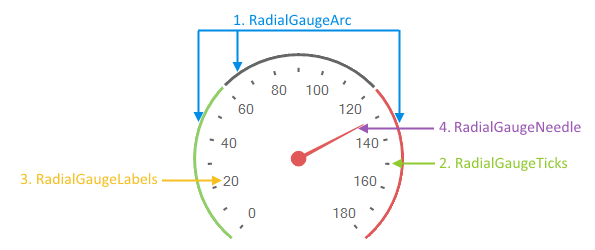

Figure 2: RadRadialGauge`s Structure

1. RadialGaugeArc: This element represents a band spanning across the measure.

2. RadialGaugeTicks: Elements displayed below the arc.

3. RadialGaugeLabels: Scale labels representing the measure.

4. RadialGaugeNeedle: Allows you to show labels next to the scale ticks.
