Shape Report Item Overview

The Shape report item displays a single selection of predefined shapes in a report.

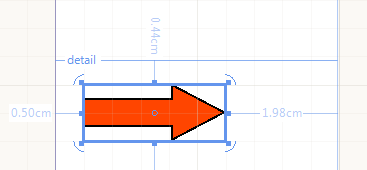

The following screenshot shows a Shape report item with its ShapeType="Right Arrow" on the report design surface.

A Shape report item having its shape set to right arrow

You can use shapes to create visual effects within a report. You can set display and other properties to this item by using the Properties pane.

The following table lists the ShapeType property modes supported by the Shape.

Lines	Stars	Arrows	Other
Vertical Line	3-ray star	Top Arrow	Ellipse
Horizontal Line	4-ray star	Bottom Arrow	Triangle
Slant Line	5-ray star	Left Arrow	Square
BackSlant Line	6-ray star	Right Arrow	Pentagon
	8-ray star		Hexagon
			Octagon
			Cross

The Shape enables you to create custom shapes programmatically. The following code snippet shows how to inherit the ShapeBase class and provide a custom set of PointF arrays that will form the Shape. The coordinates of the points are relative and do not depend on the size or position of the item in the report.

C#
        class CustomShapeType : Drawing.Shapes.ShapeBase
        {
            public override object Clone()
            {
                return new CustomShapeType()
                {
                    Bounds = this.Bounds
                };
            }

            protected override void CreateShape()
            {
                var points = new System.Drawing.PointF[]
                {
                    new System.Drawing.PointF(0.5f, 1.5f),
                    new System.Drawing.PointF(2, 0),
                    new System.Drawing.PointF(6, 4),
                    new System.Drawing.PointF(4, 6),
                    new System.Drawing.PointF(2, 4),
                    new System.Drawing.PointF(6, 0),
                    new System.Drawing.PointF(7.5f, 1.5f)
                };

                base.AddLines(points, false);
            }
        }
VB.NET
    Class CustomShapeType
        Inherits Drawing.Shapes.ShapeBase

        Public Overrides Function Clone() As Object
            Return New CustomShapeType() With {.Bounds = Me.Bounds}
        End Function

        Protected Overrides Sub CreateShape()
            Dim points = New System.Drawing.PointF() {New System.Drawing.PointF(0.5F, 1.5F), New System.Drawing.PointF(2, 0), New System.Drawing.PointF(6, 4), New System.Drawing.PointF(4, 6), New System.Drawing.PointF(2, 4), New System.Drawing.PointF(6, 0), New System.Drawing.PointF(7.5F, 1.5F)}
            MyBase.AddLines(points, False)
        End Sub
    End Class

You can create the Shape at runtime and add it to a report item container (Section, Panel, or other). The following snippet shows how to instantiate a Shape of the CustomShape type:

C#
        Shape CreateShape()
        {
            var shape = new Telerik.Reporting.Shape()
            {
                ShapeType = new CustomShapeType(),
                Size = new Drawing.SizeU(Drawing.Unit.Cm(2), Drawing.Unit.Cm(2)),
                Location = new Drawing.PointU(Drawing.Unit.Cm(1), Drawing.Unit.Cm(1)),
            };
            shape.Style.Color = System.Drawing.Color.Green;
            shape.Style.LineWidth = Drawing.Unit.Pixel(5);

            return shape;
        }

VB.NET
    Private Function CreateShape() As Shape
        Dim shape = New Telerik.Reporting.Shape() With {.ShapeType = New CustomShapeType(), .Size = New Drawing.SizeU(Drawing.Unit.Cm(2), Drawing.Unit.Cm(2)), .Location = New Drawing.PointU(Drawing.Unit.Cm(1), Drawing.Unit.Cm(1))}
        shape.Style.Color = System.Drawing.Color.Green
        shape.Style.LineWidth = Drawing.Unit.Pixel(5)
        Return shape
    End Function
