Customize the Advanced Form Template

Overview

The Advanced Templates provide great flexibility for customizing the Advanced Form. However, a common problem when using the AdvancedInsertTemplate or the AdvancedEditTemplate is that the functionality related to recurrence and resources is lost. In other words, if you chose to customize the advanced form you will not be able to insert or edit recurring appointments or appointments with resources, unless you implement this functionality from scratch. For instance, consider the Templates online example.

The solution which we offer is a set of user controls that recreates the default advanced form, yet allowing for unrestricted customization. We will show how to use the advanced form controls in both Server Side and Client Side binding scenarios.

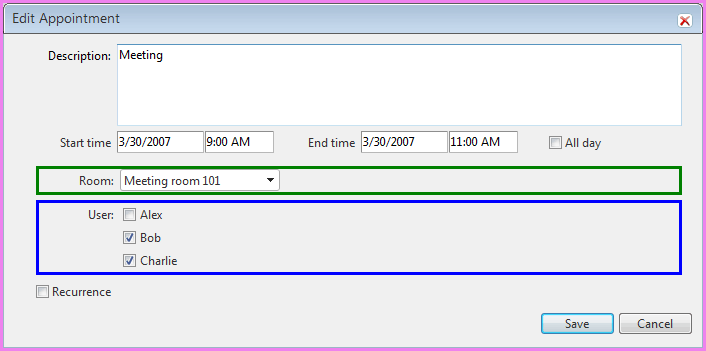

Here is the structure of the advanced form with each user control outlined with different border style:

default custom advanced form

Legend:

  • AdvancedForm.ascx

  • ResourceControl.ascx

  • MultipleValuesResourceControl.ascx

  • BooleanAttributeControl.ascx is not shown here, but it can be used in AdvancedForm.ascx just like ResourceControl.ascx

The above user controls can be found in the folder of your local installation of Telerik.Web.UI suit ->

Live Demos\Scheduler\Examples*AdvancedFormTemplate

For an online demo, please see the Advanced Templates example.

You can also download acode library sample of customizing the advanced form with RadScheduler popultated with various data sources:

  • CustomDbProvider

  • ObjectDataSource

  • SqlDataSource

  • WebServiceBinding

  • XmlSchedulerProvider

How to use the advanced user controls in Server Side binding mode

Our task in this tutorial will be to understand how the RadColorPicker control was added to allow to save the selected color in a custom attribute and apply it to the appointment in the AppointmentDataBound event.

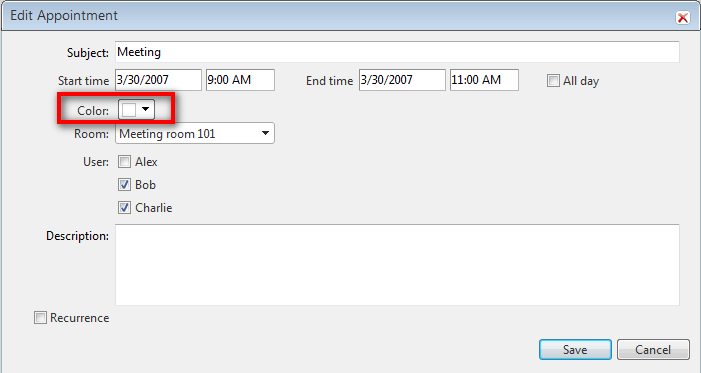

The advanced form looks like this:

custom advanced form with color picker

  1. Open the Advanced Templates demo locally.

  2. In AdvancedForm.ascx add the following code right above the Custom Attributes panel:

    ASP.NET
     <label>Color: </label>
 <telerik:RadColorPicker RenderMode="Lightweight" ID="AppointmentColorPicker" CssClass="rsAdvResourceValue" NoColorText="transparent" ShowIcon="true" PaletteModes="HSV"
    runat="server">
 </telerik:RadColorPicker>

  3. Expose an AppointmentColor property using the RadColorpicker control added in step 2 above.

    In code behind of AdvancedForm.ascx add the following code in the "Attributes and resources" region:

    C#
     // Attributes and resources
 [Bindable(BindableSupport.Yes, BindingDirection.TwoWay)]
 public string AppointmentColor
 {
 	get
 	{
 		return AppointmentColorPicker.SelectedColor.ToArgb().ToString();
 	}
 	set
 	{
 		int argbValue;
 		if (int.TryParse(value, out argbValue))
 			AppointmentColorPicker.SelectedColor = Color.FromArgb(argbValue);
 	}
 }
    VB
     ' Attributes and resources
 <Bindable(BindableSupport.Yes, BindingDirection.TwoWay)> _
 Public Property AppointmentColor() As String
 	Get
 		Return AppointmentColorPicker.SelectedColor.ToArgb().ToString()
 	End Get
 	Set(ByVal value As String)
 		Dim argbValue As Integer
 		If Integer.TryParse(value, argbValue) Then
 			AppointmentColorPicker.SelectedColor = Color.FromArgb(argbValue)
 		End If
 	End Set
 End Property

  4. In DefaultCS.aspx or DefaultVB.aspx

    • set CustomAttributeName="AppointmentColor"
    • bind the AppointmentColor property you have exposed in the AdvancedForm user control
    • add css style to fix the RadColopicker's label

    optionally -

    • set Localization-AdvancedDescription="Subject"
    • add AppointmentTemplate to display the subject and description
    • add .rsAptSubject css class
    JavaScript
     <telerik:RadScheduler RenderMode="Lightweight" runat="server" ID="RadScheduler1" Width="750px" SelectedDate="2009-03-30"
    DayStartTime="08:00:00" DayEndTime="18:00:00" CustomAttributeNames="AppointmentColor" Localization-AdvancedDescription="Subject"
    TimeZoneOffset="03:00:00" OnDataBound="RadScheduler1_DataBound" OnAppointmentDataBound="RadScheduler1_AppointmentDataBound"
    OnClientFormCreated="schedulerFormCreated">
    <AdvancedForm Modal="true" />
    <AppointmentTemplate>
   <div class="rsAptSubject">
    <%# Eval("Subject") %>
   </div>
   <%# Eval("Description") %>
  </AppointmentTemplate>
    <AdvancedEditTemplate>
 	   <scheduler:AdvancedForm runat="server" ID="AdvancedEditForm1" Mode="Edit" Subject='<%# Bind("Subject") %>'
 		   Start='<%# Bind("Start") %>' End='<%# Bind("End") %>' AppointmentColor='<%# Bind("AppointmentColor") %>'
 		   RecurrenceRuleText='<%# Bind("RecurrenceRule") %>' UserID='<%# Bind("User") %>'
 		   RoomID='<%# Bind("Room") %>' />
    </AdvancedEditTemplate>
    <AdvancedInsertTemplate>
 	   <scheduler:AdvancedForm runat="server" ID="AdvancedInsertForm1" Mode="Insert" Subject='<%# Bind("Subject") %>'
 		   Start='<%# Bind("Start") %>' End='<%# Bind("End") %>' AppointmentColor='<%# Bind("AppointmentColor") %>'
 		   RecurrenceRuleText='<%# Bind("RecurrenceRule") %>' UserID='<%# Bind("User") %>'
 		   RoomID='<%# Bind("Room") %>' />
    </AdvancedInsertTemplate>
 </telerik:RadScheduler>
    CSS
     <style type="text/css">
 .RadScheduler .rsAptSubject
 {
    text-align: left;
    padding: 4px 0 1px;
    margin: 0 0 3px;
    font-size: 12px;
    font-weight: bold;
    color: #369;
    height: 17px;
    border-bottom: 1px solid #99DEFD;
    width: 100%;
 }
 .RadScheduler .rsAdvancedEdit .RadColorPicker label
 {
  text-align: left;
  display: block;
  padding: 0;
 }

 </style>

  5. In code behind of Default.aspx, handle AppointmentDataBound like this to set the color of the appointments:

    C#
     protected void RadScheduler1_AppointmentDataBound(object sender, SchedulerEventArgs e)
 {
 	int AppointmentArgbColorValue;
 	if (int.TryParse(e.Appointment.Attributes["AppointmentColor"], out AppointmentArgbColorValue))
 	{
 		e.Appointment.BackColor = Color.FromArgb(AppointmentArgbColorValue);
 		e.Appointment.BorderColor = Color.Black;
 		e.Appointment.BorderStyle = BorderStyle.Solid;
 		e.Appointment.BorderWidth = Unit.Pixel(1);
 	}
 	e.Appointment.ToolTip = e.Appointment.Subject + ": " + e.Appointment.Description;
 }
    VB
     Protected Sub RadScheduler1_AppointmentDataBound(ByVal sender As Object, ByVal e As SchedulerEventArgs)
 	Dim AppointmentArgbColorValue As Integer
 	If Integer.TryParse(e.Appointment.Attributes("AppointmentColor"), AppointmentArgbColorValue) Then
 		e.Appointment.BackColor = Color.FromArgb(AppointmentArgbColorValue)
 		e.Appointment.BorderColor = Color.Black
 		e.Appointment.BorderStyle = BorderStyle.Solid
 		e.Appointment.BorderWidth = Unit.Pixel(1)
 	End If
 	e.Appointment.ToolTip = e.Appointment.Subject + ": " + e.Appointment.Description
 End Sub

  6. Register AdvancedForm.jswith the script manager for the page and handle RadScheduler's OnClientFormCreatedevent.

    This is actually already done in the sample demo. This step is to serve just as a reminder.

    ASP.NET
     <asp:ScriptManager ID="ScriptManager1" runat="server">
    <Scripts>
 	   <asp:ScriptReference Path="~/Modified_AddedDescription/CS/AdvancedForm.js" />
    </Scripts>
 </asp:ScriptManager>

 <script type="text/javascript">
    //<![CDATA[
 	 // Dictionary containing the advanced template client object
 	 // for a given RadScheduler instance (the control ID is used as key).
 	 var schedulerTemplates = {};

 	 function schedulerFormCreated(scheduler, eventArgs) {
 		 // Create a client-side object only for the advanced templates
 		 var mode = eventArgs.get_mode();
 		 if (mode == Telerik.Web.UI.SchedulerFormMode.AdvancedInsert ||
 	mode == Telerik.Web.UI.SchedulerFormMode.AdvancedEdit) {
 			 // Initialize the client-side object for the advanced form
 			 var formElement = eventArgs.get_formElement();
 			 var templateKey = scheduler.get_id() + "_" + mode;
 			 var advancedTemplate = schedulerTemplates[templateKey];
 			 if (!advancedTemplate)
 			 {
 				 // Initialize the template for this RadScheduler instance
 				 // and cache it in the schedulerTemplates dictionary
 					var schedulerElement = scheduler.get_element();
 					var isModal = scheduler.get_advancedFormSettings().modal;
 					advancedTemplate = new window.SchedulerAdvancedTemplate(schedulerElement, formElement, isModal);
 					advancedTemplate.initialize();

 					schedulerTemplates[templateKey] = advancedTemplate;
 			 }
 			 // Are we using Web Service data binding?
 			 if (!scheduler.get_webServiceSettings().get_isEmpty()) {
 				 // Populate the form with the appointment data
 				 var apt = eventArgs.get_appointment();
 				 var isInsert = mode == Telerik.Web.UI.SchedulerFormMode.AdvancedInsert;
 				 var editSeries = eventArgs.get_editingRecurringSeries();
 				 advancedTemplate.populate(apt, isInsert, editSeries);
 			 }
 		 }
 	 }

 //]]>
 </script>
 <telerik:RadScheduler RenderMode="Lightweight" runat="server" ID="RadScheduler1"
  OnClientFormCreated="schedulerFormCreated" .../>

  7. Run and test the application. If you experience problems, please refer to the Modified_AddedDescription folder for a solution.

How to use the advanced user controls in Client Side binding mode (Web Services)

The AdvancedForm.js will automatically handle resources and custom attributes defined in AdvancedForm.ascx, as long as you follow a certain naming convention.

  • Resource controls should follow the convention Res[Resource Name] for ID. For example:
ASPNET

<scheduler:ResourceControl runat="server" ID="ResRoom" Type="Room" Label="Room:" Skin='<%# Owner.Skin %>' />
  • Attribute controls should follow the convention Attr[Attribute Name] for ID. For example:
ASPNET

<telerik:RadTextBox RenderMode="Lightweight" runat="server" ID="AttrDescription"  Label='Annotation:' Width="100%" Skin='<%# Owner.Skin %>' />

In this tutorial, we will show how to add to the advanced form a RadColorPicker which will allow you to save the selected color in a custom attribute and apply it to the appointment in the OnClientAppointmentDataBound event. Since it will not be a RadTextBox control, we cannot use the built-in logic of AdvancedForm.js that recognizes custom attributes. So, there will be some extra code to be added to AdvancedForm.js

  1. Download a sample project from here.

  2. In RadSchedulerAdvancedForm.aspx add AppointmentColor custom attribute for RadScheduler -CustomAttributeNames="AppointmentColor"

  3. In AdvancedForm.ascx add the following code right above the Custom Attributes panel:

    ASP.NET
     <label>Color: </label>
 <telerik:RadColorPicker RenderMode="Lightweight" ID="AppointmentColorPicker" CssClass="rsAdvResourceValue" NoColorText="transparent" ShowIcon="true" PaletteModes="HSV"
    runat="server">
 </telerik:RadColorPicker>

  4. In code-behind of the AdvancedForm user control add the following code:

    C#
     // Attributes and resources
 [Bindable(BindableSupport.Yes, BindingDirection.TwoWay)]
 public string AppointmentColor
 {
 	get
 	{
 		return AppointmentColorPicker.SelectedColor.ToArgb().ToString();
 	}
 	set
 	{
 		int argbValue;
 		if (int.TryParse(value, out argbValue))
 			AppointmentColorPicker.SelectedColor = Color.FromArgb(argbValue);
 	}
 }
    VB
     ' Attributes and resources
 <Bindable(BindableSupport.Yes, BindingDirection.TwoWay)> _
 Public Property AppointmentColor() As String
 	Get
 		Return AppointmentColorPicker.SelectedColor.ToArgb().ToString()
 	End Get
 	Set(ByVal value As String)
 		Dim argbValue As Integer
 		If Integer.TryParse(value, argbValue) Then
 			AppointmentColorPicker.SelectedColor = Color.FromArgb(argbValue)
 		End If
 	End Set
 End Property

  5. In AdvancedForm.js add a method to get the client object of RadColorPicker:

    JavaScript
     _getAppointmentColorPicker: function() {
    return $find(this._templateId + "_AppointmentColorPicker");
 }

  6. Add a method to save the RadColorPicker's selected color to the AppointmentColor custom attribute.

    JavaScript
     _saveAppointmentColor: function(apt) {
    var template = this;
    var aptAttributes = apt.get_attributes();
    var appointmentColorPicker = this._getAppointmentColorPicker();
    if (!appointmentColorPicker)
 	   return;
    aptAttributes.removeAttribute("AppointmentColor");
    aptAttributes.setAttribute("AppointmentColor",   appointmentColorPicker.get_selectedColor());
 }

  7. In the populate method, set the RadColorPicker'sselected color to the value of the AppointmentColor custom attribute:

    JavaScript
     populate: function(apt, isInsert, editSeries) {
  * * *
   this._getAppointmentColorPicker().set_selectedColor(apt.get_attributes().getAttribute("AppointmentColor"));

  * * *
 }

  8. In the saveClicked method, call saveAppointmentColor():

    JavaScript
     _saveClicked : function ()
 {
  * * *
    this._saveAppointmentColor(apt);
  * * *
 }

  9. In Default.aspx handle OnClientAppointmentDataBound like this to apply the selected color to the appointment:

    JavaScript
     function OnClientAppointmentDataBound(sender, eventArgs) {
    var app = eventArgs.get_appointment();
    //debugger;
    var backColor = app.get_attributes().getAttribute("AppointmentColor");

    if (backColor)
 	   app.set_backColor(backColor);

    app.set_borderColor("black");
    app.set_borderWidth("1");
  }
 //]]>
 </script>
 <telerik:RadScheduler RenderMode="Lightweight" runat="server" ID="RadScheduler1"
 	OnClientAppointmentDataBound="OnClientAppointmentDataBound">
 </telerik:RadScheduler>

  10. In Default.aspx add the following css fix for RadColorPicker:

    CSS
    .RadScheduler .rsAdvancedEdit .RadColorPicker label
{
	text-align: left;
	display: block;
	padding: 0;
}

  11. Run and test the application. If you experience problem, please refer to the sample in the Modified_AddColorPicker folder.

With Q3 2008 we provide both C# and VB.NET versions of the user controls. Note that the user controls are created for a web site. If you need to integrate them in a web application,select the user controls, right-click on them and choose "Convert to Web Application":

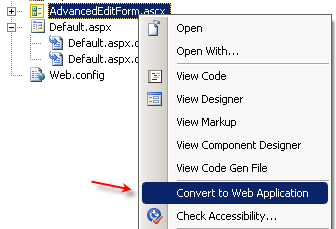

conver controls to web application

In addition you can find a full sample project for "Default Advanced Form Template" by adding aScenario Template. Follow these steps to add the scenario:

  1. Right-click on the Web site name in Solution Explorer window. Select "RadControls for ASP.NET AJAX". From the submenu choose "Add RadScheduler Scenario".

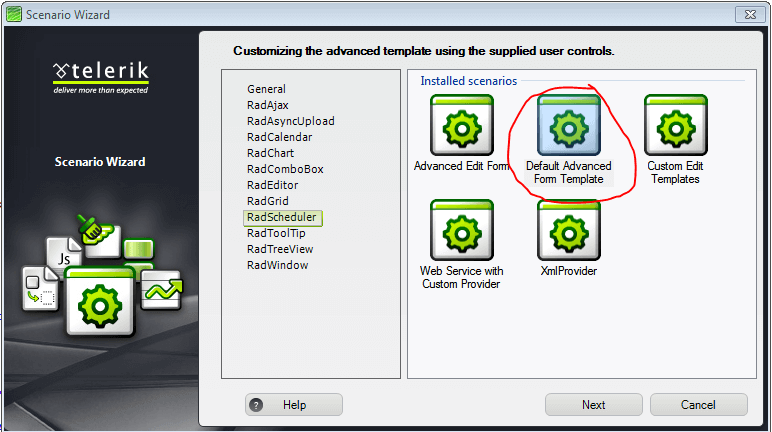

  2. Scenario Wizard appears with different scenarios. Choose "Default Advanced Form Template": RadScheduler Scenario Wizard

  3. Follow the wizard by pressing**"Next"** button and finally press "Finish". A new .aspx page will be added to your project, depending on your choice in the Scenario Wizard. All necessary references will be added toyour project.

  4. Press Ctrl+F5 and run the application.
