Animations

The RadLightBox control provides options for using advanced animations, which are transitions between the images.You can apply animation effects when you show an image, navigate to the next or previous images and when you hide the image.The four different properties that control the animation effects are ShowAnimation, NextAnimation,PrevAnimation and HideAnimation. Each property provides a list with a different animation types.

You can additionally modify the animation effects by using the Easing and Speed properties.Those properties are applicable for ShowAnimationSettings, NextAnimationSettings,PrevAnimationSettings and HideAnimationSettings sub properties of the AnimationSettings property.

Example 1 gives you a better look how to use these properties and Figure 1 shows the output.

ASPNET

<AnimationSettings NextAnimation="Blocks" HideAnimation="Blocks" PrevAnimation="Blocks" ShowAnimation="Blocks">
	<HideAnimationSettings Easing="EaseInOutSine" Speed="1000" />
	<NextAnimationSettings Easing="EaseInOutSine" Speed="1000" />
	<PrevAnimationSettings Easing="EaseInOutSine" Speed="1000" />
	<ShowAnimationSettings Easing="EaseInOutSine" Speed="1000" />
</AnimationSettings

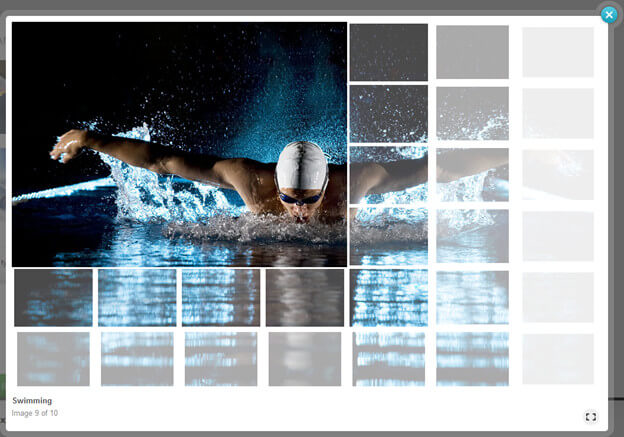

Figure 1: Blocks animation in action.

Animation Types

The ShowAnimation, NextAnimation, PrevAnimation and HideAnimation properties allow you to choose an animation effect. RadLightBox offers 14 different animation effects, which will apply a different effect between the image transitions. You can check out the different animation effects in the live example and Table 1 shows the different animations.

Table 1: All available animation effects.

Fade	Resize	Blocks	BigBlocks
SmallBlocks	HorizontalResize	VerticalResize	DiagonalResize
HorizontalSlide	VerticalSlide	HorizontalStripes	VerticalStripes
CollapsingHorizontalStripes	CollapsingVerticalStripes

Easing

Easing functions makes animation look more realistic by controlling the rate of the transition between the images.The simplest easing function, the line, is linear interpolation at constant rate.More advanced easing functions can have accelerating or decelerating at the beginning, the end or both.You could read the following MSDN Easing Function help article, which provides detailed information about the different easing functions. Table 2 shows the different easing functions.

Table 2: All available easing functions.

Linear	EaseInSine	EaseOutSine	EaseInOutSine
EaseInQuad	EaseOutQuad	EaseInOutQuad	EaseInCubic
EaseOutCubic	EaseInOutCubic	EaseInQuart	EaseOutQuart
EaseInOutQuart	EaseInQuint	EaseOutQuint	EaseInOutQuint
EaseInExpo	EaseOutExpo	EaseInOutExpo	EaseInCirc
EaseOutCirc	EaseInOutCirc	EaseInBack	EaseOutBack
EaseInOutBack	EaseInElastic	EaseOutElastic	EaseInOutElastic
EaseInBounce	EaseOutBounce	EaseInOutBounce

Speed

The Speed property determines the duration of the animation, measured in milliseconds.
