Templates
This article explains the ItemTemplate
and DescriptionTemplate
features of RadLightBox. It contains the following sections:
Templates overview
Templates are fully supported by RadLightBox control. RadLightBox supports two base template types - ItemTemplate and DescriptionTemplate. The first one is instantiated at the top part of the control, where the main content is placed. The latter resides on the bottom, where the Title and Description are normally displayed.
Using these templates, you can display different type of content, for example:
- HTML markup
- iframes
- server controls
Lifecycle and Loading Content
The templates in RadLightBox are optimized for minimal footprint on the page. This means that you need to keep the following in mind:
-
There is only one templated item rendered on the page at any given time. Navigating to another templated item requires a postback. This is not the case when non-templated items are used, they change their content in the browser and only request the new image, even when used together with templated items.
-
The template is removed from the DOM when the lightbox is closed or when it is navigated to another item.
-
Opening a lightbox that was closed results in a postback that will fetch the last item that was displayed in it. This will fire the
OnCommand
event. -
You can avoid the template disposal and subsequent postback by setting the
PreserveCurrentItemTemplates
property totrue
. It defaults tofalse
.- This also applies to navigating to another non-templated item and then back to the templated item.
-
-
The built-in loading panel will not work when templates are used. Nevertheless if you have AJAX-enabled the lightbox by using a RadAjaxManager or RadAjaxPanel, and you have applied a RadLoadingPanel, the loading sign will appear when navigating between the templates.
Example

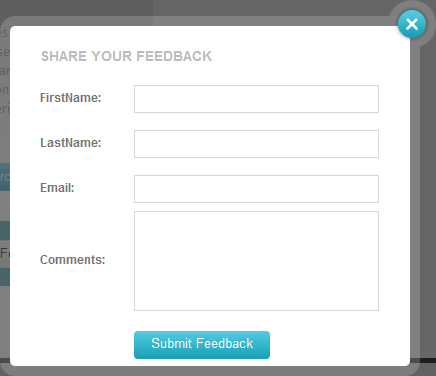

The example below shows how to use templates to create the following RadLightBox:
An <ItemTemplate>
section is added to the RadLightBoxItems
declaration. The controls needed for the form are placed accordingly into the item template.
<telerik:RadLightBox ID="FeedbackLightBox" runat="server" Width="400px" Height="350px"
CssClass="lb_feedback" Modal="true">
<ClientSettings>
<AnimationSettings HideAnimation="Resize" NextAnimation="Fade" PrevAnimation="Fade" ShowAnimation="Resize" />
</ClientSettings>
<Items>
<telerik:RadLightBoxItem>
<ItemTemplate>
<asp:Label ID="FormTitle" runat="server" Text="SHARE YOUR FEEDBACK" CssClass="feedback_header"></asp:Label>
<br />
<asp:Label Text="FirstName:" ID="FirstNameLabel" runat="server" CssClass="feedback_label" />
<telerik:RadTextBox RenderMode="Lightweight" runat="server" ID="FirstNameTextBox" Width="245px" />
<br />
<asp:Label Text="LastName:" ID="LastNameLabel" runat="server" CssClass="feedback_label" />
<telerik:RadTextBox RenderMode="Lightweight" runat="server" ID="LastNameTextBox" Width="245px" />
<br />
<asp:Label Text="Email:" ID="EmailLabel" runat="server" CssClass="feedback_label" />
<telerik:RadTextBox RenderMode="Lightweight" runat="server" ID="EmailTextBox" Width="245px" />
<br />
<asp:Label Text="Comments:" ID="CommentsLabel" runat="server" CssClass="feedback_label" />
<telerik:RadTextBox RenderMode="Lightweight" runat="server" Resize="None" TextMode="MultiLine" Width="245px" Height="100px"></telerik:RadTextBox>
<br />
<telerik:RadButton RenderMode="Lightweight" ID="RadButton1" Text="Submit Feedback" runat="server" Skin="Silk" CssClass="submit_feedback_btn rbPrimaryButton"></telerik:RadButton>
</ItemTemplate>
</telerik:RadLightBoxItem>
</Items>
</telerik:RadLightBox>
