Bullet Chart

The Bullet chart, as part of the ASP.NET AJAX Chart, is a variation of the Bar Chart, usually used as a replacement for dashboard gauges and meters. This help article describes how to set some properties in a Bullet chart and Example 1 (near the end of this article) shows the code used to create Figure 1.

The bullet graph compares a given quantitative measure (such as temperature) against qualitative ranges (e.g. warm, hot, mild, cool, chilly, cold, freezing, icy, frosty) and a symbol marker that encodes the comparative measure (for example the max temperature a year ago).

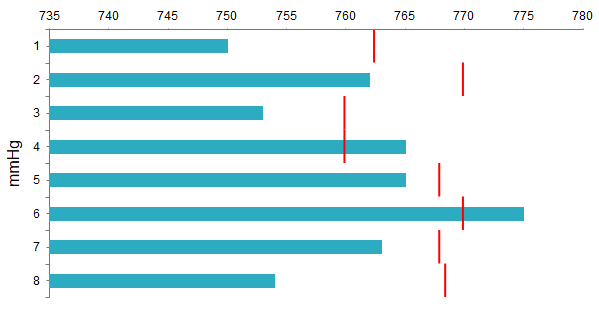

Figure 1: A basic Bullet showing a comparison between the target and actual pressure levels.

htmlchart-bulletchart-simple-example

You can customize the Bullet chart in several ways:

  • The color of each series is controlled via the BackgroundColor property of the BulletSeries > Appearance > FillStyle inner tag.

  • You can get horizontal bars by using a BulletSeries or vertical columns by using a VerticalBulletSeries series types.

  • The target and the actual levels of each Bullet series item can be controlled from the <item>.Target and <item>.Current properties.

  • The name that is shown in the legend is set via the Name property of the series. You can hide the series from the legend either by omitting it, or by setting the VisibleInLegend property to false.

  • Each item can have a tooltip which follows the common pattern defined in the DataFormatString property of the TooltipsAppearance section of the series. The format string uses the Current and the Target of the item. You can also load custom text from data source fields in labels and tooltips by using the composite ClientTemplate property.

  • The Target inner tag of the series allows you to control the target line shown on the series item.

  • The axes are also fully customizable — they automatically adjust their scale to accommodate the data that comes in and for finer tuning, there are numerous properties that can change each aspect:

    • Directly in the axis tag you can use its properties to control color, major and minor tick types and sizes, minimal and maximal values for the y-axis (plus a step size), whereas the x-axis requires a set of items to match the number of SeriesItems the series have. This is also the place where the crossing value with the other axis can be set (the index of an item for an item axis) and whether the axis will be reversed.

    • The inner tags of the axis tag can control the major and minor grid lines in terms of color and size and the labels can have a DataFormatString, position and visibility set through each inner tag's properties.

  • The title, background colors and legend are controlled via the inner properties of the RadHtmlChart control and are common for all charts. You can find more information in the Server-side Programming Basic Configuration and in the Element structure articles.

Example 1 shows how to set properties and generate Figure 1.

Not all properties are necessary. The RadHtmlChart will match the axes to the values if you do not declare explicit values, steps and tick properties (although the Items for axes that need them are necessary).

Example 1: Configuring a basic Bullet chart (the one shown in Figure 1).

ASP.NET
<telerik:RadHtmlChart runat="server" ID="BulletChart1" Width="600" Height="300" Transitions="true" Skin="Silk">
    <PlotArea>
        <Series>
            <telerik:BulletSeries>
                <SeriesItems>
                    <telerik:BulletSeriesItem Current="750" Target="762.5" />
                    <telerik:BulletSeriesItem Current="762" Target="770" />
                    <telerik:BulletSeriesItem Current="753" Target="760" />
                    <telerik:BulletSeriesItem Current="765" Target="760" />
                    <telerik:BulletSeriesItem Current="765" Target="768" />
                    <telerik:BulletSeriesItem Current="775" Target="770" />
                    <telerik:BulletSeriesItem Current="763" Target="768" />
                    <telerik:BulletSeriesItem Current="754" Target="768.5" />
                </SeriesItems>
            </telerik:BulletSeries>
        </Series>
        <XAxis AxisCrossingValue="0" MajorTickType="Outside" MinorTickType="Outside"
            Reversed="false">
            <Items>
                <telerik:AxisItem LabelText="1"></telerik:AxisItem>
                <telerik:AxisItem LabelText="2"></telerik:AxisItem>
                <telerik:AxisItem LabelText="3"></telerik:AxisItem>
                <telerik:AxisItem LabelText="4"></telerik:AxisItem>
                <telerik:AxisItem LabelText="5"></telerik:AxisItem>
                <telerik:AxisItem LabelText="6"></telerik:AxisItem>
                <telerik:AxisItem LabelText="7"></telerik:AxisItem>
                <telerik:AxisItem LabelText="8"></telerik:AxisItem>
            </Items>
            <TitleAppearance Position="Center" RotationAngle="0" Text="mmHg"></TitleAppearance>
            <MajorGridLines Visible="false" />
            <MinorGridLines Visible="false" />
        </XAxis>
        <YAxis AxisCrossingValue="0" MajorTickSize="1" MajorTickType="Outside"
            MinorTickType="None" Reversed="false">
            <MajorGridLines Visible="false" />
            <MinorGridLines Visible="false" />
        </YAxis>
    </PlotArea>
</telerik:RadHtmlChart>
