Order Series via ZIndex Property

As of Q1 2015 the ASP.NET AJAX Chart series items expose the ZIndex property with which you can define a specific ordering defined by the numeric value assigned.

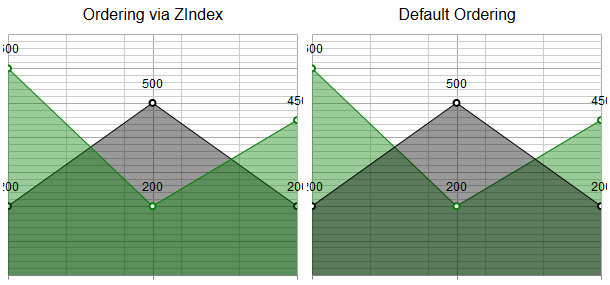

Figure 1: Examines the difference between the default and the predefined (via ZIndex) ordering.

htmlchart-ordering-via-zindex

Defining the Series’ Ordering

Using the ZIndex property of a Series item can change the default ordering of the series in the chart,i.e., one that is shown below, to be instructed to overlay the other series. The logic behind is based on simple numeric value rules. Which means that the series with the greatest ZIndex value will be shown above all.

You can see in Example 1 the markup that generates the charts in Figure 1. As shown in the first chart (Ordering via ZIndex), GreenSeries is rendered above BlackSeries. This is because the ZIndex property of the GreenSeries is set to 2, whereas the one of the BlackSeries to 1. As for the second chart, you can see that the BlackSeries is displayed on top, because as per to default rendering, the first series added to the Series collection is the one to show on top.

ASP.NET
<telerik:RadHtmlChart runat="server" ID="AreaChart1" Width="300" Height="300">
	<ChartTitle Text="Ordering via ZIndex">
	</ChartTitle>
	<PlotArea>
		<Series>
			<telerik:AreaSeries Name="BlackSeries" ZIndex="1">
				<Appearance>
					<FillStyle BackgroundColor="Black" />
				</Appearance>
				<SeriesItems>
					<telerik:CategorySeriesItem Y="200" />
					<telerik:CategorySeriesItem Y="500" />
					<telerik:CategorySeriesItem Y="200" />
				</SeriesItems>
			</telerik:AreaSeries>
			<telerik:AreaSeries Name="GreenSeries" ZIndex="2">
				<Appearance>
					<FillStyle BackgroundColor="Green" />
				</Appearance>
				<SeriesItems>
					<telerik:CategorySeriesItem Y="600" />
					<telerik:CategorySeriesItem Y="200" />
					<telerik:CategorySeriesItem Y="450" />
				</SeriesItems>
			</telerik:AreaSeries>
		</Series>
		<YAxis Visible="false">
		</YAxis>
	</PlotArea>
	<Legend>
		<Appearance Visible="false"></Appearance>
	</Legend>
</telerik:RadHtmlChart>

<telerik:RadHtmlChart runat="server" ID="AreaChart2" Width="300" Height="300">
	<ChartTitle Text="Default Ordering">
	</ChartTitle>
	<PlotArea>
		<Series>
			<telerik:AreaSeries Name="BlackSeries">
				<Appearance>
					<FillStyle BackgroundColor="Black"/>
				</Appearance>
				<SeriesItems>
					<telerik:CategorySeriesItem Y="200" />
					<telerik:CategorySeriesItem Y="500" />
					<telerik:CategorySeriesItem Y="200" />
				</SeriesItems>
			</telerik:AreaSeries>
			<telerik:AreaSeries Name="GreenSeries" >
				<Appearance>
					<FillStyle BackgroundColor="Green"/>
				</Appearance>
				<SeriesItems>
					<telerik:CategorySeriesItem Y="600" />
					<telerik:CategorySeriesItem Y="200" />
					<telerik:CategorySeriesItem Y="450" />
				</SeriesItems>
			</telerik:AreaSeries>
		</Series>
		<YAxis Visible="false">
		</YAxis>
	</PlotArea>
	<Legend>
		<Appearance Visible="false"></Appearance>
	</Legend>
</telerik:RadHtmlChart>
