Arc

The Telerik RadArcGauge is a Control representing a value on a circular arc. It offers a customizable scale and appearance.

The ArcGauge UI Control for ASP.NET AJAX is available as of R2 2023. The RadArcGauge a server-side WebForms wrapper over the Kendo UI ArcGauge for jQuery widget.

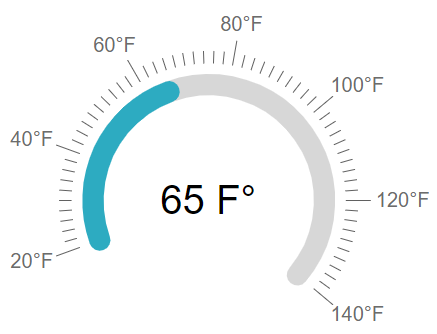

gauge-arc-gauge-thermometer-example

To get an idea which element corresponds to which tag check the RadGauge Structure article. The above gauge was created with the following markup:

ASP.NET

<telerik:RadArcGauge runat="server" ID="RadArcGauge1" Height="350" Width="350" Font-Size="XX-Large" Skin="Silk" Value="35">
    <CenterTemplate>
        #:value # F&deg;
    </CenterTemplate>
    <Scale Min="20" Max="140" StartAngle="-20" EndAngle="220">
        <Labels Visible="true" Position="Outside" Font="16px Arial,Helvetica,sans-serif" Format="{0}&deg;F" />
        <MajorTicks Visible="true" Size="20" Color="Black" />
        <MinorTicks Visible="true" Color="Black" />
    </Scale>
</telerik:RadArcGauge>

The control offers more customization options than the ones shown above:

Center Template - You can customize the content inside the center of the ArcGauge by using the center template. RadArcGauge uses Kendo UI Templates to provide full control over the rendering of center element. To evaluate the current value of the Gauge in its center element use #:value#.
Basic Scale configuration - the Scale is the main wrapper of the control and details are configurable through inner properties. The main Scale tag, however, offers the basic functionality - the Min and Max values of the gauge, the MajorUnit and MinorUnit properties that control the ticks and label distance,and the Reverse property which shows the higher values first when set to true. The specific properties here are StartAngle and EndAngle which control the angle from which the gauge's dial starts and at which it ends. The difference between them must be less than 360 degrees and they can also take negative values so that the gauge rotates from the default vertical centering.
Labels configuration - you can choose the BackgroundColor, Color and Font to customize their appearance. The Visible property controls if they are shown and the Format takes a format string that will be applied to the text according to the value. The format string uses the {0} placeholder to indicate the value. The Template property is a client template similar to the format - it takes a similar string to show in the labels, but the value placeholder is #=value#. The Position property controls whether the labels are inside or outside of the dial.
Ticks configuration - the MajorTicks and MinorTicks inner tags expose the small lines that protrude from the ranges to show the value. They offer various options for customization - Color, Size or Width (in pixels) and Visible (boolean).
Color Ranges configuration - the ColorsCollection tag can contain multiple ArcGaugeColor tags that represent the areas of the gauge that will show differently than the regular scale. Each color range has the From and To properties that control is positioning on the scale and also the Color property that can be used to specify their fill.
Main gauge configuration - the Appearance tag of the control allows for customizing its entire look. It offers the BackgroundColor property which sets the wrapper's background fill and also Height, Width, and Margin defining the size of the wrapper and the distance between the Gauge itself and the contour of its wrapper.

Try out various of the customization options in our live demo.
