.NET MAUI ProgressBar Styling

The ProgressBar control for .NET MAUI provides styling options for customizing its appearance.

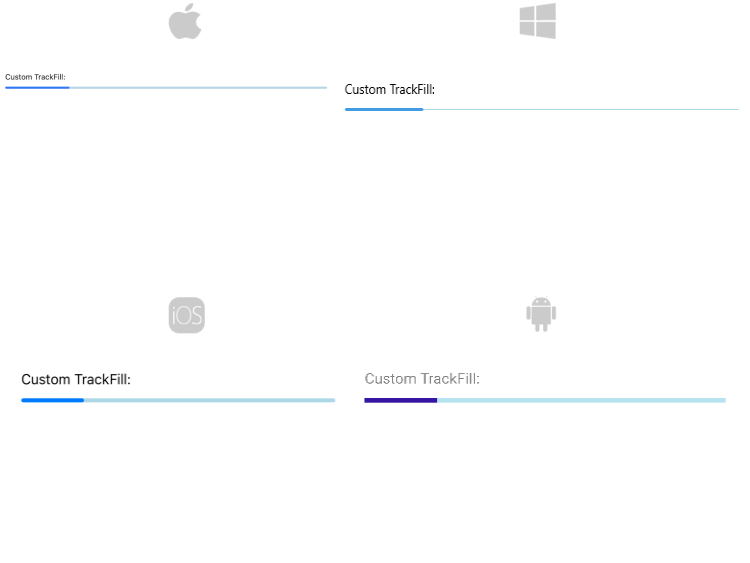

• TrackFill(Brush)—Specifies the color of the background track.
• TrackThickness(double)—Specifies the thickness of the background track.
• Define corners to the background track by setting the TrackCornerRadius(Microsoft.Maui.CornerRadius) property.

xaml

<Label Text="Custom TrackFill:" />
<telerik:RadLinearProgressBar Value="20"
                              TrackFill="LightBlue" />

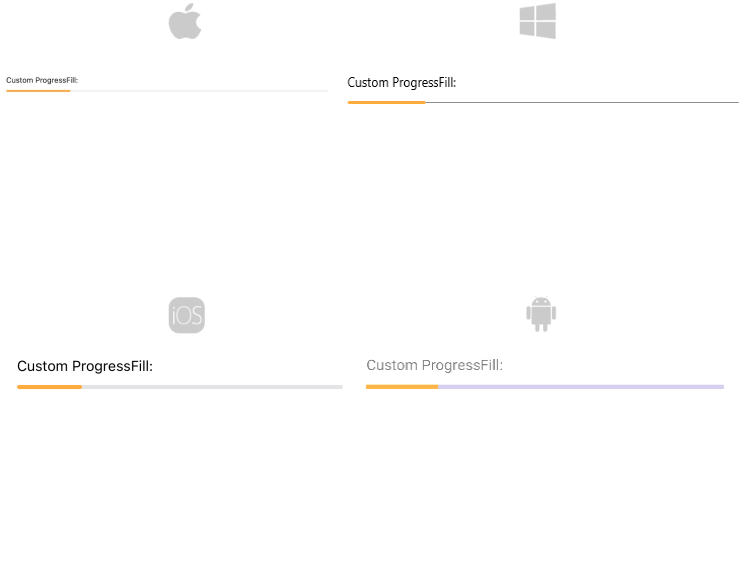

• ProgressFill(Brush)—Specifies the color of the progress indicator.
• Define corners of the progress indicator by setting the ProgressCornerRadius(Microsoft.Maui.CornerRadius) property.

xaml

<Label Text="Custom ProgressFill:" />
<telerik:RadLinearProgressBar Value="20"
                              ProgressFill="#FFAC3E" />

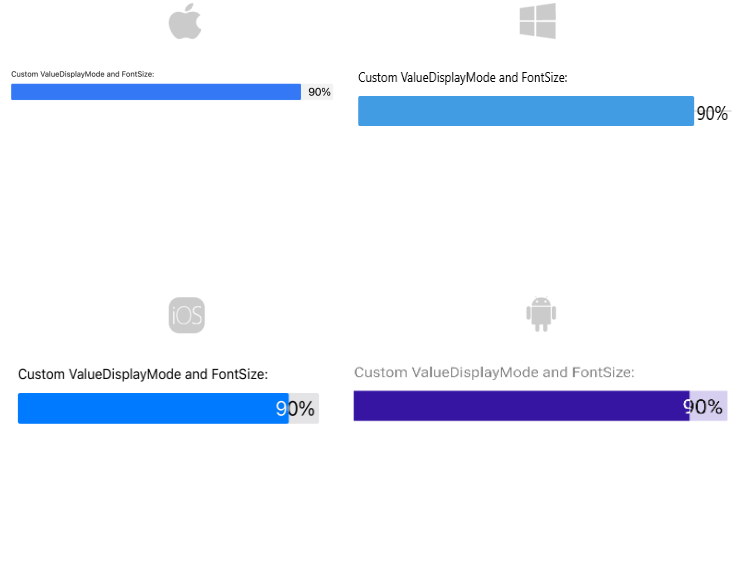

Styling the text

The following properties are related to the text displayed in the ProgressBar:

• TextColor(Color)—Defines the color of the Text which displays the progress value.
• AlternateTextColor(Color)—Defines the text color when the progress indicator overlaps the label which displays the current progress.
• FontSize(double)—Defines the font size of the Text which displays the progress value

xaml

<Label Text="Custom ValueDisplayMode and FontSize:" />
<telerik:RadLinearProgressBar Value="90"
                              ValueDisplayMode="Percent"
                              FontSize="20"
                              HeightRequest="30" />

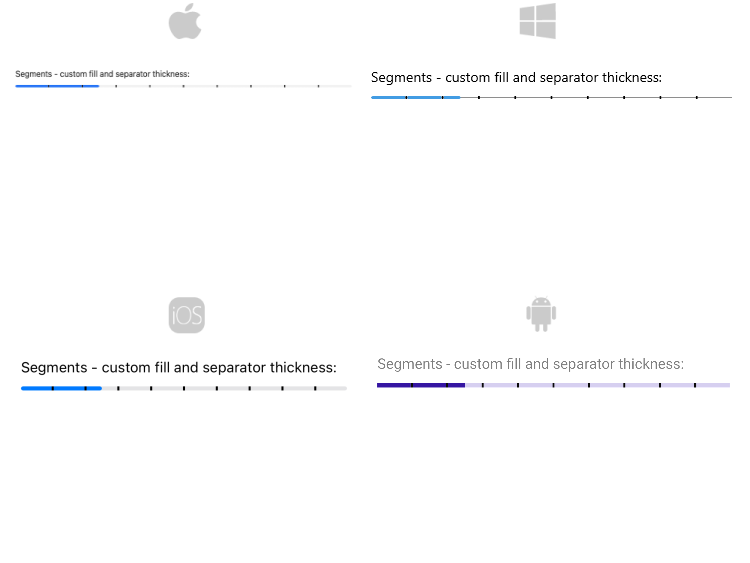

Styling the segments

Style the ProgressBar segments using the following properties:

• SegmentSeparatorFill(Brush)—Specifies the fill of the segments separators.
• SegmentSeparatorThickness(double)—Sets the thickness of the segments separators.

xaml

<Label Text="Segments - custom fill and separator thickness:" />
<telerik:RadLinearProgressBar Value="25"
                              SegmentCount="10"
                              SegmentSeparatorFill="Black"
                              SegmentSeparatorThickness="2" />

Styling the indeterminate mode

For indeterminate mode you can style the ProgressBar using the ProgressFill(Brush) property.

xaml

<Label Text="Indeterminate mode with custom ProgressFill:" />
<telerik:RadLinearProgressBar Value="25"
                              IsIndeterminate="True"
                              ProgressFill="#F85446" />

For the ProgressBar Styling example refer to the SDKBrowser Demo Application.
