.NET MAUI ProgressBar Events

The ProgressBar for .NET MAUI exposes the following events:

• ProgressChanged event is raised when progress is changed. The ProgressChanged event handler receives two parameters:

  • A ProgressChangedEventArgs which has a Progress(double) property. Using this property you can get the current progress of the ProgressBar control.

• ProgressCompleted event is raised when the Value of the ProgressBar reaches the Maximum value.

Example with ProgressChanged and ProgressCompleted events

A simple RadLinearProgressBar definition:

xaml

<VerticalStackLayout Margin="20"
                     HorizontalOptions="FillAndExpand"
                     VerticalOptions="FillAndExpand"
                     Spacing="20">
    <HorizontalStackLayout>
        <Label Text="{Binding Value, Source={x:Reference progressBar}}"
               VerticalTextAlignment="Center" />
        <Stepper Minimum="0"
                 Maximum="180"
                 Increment="20"
                 Value="{Binding Value, Source={x:Reference progressBar}}" />
    </HorizontalStackLayout>
    <HorizontalStackLayout>
        <Label Text="Events: " />
        <Label x:Name="statusLabel" />
    </HorizontalStackLayout>
    <telerik:RadLinearProgressBar x:Name="progressBar"
                                  Minimum="0"
                                  Maximum="180"
                                  Value="20"
                                  ProgressChanged="OnProgressChanged"
                                  ProgressCompleted="OnProgressCompleted" />
</VerticalStackLayout>

Add the following namespace:

XAML

xmlns:telerik="http://schemas.telerik.com/2022/xaml/maui"

ProgressChanged event in code behind. The Label text is updated with the current Progress value:

c#

private void OnProgressChanged(object sender, ProgressChangedEventArgs e)
{
    this.statusLabel.Text = e.Progress.ToString();
}

ProgressCompleted event in code behind. The Label text is updated with Text = "Completed" when the progress reaches the Maximum value:

c#

private void OnProgressCompleted(object sender, EventArgs e)
{
    this.statusLabel.Text = "Completed";
}

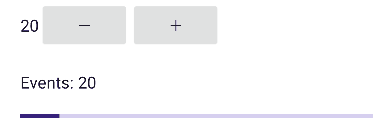

The final result when using the ProgressChanged and ProgressCompleted events on Android:

And on WinUI:

For the ProgressBar Events example refer to the SDKBrowser Demo Application.
