X-axis line appearance

Thread is closed for posting
2 posts, 0 answers
  1. Arima
    Arima avatar
    25 posts
    Member since:
    Mar 2011

    Posted 02 May 2011 Link to this post

    Hi

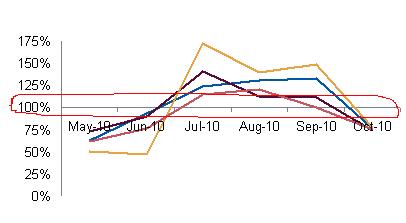

    I have a requirement which i have to show the xaxis horizontal line should appear in the middle of the chart. Y axis values starts from 0 to 200. But i have to display xaixs line in 100 th.  Please see the attached image. I have marked on it.  Is there any property to set? or do we need to do programatically(hiding the gridlines in the chart and then apply marked zones in the yaxis position 100)

    Regards
    Arima
  2.
  3. Evgenia
    Admin
    Evgenia avatar
    1437 posts

    Posted 04 May 2011 Link to this post

    Hello Arima,

    Unfortunately there is no way out-of-the-box to change the position of the XAxis. Positioning MarkedZone at Yvalue = 100 could be helpful but this way you won't be able to show all of the Labels that you have on the picture (the months).
    I would suggest that you leave the Chart with the default position of the XAxis so that you keep the Axis Items labels.

    Regards,
    Evgenia
    the Telerik team
