values of chart overlaping

Thread is closed for posting
2 posts, 0 answers
  1. Zeeshan fawad
    Zeeshan fawad avatar
    10 posts
    Member since:
    Jun 2009

    Posted 06 Oct 2009 Link to this post

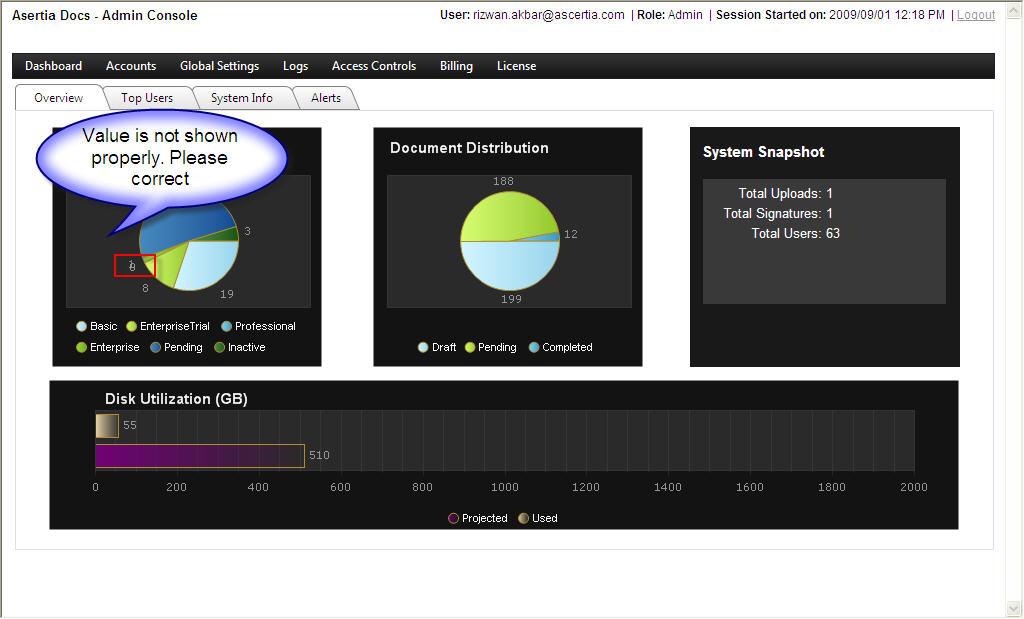

    Hi, attached is the image of some charts, we have some overlaping of values in the first one.
    please tell us some solution for it.
    Regards
    Zeeshan Fawad.
  2. Schlurk
    Schlurk avatar
    812 posts
    Member since:
    May 2009

    Posted 06 Oct 2009 Link to this post

    You could try the IntelligentLabels property:
    <telerik:RadChart ID="RadChart1" runat="server"
                                 Skin="Black" Width="780px" Height="500px"
                                 Legend-Visible="true" IntelligentLabelsEnabled="true"
    The problem could also be that the slivers of the pie are too close to each other, and then the best suggestion i have would be to make the diameter of the pie chart larger and also enable the labels by doing something like this in the code-behind:


    pieSeries.Appearance.DiameterScale = 1;
    pieSeries.Appearance.ShowLabelConnectors = true
    Where pieSeries would be whatever series you are working with. Note: .75 is the default value for DiameterScale.

    Hope this helps.
