[Solved] Unable to create columns in rad grid programatically

[Pinkey]

Hi,
      I am creating dynamic columns in the Radgrid. The first olumn is checkbox box column and the other columns are as per to the user selected criteria. There can be a link column also which will open new page.
I get the datatable according to the user search criteria, hence I am getting different types of columns every time.
Following code shows the aspx page for radgrid display.



<asp:UpdatePanel ID="UpdatePanel2" runat="server" UpdateMode="Conditional">
                                     <ContentTemplate>
                                         <telerik:RadGrid ID="rgResult" runat="server" BorderColor="Black" BorderStyle="Solid"
                                             BorderWidth="1px" AllowPaging="true" AllowSorting="true"  AutoGenerateColumns="false" PageSize="8">
                                             <MasterTableView>
                                                                                             <PagerStyle Mode="NextPrev" Font-Size="11px" Font-Names="Arial" PagerTextFormat="Change page: {4} Item {3} of {5}" />
                                                 <ItemStyle Font-Size="11.5px" HorizontalAlign="Left" />
                                                 <AlternatingItemStyle Font-Size="11.5px" HorizontalAlign="Left" />
                                                 <RowIndicatorColumn>
                                                     <HeaderStyle Width="20px" />
                                                 </RowIndicatorColumn>
                                                 <ExpandCollapseColumn ItemStyle-Wrap="true">
                                                     <HeaderStyle Width="20px" />
                                                 </ExpandCollapseColumn>
                                             </MasterTableView>
                                         </telerik:RadGrid>
                                     </ContentTemplate>
                                 </asp:UpdatePanel>

And the bind function I am calling is given

Public Sub BindNewGrid()
        Try
            Dim attachFlag As Boolean = False
            Dim dt As New DataTable
            Dim dtLoad As New DataTable
            Dim lstHeader As New ListBox
            Dim ShowMe As String = CType(Session("ShowMe"), String)
            Dim chkflag As Boolean = False
            'gets the data from session variable
            dt = CType(Session("dtSearch"), DataTable).Copy

            'checks is Display Columns are selected
            lstHeader = GetDisplayColList()

            rgResult.MasterTableView.DataSource = dt

             For Each item As ListItem In lstHeader.Items
                For i As Integer = 0 To dt.Columns.Count - 1
                    Dim ProID As String = GetDatatableID()
                    If Not chkflag Then
                        If item.Value.ToLower = "keep" Then  'for checkbox column
                            Dim templateColumn As New GridTemplateColumn()
                            templateColumn.ItemTemplate = New GridCheckboxTemplate(ProID)
                            ' templateColumn.HeaderImageUrl = "images/delete.gif"
                            templateColumn.ItemStyle.HorizontalAlign = HorizontalAlign.Center
                            templateColumn.HeaderStyle.HorizontalAlign = HorizontalAlign.Left
                            templateColumn.ItemStyle.VerticalAlign = VerticalAlign.Middle
                            templateColumn.HeaderStyle.Width = Unit.Pixel(23)
                            templateColumn.ItemStyle.Width = Unit.Pixel(35)
                            templateColumn.HeaderText = "Keep"
                            rgResult.MasterTableView.Columns.Add(templateColumn)
                            chkflag = True
                            Exit For
                        End If
                    End If

                    If item.Value.ToLower = dt.Columns(i).ColumnName.ToLower Then
                       If item.Value.ToLower = ProID.ToLower Then  'if ID Field linkbutton
                            Dim Tempcol As New GridTemplateColumn
                            Tempcol.ItemTemplate = New MyTemplate(dt.Columns(i).ColumnName, ProID, False, ShowMe)

                            Tempcol.HeaderText = item.Text  'drow("DisplayName") 'GetDisplayName(dt.Columns(i).ColumnName)
                            rgResult.MasterTableView.Columns.Add(Tempcol)

                        ElseIf item.Value.ToLower = "totalattachments" Then
                            'If CType(Session("Attachment"), Boolean) = True Then
                            Dim Tempcol As New GridTemplateColumn

                            'creates the template column for showing link
                            Tempcol.ItemTemplate = New MyTemplate(dt.Columns(i).ColumnName, ProID, True, ShowMe)

                            Tempcol.HeaderText = "Attachments" 'item.Text  'drow("DisplayName") 'GetDisplayName(dt.Columns(i).ColumnName)
                            rgResult.MasterTableView.Columns.Add(Tempcol)
                            'End If
                        Else
                            'removes all html tags from the data.
                            For Each row As DataRow In dt.Rows
                                row(i) = RemoveHTML(row(i).ToString)
                                If row(i).ToString.Length > MaxLength Then
                                    row(i) = row(i).ToString.Substring(0, MaxLength) & "..."
                                End If
                            Next

                            'creates the column
                            Dim column1 As New GridBoundColumn
                            column1.DataField = dt.Columns(i).ColumnName
                            column1.HeaderText = item.Text
                            rgResult.MasterTableView.Columns.Add(column1)
                        End If


                        End If
                Next
            Next

       Catch ex As Exception

        End Try
    End Sub

The classes used for template column are

Public Class GridCheckboxTemplate
    Implements ITemplate
    Protected boolValue As CheckBox
    Private colname As String
    Private DatacolField As String

    Public Sub New(ByVal cName As String)
        colname = cName
    End Sub
    Public Sub InstantiateIn(ByVal container As System.Web.UI.Control) Implements ITemplate.InstantiateIn
        boolValue = New CheckBox()
        boolValue.ID = "CheckBox1"
        boolValue.Enabled = True
        boolValue.AutoPostBack = True
        AddHandler boolValue.DataBinding, AddressOf boolValue_DataBinding
        AddHandler boolValue.CheckedChanged, AddressOf CheckChanged
        container.Controls.Add(boolValue)
    End Sub
    Sub boolValue_DataBinding(ByVal sender As Object, ByVal e As EventArgs)
        Dim cBox As CheckBox = DirectCast(sender, CheckBox)
        Dim container As GridDataItem = DirectCast(cBox.NamingContainer, GridDataItem)

        cBox.ToolTip = (DirectCast(container.DataItem, DataRowView))(colname).ToString()

    End Sub

    Sub CheckChanged(ByVal sender As Object, ByVal e As System.EventArgs)

   End Class

Public Class MyTemplate
    Inherits SearchResult
    Implements ITemplate
    Shared itemcount As Integer = 0
    Private colname As String
    Private ProjId As String
    Private Trial_ID As String
    Private PID As String = ""
    Private ShowPage As String
    Private ShowAttachment As Boolean
    Protected lnkAttach As LinkButton
    Protected lnkID As LinkButton


        Public Sub New(ByVal cName As String, ByVal IDField As String, ByVal Attachment As Boolean, ByVal Show As String)
        colname = cName
        PID = IDField
        ShowPage = Show
        ShowAttachment = Attachment
    End Sub


       Sub InstantiateIn(ByVal container As Control) Implements ITemplate.InstantiateIn
        'defines the link button

        If ShowAttachment Then
            lnkAttach = New LinkButton
            lnkAttach.ID = "lnkAttach"
            lnkAttach.ForeColor = Drawing.Color.Blue
            AddHandler lnkAttach.DataBinding, AddressOf lnkAttach_DataBinding
            lnkAttach.OnClientClick = "if (this.innerText == 'No Attachments'){return false;}else{ ShowAttachmentDetails(this.title);return false;}" ', " + lnkAttach.CommandName + "
            container.Controls.Add(lnkAttach)
        Else
            lnkID = New LinkButton
            lnkID.ID = "lnkAttach"
            lnkID.ForeColor = Drawing.Color.Blue
            AddHandler lnkID.DataBinding, AddressOf lnkID_DataBinding
                       lnkID.OnClientClick = "Redirectwin(this.innerText, '" & ShowPage.ToLower.Trim & "'); return false;"
                  container.Controls.Add(lnkID)
        End If
    End Sub

    Sub lnkID_DataBinding(ByVal sender As Object, ByVal e As EventArgs)
        Dim link As LinkButton = DirectCast(sender, LinkButton)
        Dim container As GridDataItem = DirectCast(link.NamingContainer, GridDataItem)
        link.Text = (DirectCast(container.DataItem, DataRowView))(colname).ToString()

    End Sub


     Sub lnkAttach_DataBinding(ByVal sender As Object, ByVal e As EventArgs)
        Dim link As LinkButton = DirectCast(sender, LinkButton)
        Dim container As GridDataItem = DirectCast(link.NamingContainer, GridDataItem)
        link.Text = (DirectCast(container.DataItem, DataRowView))(colname).ToString()


        GetDatatableID()

        'checks if attachment is from project or trial
        If Trial_ID = "0" Or Trial_ID Is Nothing Then
            link.ToolTip = (DirectCast(container.DataItem, DataRowView))(ProjId).ToString() & "_" & "00"
        Else
            link.ToolTip = (DirectCast(container.DataItem, DataRowView))(ProjId).ToString() & "_" & (DirectCast(container.DataItem, DataRowView))(Trial_ID).ToString()
        End If

    End Sub


    Private Sub GetDatatableID()
        Try
            Dim dt As New DataTable
              Dim dtColumnList As New DataTable
            Dim xmlDoc As New XmlDocument


            Dim ds As New DataSet
            Dim xmlReader As New XmlTextReader(Server.MapPath("~/XMLFiles_Search/IDFields.xml"))

            ds.ReadXml(xmlReader)
            xmlReader.Close()

            dt = ds.Tables(0).Copy
            For Each row As DataRow In dt.Rows
                If row("Name") = ShowPage.ToLower.Trim Then
                    ProjId = CType(row("ID"), String)
                    Trial_ID = CType(row("TrialID"), String)
                End If
            Next

        Catch ex As Exception

        End Try


    End Sub


End Class

But I am not able to maintain the radgrid structure if the checkbox is checked. As it I use Autopostback true then the grid refreshes and the checkbox column gets disappear.
On a button click I have to remove all the unchecked rows from the grid.

Please can you suggest any way by which I can perform this function.

Thanks and Regards,

Pinkey Yadav






[Pavlina]

Hello Pinkey,

Please checkout the following help articles which elaborate on this subject and let me know if they help to achieve your goal:
http://www.telerik.com/help/aspnet-ajax/grdprogrammaticcreation.html
http://www.telerik.com/help/aspnet-ajax/gridpersistcheckboxstateingridtemplatecolumnonrebind.html

Regards,
Pavlina
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[Pinkey]

Hi Pavlina,

             Thanks for the reply. But my problem is that I am generating the checkbox column as template column at runtime. Hence whenever I check it, due to postback the Rad grid generates the additional column which are blank. It occurs everytime I check the checkbox which compressed the grid.

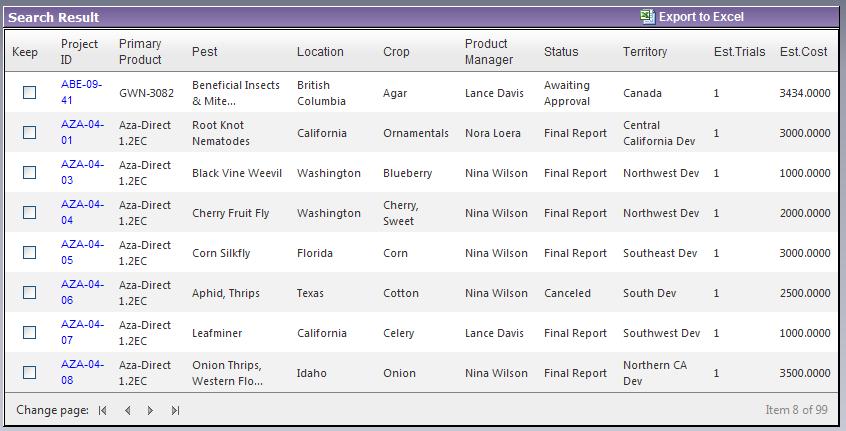

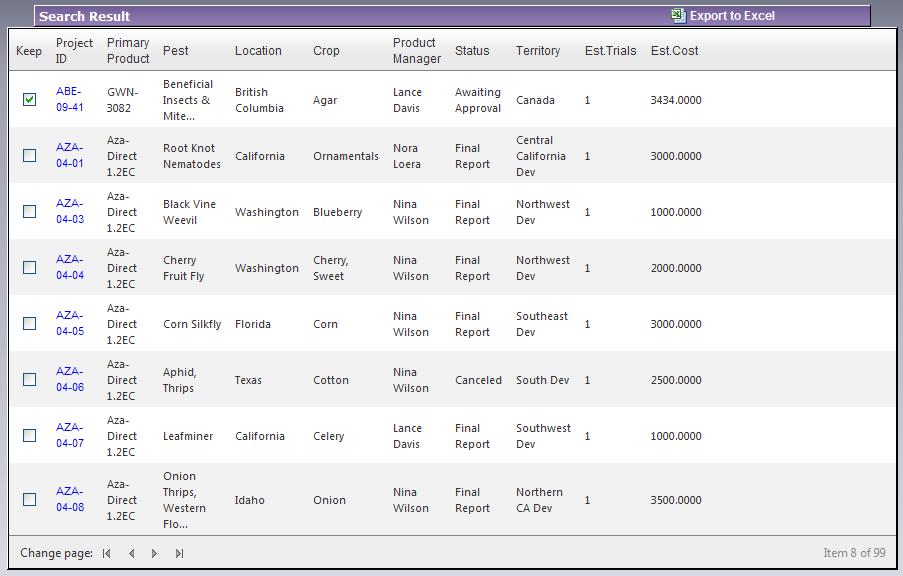

           For reference I have attached the images of the Rad Grid. The second image shows the checked row, which also indicate the columns compressed towards left of the grid.
           This also happens when I sort the column.

Please do suggest me some solution for this. Also is it possible to delete or remove the columns of the RadGrid.

Thanks and Regards,
Pinkey Yadav

[Pavlina]

Hello Pinkey,

I suggest you review the following forum thread which elaborates on similar matter and see if it helps.
http://www.telerik.com/community/forums/aspnet-ajax/grid/empty-gridcolumns-after-postback.aspx

Additionally, if the issue persists it will be best if you open a formal support ticket and send us a simple working project with reproduced this erroneous behavior. Thus we could be able to help you further in resolving it.

Sincerely yours,
Pavlina
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.

[Elango S]

Hi,

I created dynamic controls for the RAD GRID by the following code.

Dim categoryColumn As New Telerik.WinControls.UI.GridViewComboBoxColumn





categoryColumn.UniqueName = "CategoryColumn"







categoryColumn.FieldName = "Type"







categoryColumn.HeaderText = "Type"







categoryColumn.DataSource = temp  // Existing datasource



categoryColumn.ValueMember =

"Type"







categoryColumn.DisplayMember = "Type"





Mygrid.MasterGridViewTemplate.Columns.Add(categoryColumn).

My questions are
1) How can I implement the SelectedIndexChanged event for this dynamic combobox during run time ?
2) In the same grid I also bind a textbox column. How can I implement the TextChanged event for this control ?

Do provide me with sample code ?

Thanks & Regards
Elango.S



[Pavlina]

Hi Elango,

You could handle on ItemCreated event, find the combobox and attach handler for the SelectedIndexChanged event.

For more information about accessing cells and rows, please refer to the following help article:
Accessing cells and rows

Sincerely yours,
Pavlina
the Telerik team

Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the priority of the items.
