TreeView margin.left problem

5 Answers 361 Views
TreeView
This is a migrated thread and some comments may be shown as answers.
wu
Top achievements
Rank 1
Veteran
wu asked on 01 Jun 2020, 08:23 AM

I test the TreeView control,using the style:

.sidebar {
            position: fixed;
            top: 40px;
            left: 0;
            bottom: 0;
            width: 240px;
            overflow-y: auto;
            border-right: 1px solid #e4e6e9;
            background-color:mediumaquamarine;
            padding:0px 0px 0px 0px;
        }

in MainLayout.razor:

<body>
    <div class="header">
        <a href="http://blazor.net">About</a>
    </div>
    <div class="sidebar">
        <NavMenu/>
    </div>
    <div class="content">
        @Body
    </div>
</body>

and in NavMenu.razor:

@inject NavigateTreesService NavigateTrees

<TelerikTreeView Data="@NavigateTrees.TreeData">

      <TreeViewBindings>
          <TreeViewBinding ParentIdField="ParentIdValue" IconField="Icon"
                           UrlField="Page">

          </TreeViewBinding>
      </TreeViewBindings>

</TelerikTreeView>

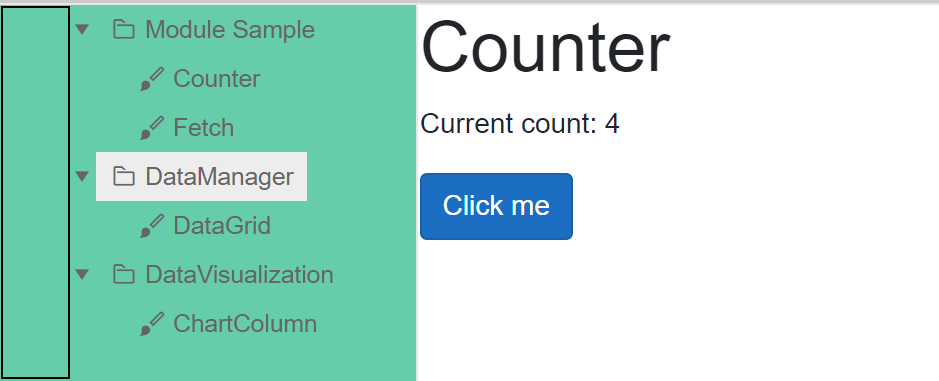

Then run,look this picture attachment,There's always a spare part on the left.
and I found the treeview control's properties is too few,i can't set the sytle.




5 Answers, 1 is accepted

Sort by
0
Svetoslav Dimitrov
Telerik team
answered on 01 Jun 2020, 09:31 AM

Hello Wu,

For sidebar navigation menu you could use the Drawer component (https://docs.telerik.com/blazor-ui/components/drawer/overview) as it is more fit for the purpose. You can explore it live from our demos page here: https://demos.telerik.com/blazor-ui/drawer/overview.

I noticed you would like to create a menu with Hierarchical data, if so, our Hierarchical Drawer demo would be useful: https://demos.telerik.com/blazor-ui/drawer/hierarchical-drawer. It utilizes the Template of the component and you can read more on that in our documentation: https://docs.telerik.com/blazor-ui/components/drawer/templates#template. Also, you can find the Navigation article for the Drawer useful: https://docs.telerik.com/blazor-ui/components/drawer/navigation, where we have explained how to use the Drawer in the MainLayout.

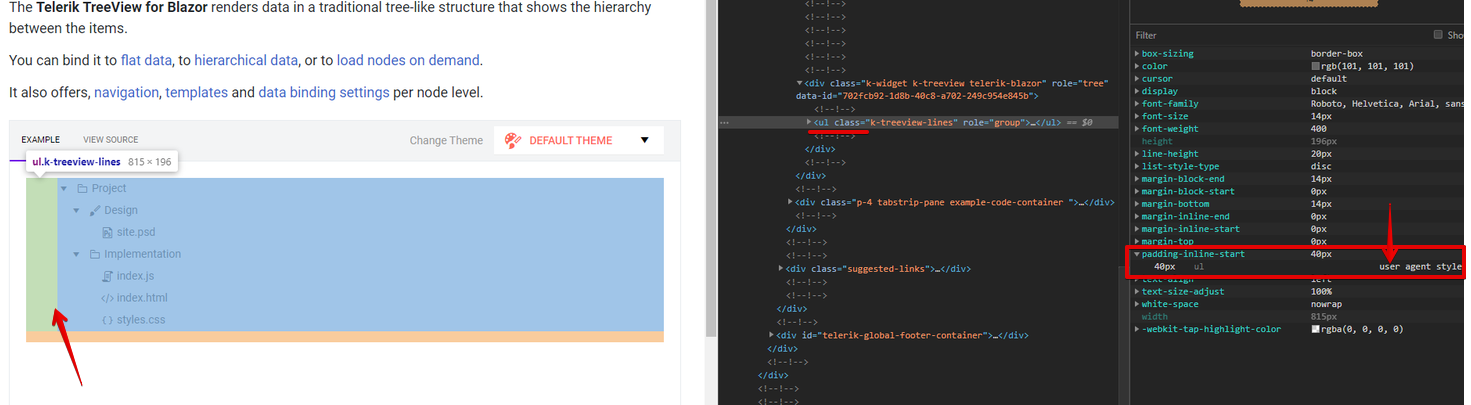

As of the TreeView, you can wrap the component in a div with a class (for example mySidebarNavigation) and target the k-treeview-lines ul and set the padding to 0px - the 40px padding comes from the browser (screenshot attached). Below, you can see a code sample.



<style>
    .mySidebarNavigation .k-treeview-lines {
        padding: 0px;
    }
</style>

<div class="mySidebarNavigation">
    <TelerikTreeView Data="@FlatData">
        <TreeViewBindings>
            <TreeViewBinding ParentIdField="ParentIdValue"></TreeViewBinding>
        </TreeViewBindings>
    </TelerikTreeView>
</div>


@code {
    public class TreeItem
    {
        public int Id { get; set; }
        public string Text { get; set; }
        public int? ParentIdValue { get; set; }
        public bool HasChildren { get; set; }
        public string Icon { get; set; }
        public bool Expanded { get; set; }
    }

    public IEnumerable<TreeItem> FlatData { get; set; }

    protected override void OnInitialized()
    {
        LoadFlatData();
    }

    private void LoadFlatData()
    {
        List<TreeItem> items = new List<TreeItem>();
        items.Add(new TreeItem()
        {
            Id = 1,
            Text = "Project",
            ParentIdValue = null,
            HasChildren = true,
            Icon = "folder",
            Expanded = true
        });
        items.Add(new TreeItem()
        {
            Id = 2,
            Text = "Design",
            ParentIdValue = 1,
            HasChildren = true,
            Icon = "brush",
            Expanded = true
        });
        items.Add(new TreeItem()
        {
            Id = 3,
            Text = "Implementation",
            ParentIdValue = 1,
            HasChildren = true,
            Icon = "folder",
            Expanded = true
        });

        items.Add(new TreeItem()
        {
            Id = 4,
            Text = "site.psd",
            ParentIdValue = 2,
            HasChildren = false,
            Icon = "psd",
            Expanded = true
        });

        items.Add(new TreeItem()
        {
            Id = 5,
            Text = "index.js",
            ParentIdValue = 3,
            HasChildren = false,
            Icon = "js"
        });
        items.Add(new TreeItem()
        {
            Id = 6,
            Text = "index.html",
            ParentIdValue = 3,
            HasChildren = false,
            Icon = "html"
        });

        items.Add(new TreeItem()
        {
            Id = 7,
            Text = "styles.css",
            ParentIdValue = 3,
            HasChildren = false,
            Icon = "css"
        });

        FlatData = items;
    }
}



Regards,
Svetoslav Dimitrov
Progress Telerik

Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
Our thoughts here at Progress are with those affected by the outbreak.
0
wu
Top achievements
Rank 1
Veteran
answered on 01 Jun 2020, 11:02 AM

thank your answer!

I used the above code in the NavMenu.razor,But it didn't work.

I want to realize independent scrolling on the left menu and right content,but your drawer is in a layout,I think the menu and the content area share a scroll bar.





0
wu
Top achievements
Rank 1
Veteran
answered on 01 Jun 2020, 11:27 AM

Ok,It is work.

Can you provide examples of custom styles,for example modify the  alternate line background color for the grid control.

Or provide examples of style modifications in demo in future!





0
wu
Top achievements
Rank 1
Veteran
answered on 01 Jun 2020, 11:41 AM

There's another problem there.

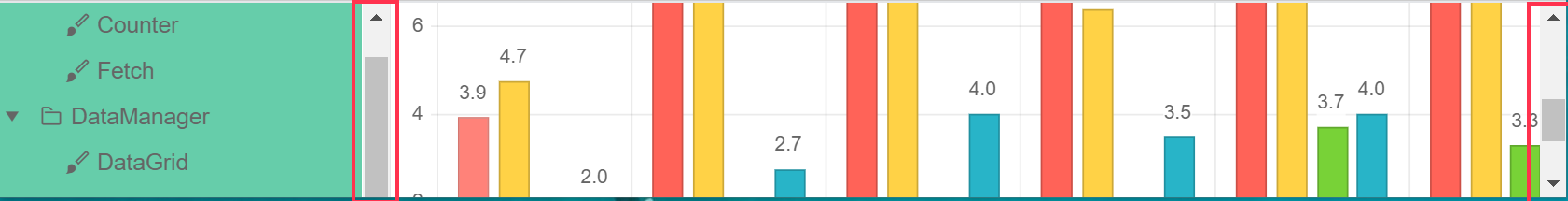

look the attachment,When I adjust the browser window,two scroll bars appear.

But the lower part of the scroll bar on the left is cropped,the right scroll bar is good.









0
Accepted
Marin Bratanov
Telerik team
answered on 02 Jun 2020, 08:13 AM

Hi Wu,

The following KB article shows how you can implement custom and conditional styling on the grid rows: https://docs.telerik.com/blazor-ui/knowledge-base/grid-conditional-cell-background

You may also find this blog post useful on reviewing what is rendered so you can devise your own rules that provide the styling you need: https://www.telerik.com/blogs/improve-your-debugging-skills-with-chrome-devtools. This can also help you investigate the issues with your project layout CSS rules.



Regards,
Marin Bratanov
Progress Telerik

Progress is here for your business, like always. Read more about the measures we are taking to ensure business continuity and help fight the COVID-19 pandemic.
Our thoughts here at Progress are with those affected by the outbreak.
