StackedBar + StackedLine chart to show series progression

Thread is closed for posting
3 posts, 0 answers
  1. Tracy Nagel
    Tracy Nagel avatar
    2 posts
    Member since:
    Nov 2009

    Posted 02 Nov 2009 Link to this post

    Hi,

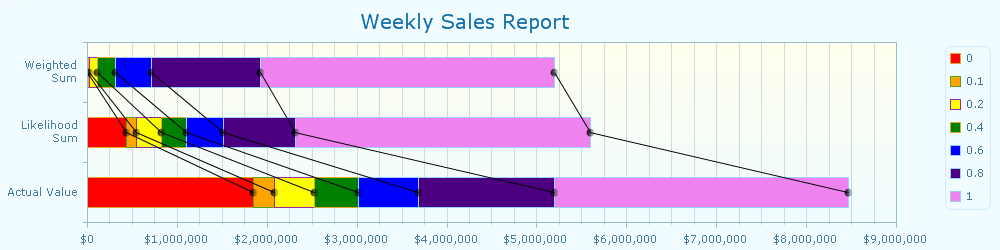

    I have successfully plotted a StackedBar chart and a StackedLine chart in a single chart.  The Y axis has custom values and each value has its own stacked bar and stacked line.

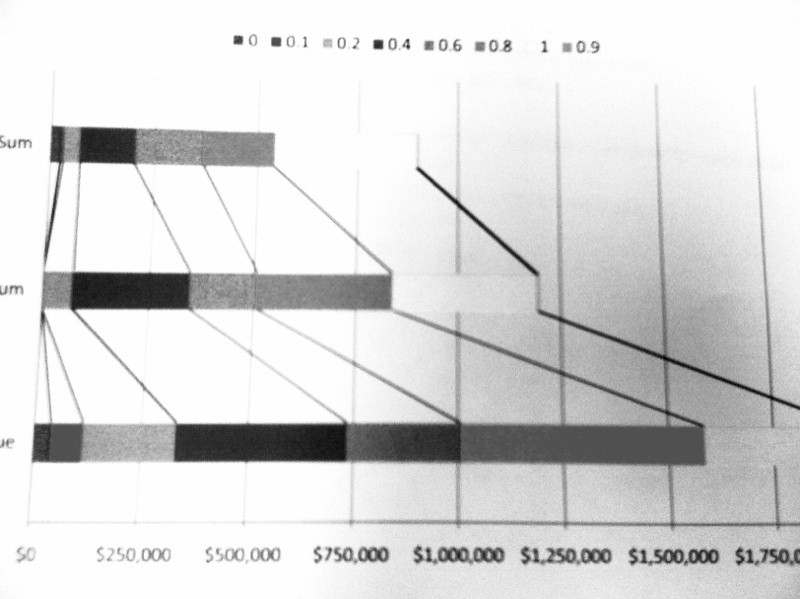

    As the two chart series use the same underlying data points, the StackedLine line endpoints always appear in the middle of the bar (see attached image chartimage.axd.png).   However, my requirement is to have the lines start at the edge of the bars, so it's linking the bars together like in the attached requirement.jpg.

    How can I accomplish this?   I've tried a number of methods

    - Setting PointMark padding / margins
    - Setting Y axis item values to numerical values and trying to plot the StackedLine chart items by using these values
    - Tried to create a step chart by following the steps here

    Any help would be appreciated.


  2. Ves
    Admin
    Ves avatar
    2927 posts

    Posted 05 Nov 2009 Link to this post

    Hello Tracy,

    I am afraid this type of chart is not supported by RadChart. I am sorry our product is not able to fully meet your requirements.

    Best regards,
    Ves
    the Telerik team
