Can you tell me how to force the Grid Layout to allow space for my TelerikAnimationContainer? It gets chopped off when the 3rd row is "short". I don't want the scroll bar to accommodate the height. I want to see the entire filter.

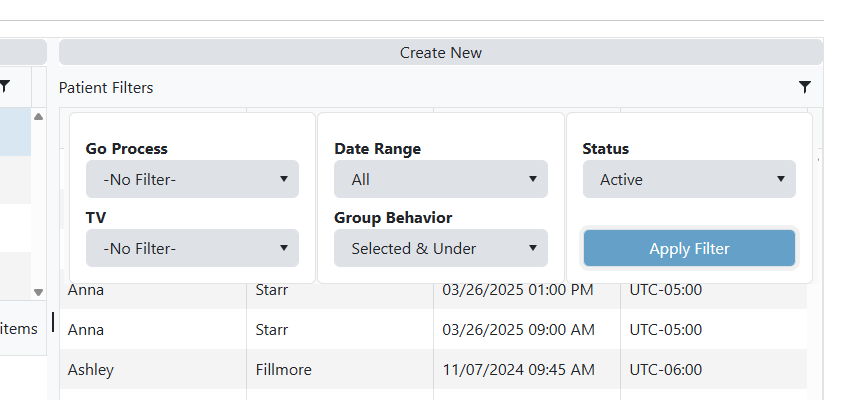

Fully opened (When data extends the Grid):

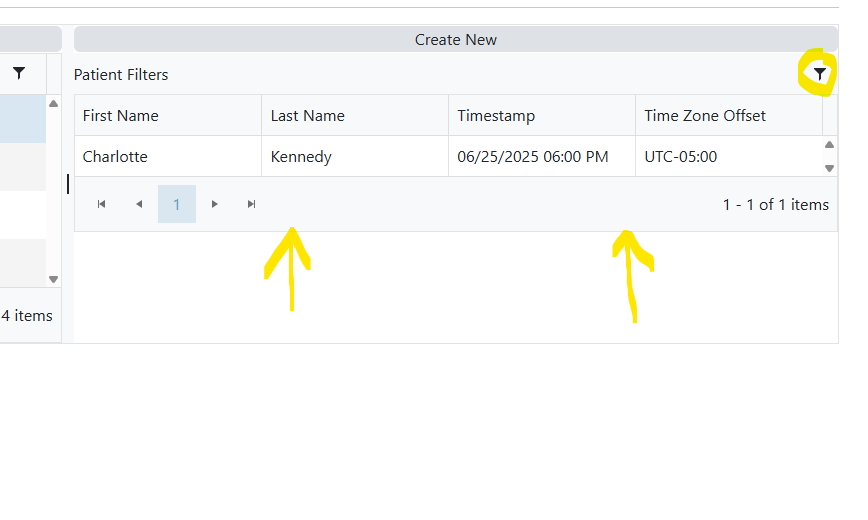

Short Closed:

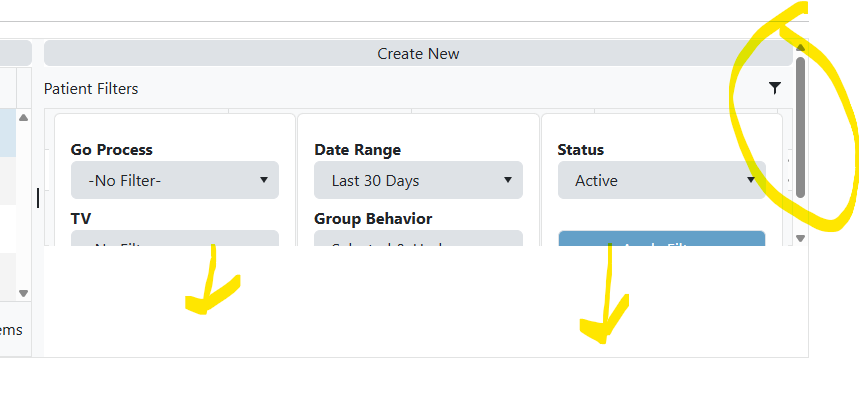

Short Open
<TelerikGridLayout Class="grid-layout">
<GridLayoutRows>
<GridLayoutRow Height="28px" />
<GridLayoutRow />
<GridLayoutRow />
</GridLayoutRows>
<GridLayoutItems>
<GridLayoutItem Row="1">
@if (Groups?.Count > 0)
{
<TelerikButton OnClick="@OnCreate"
Class="gsi-width-100pct gsi-padding-0">
Create New
</TelerikButton>
}
</GridLayoutItem>
<GridLayoutItem Row="2">
<div>
<div class="gsi-background-color-light" style="height: 41px; display:flex;justify-content:space-between;">
<div class="align-self-center gsi-font-kendo gsi-margin-0">
Patient Filters
</div>
<TelerikButton FillMode="Clear"
Class="gsi-border-width-0 gsi-border-color-white gsi-padding-8"
Icon="@(Telerik.SvgIcons.SvgIcon.Filter)"
OnClick="@GridFilterExpandCollapse" />
</div>
<TelerikAnimationContainer @ref="@FilterContainer"
Class="gsi-background-color-light gsi-margin-5 k-rounded-0"
Width="100%"
Height="100vm">
<TelerikStackLayout Spacing="1px" Class="gsi-margin-5">
<TelerikCard Width="33vh">
<CardBody>
@if (SessionOption1Items?.Count > 0)
{
<div class="form-group-short gsi-max-width-250">
<label class="col-form-label">@SessionOption1Template.Name</label><br />
<TelerikDropDownList Data="@SessionOption1Items"
@bind-Value="@SessionOptionIndex1"
TextField="Name" ValueField="Id" />
</div>
@if (SessionOption2Items?.Count > 0)
{
<div class="form-group-short gsi-max-width-250">
<label class="col-form-label">@SessionOption2Template.Name</label><br />
<TelerikDropDownList Data="@SessionOption2Items"
@bind-Value="@SessionOptionIndex2"
TextField="Name" ValueField="Id" />
</div>
}
}
else
{
<small>No Defined Filter</small>
}
</CardBody>
</TelerikCard>
<TelerikCard Width="33vh">
<CardBody>
<div class="form-group-short gsi-max-width-250">
<label class="col-form-label">Date Range</label><br />
<TelerikDropDownList Data="@DateRangeOptions"
@bind-Value="@DateRangeIndex"
TextField="Name" ValueField="Id" />
</div>
<div class="form-group-short gsi-max-width-250">
<label class="col-form-label">Group Behavior</label><br />
<TelerikDropDownList Data="@GroupFilterOptions"
@bind-Value="@GroupFilterIndex"
TextField="Name" ValueField="Id" />
</div>
</CardBody>
</TelerikCard>
<TelerikCard Width="34vh">
<CardBody>
<div class="form-group-short gsi-max-width-250">
<label class="col-form-label">Status</label><br />
<TelerikDropDownList Data="@IsActiveFilterOptions"
@bind-Value="@IsActiveIndex"
TextField="Name" ValueField="Id" />
</div>
<div class="form-group-short align-bottom">
<label class="col-form-label gsi-color-white">Apply Filter</label><br />
<TelerikButton OnClick="OnFilterChanged"
Class="gsi-background-color gsi-color-white gsi-width-100pct">
Apply Filter
</TelerikButton>
</div>
</CardBody>
</TelerikCard>
</TelerikStackLayout>
</TelerikAnimationContainer>
</div>
</GridLayoutItem>
<GridLayoutItem Row="3">
<TelerikGrid Data=@Sessions
...1 Answer, 1 is accepted
Hello Joel,
The AnimationContainer is not designed to be used in such scenarios. It renders in-place, so it will be clipped by scrollable container boundaries.
Use the Telerik Popup component instead. It provides quite a lot of positioning and alignment settings.
Also see Comparison between Telerik popup components
Regards,
Dimo
Progress Telerik
Love the Telerik and Kendo UI products and believe more people should try them? Invite a fellow developer to become a Progress customer and each of you can get a $50 Amazon gift voucher.
Here is the entire UI hierarchy... thought you might need a little more context:
<TelerikSplitter Orientation="SplitterOrientation.Horizontal"> <SplitterPanes> <SplitterPane Size="40%" Min="30%" Max="70%" Collapsible="false" Class="k-scrollable"> <TelerikGridLayout Class="grid-layout"> <GridLayoutRows> <GridLayoutRow Height="28px" /> <GridLayoutRow /> </GridLayoutRows> <GridLayoutItems> @if (Groups?.Count > 0) { <GridLayoutItem Row="1"> <TelerikButton OnClick="@(() => SetTreeListExpandedItems())" Class="gsi-width-100pct gsi-padding-0"> Expand/Collapse Groups </TelerikButton> </GridLayoutItem> } <GridLayoutItem Row="2"> <TelerikTreeList @ref=@TreeListRef Data="@Groups" SelectedItems="@SelectedGroups" IdField="@nameof(Gsi.Customer.Models.Group.Id)" ParentIdField="@nameof(Gsi.Customer.Models.Group.ParentId)" OnStateInit="((TreeListStateEventArgs<Gsi.Customer.Models.Group> args) => OnStateInitHandler(args))" Pageable="true" PageSize="10" Sortable="false" SelectionMode="TreeListSelectionMode.Single" FilterMode="@TreeListFilterMode.FilterMenu" SelectedItemsChanged="@((IEnumerable<Gsi.Customer.Models.Group> m) => OnGroupSelected(m))"> <TreeListColumns> <TreeListColumn Field="Name" Title="Group Filter" Expandable="true"> <Template> @{ var item = context as Gsi.Customer.Models.Group; <img height="32" width="32" src="@item.ImageUrl" /> @item.Name } </Template> </TreeListColumn> </TreeListColumns> </TelerikTreeList> </GridLayoutItem> </GridLayoutItems> </TelerikGridLayout> </SplitterPane> <SplitterPane Collapsible="false" Min="30%" Max="70%" Class="k-scrollable"> <TelerikGridLayout Class="grid-layout"> <GridLayoutRows> <GridLayoutRow Height="28px" /> <GridLayoutRow /> <GridLayoutRow /> </GridLayoutRows> <GridLayoutItems> <GridLayoutItem Row="1"> @if (Groups?.Count > 0) { <TelerikButton OnClick="@OnCreate" Class="gsi-width-100pct gsi-padding-0"> Create New </TelerikButton> } </GridLayoutItem> ...Also, if you can show me how to right-align this control to the right so it stays visually attached to the Filter Icon... that'd be awesome.
