RadMenu Items Shifted

2 posts, 0 answers
  1. Steve
    Steve avatar
    24 posts
    Member since:
    Mar 2010

    Posted 21 Apr 2010 Link to this post

    I am building an ASP.NET website with various Telerik controls using .NET 3.5 and Telerik RadControls_for_ASP.NET_AJAX_2010_1_309_dev.msi.  When I expand the detail records for a row in a RadGrid, I am seeing some odd behavior with the RadMenu...in particular, the menu items shift to the right slightly:

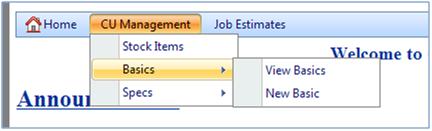

    Menus OK

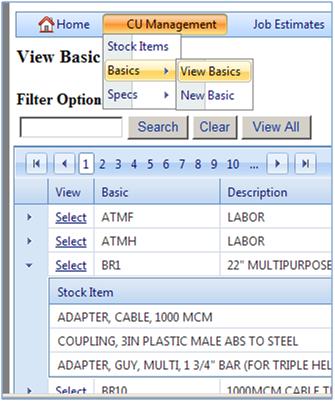

    Menus after viewing details in RadGrid

    In my masterpage I have a RadMenu that is common to all pages:

                            <telerik:RadMenu ID="RadMenu1" runat="server" Skin="Office2007" Width="100%">
                                <Items>
                                    <telerik:RadMenuItem runat="server" NavigateUrl="~/Default.aspx" Text="Home"
                                        ImageUrl="~/images/home.png">
                                    </telerik:RadMenuItem>

                                    <telerik:RadMenuItem runat="server"
                                        Text="CU Management">
                                        <Items>
                                            <telerik:RadMenuItem runat="server" NavigateUrl="~/lstStock.aspx"
                                                Text="Stock Items">
                                            </telerik:RadMenuItem>
                                            <telerik:RadMenuItem runat="server" Text="Basics" NavigateUrl="~/lstBasics.aspx">
                                                <Items>
                                                    <telerik:RadMenuItem runat="server" NavigateUrl="~/lstBasics.aspx"
                                                        Text="View Basics">
                                                    </telerik:RadMenuItem>
                                                    <telerik:RadMenuItem runat="server" NavigateUrl="~/frmBasic.aspx"
                                                        Text="New Basic">
                                                    </telerik:RadMenuItem>
                                                </Items>
                                            </telerik:RadMenuItem>
                                            <telerik:RadMenuItem runat="server" Text="Specs" NavigateUrl="~/lstSpecs.aspx">
                                                <Items>
                                                    <telerik:RadMenuItem runat="server" NavigateUrl="~/lstSpecs.aspx"
                                                        Text="View Specs">
                                                    </telerik:RadMenuItem>
                                                    <telerik:RadMenuItem runat="server" NavigateUrl="~/frmSpec.aspx"
                                                        Text="New Spec">
                                                    </telerik:RadMenuItem>
                                                </Items>
                                            </telerik:RadMenuItem>
                                        </Items>
                                    </telerik:RadMenuItem>
                                    <telerik:RadMenuItem runat="server" Text="Job Estimates" NavigateUrl="~/lstJobs.aspx">
                                        <Items>
                                            <telerik:RadMenuItem runat="server" NavigateUrl="~/lstJobs.aspx" Text="View">
                                            </telerik:RadMenuItem>
                                            <telerik:RadMenuItem runat="server" NavigateUrl="~/frmJob.aspx" Text="New">
                                            </telerik:RadMenuItem>
                                        </Items>
                                    </telerik:RadMenuItem>
                                </Items>
                            </telerik:RadMenu>


    In one of my pages I have a RadGrid that can display a detail grid for any particular row:

        <telerik:RadGrid ID="rgBasics" runat="server" Skin="Office2007"
        onitemcommand="rgBasics_ItemCommand" AutoGenerateColumns="False"
            GridLines="None" ondetailtabledatabind="rgBasics_DetailTableDataBind"
            AllowPaging="true" PageSize="45">
            <PagerStyle Mode="NextPrevAndNumeric" Position="TopAndBottom" />
                    <MasterTableView DataKeyNames="Id" Width="100%">
                    <DetailTables >
                     <telerik:GridTableView runat="server" SkinID="Vista"
        Name="StockItems"
        DataKeyNames="StockNumber"  Width="100%">
            <ParentTableRelation>
                <telerik:GridRelationFields DetailKeyField="BasicId" MasterKeyField="Id" />
            </ParentTableRelation>
            <RowIndicatorColumn >
                <HeaderStyle Width="20px" />
            </RowIndicatorColumn>
            <ExpandCollapseColumn >
                <HeaderStyle Width="20px" />
            </ExpandCollapseColumn>
            <Columns>
                    <telerik:GridTemplateColumn HeaderText="Id" ItemStyle-Width="15%"
                                            Visible="false">
                                            <ItemTemplate>
                                                <asp:Label ID="rglbl_basic_id" runat="server" Text='<%#Eval("basicid") %>'></asp:Label>
                                            </ItemTemplate>
                                            <ItemStyle Width="50%" />
                                        </telerik:GridTemplateColumn>

                                        <telerik:GridTemplateColumn HeaderText="Stock Item">
                                            <ItemTemplate>
                                                <asp:Label ID="rglbl_desc" runat="server" Text='<%#Eval("Description") %>'></asp:Label>
                                            </ItemTemplate>
                                            <ItemStyle Width="50%" />
                                        </telerik:GridTemplateColumn>

                                        <telerik:GridTemplateColumn HeaderText="Quantity" ItemStyle-Width="15%" >
                                            <ItemTemplate>
                                                <asp:Label ID="rglbl_quantity" runat="server" Text='<%#Eval("Quantity") %>'></asp:Label>
                                            </ItemTemplate>
                                            <ItemStyle Width="15%" />
                                        </telerik:GridTemplateColumn>

                                         <telerik:GridTemplateColumn HeaderText="Stock Number" ItemStyle-Width="15%" >
                                            <ItemTemplate>
                                                <asp:Label ID="rglbl_sn" runat="server" Text='<%#Eval("StockNumber") %>'></asp:Label>                     </ItemTemplate>
                                            <ItemStyle Width="15%" />
                                        </telerik:GridTemplateColumn>

                                        <telerik:GridTemplateColumn HeaderText="Cost" ItemStyle-Width="15%" >
                                            <ItemTemplate>
                                                <asp:Label ID="rglbl_cost" runat="server" Text='<%#Eval("SellPrice") %>'></asp:Label>
                                            </ItemTemplate>
                                            <ItemStyle Width="15%" />
                                        </telerik:GridTemplateColumn>
                    </Columns>
            </telerik:GridTableView>
                    </DetailTables>
    <RowIndicatorColumn>
    <HeaderStyle Width="20px"></HeaderStyle>
    </RowIndicatorColumn>
    <ExpandCollapseColumn>
    <HeaderStyle Width="20px"></HeaderStyle>
    </ExpandCollapseColumn>
                    <Columns>
                   <telerik:GridTemplateColumn HeaderText="View" ItemStyle-Width="5%">
    <ItemTemplate>
    <asp:LinkButton ID="lbSelect" runat="server" CommandArgument='<%#Eval("Id") %>'
    CommandName="Select" Text="Select"></asp:LinkButton>
    </ItemTemplate>
        <ItemStyle Width="5%" />
    </telerik:GridTemplateColumn>

                    <telerik:GridTemplateColumn HeaderText="Basic" ItemStyle-Width="15%" Visible="true">
                                            <ItemTemplate>
                                                <asp:Label ID="rglbl_cuname" runat="server" Text='<%#Eval("Name") %>'></asp:Label>
                                            </ItemTemplate>
                                            <ItemStyle Width="15%" />
                                        </telerik:GridTemplateColumn>


                                        <telerik:GridTemplateColumn HeaderText="Description"  >
                                            <ItemTemplate>
                                                <asp:Label ID="rglbl_description" runat="server" Text='<%#Eval("Description") %>'></asp:Label>   </ItemTemplate>
                                        </telerik:GridTemplateColumn>
                    </Columns>
                    </MasterTableView>

    <FilterMenu EnableTheming="True">
    <CollapseAnimation Type="OutQuint" Duration="200"></CollapseAnimation>
    </FilterMenu>
        </telerik:RadGrid>

  2. Steve
    Steve avatar
    24 posts
    Member since:
    Mar 2010

    Posted 21 Apr 2010 Link to this post

    I think I found the problem.  In my master page there are some styling overrides that apply padding.  The padding appears to get applied to my menu items when I display the detailed grid rows:

    .RadMenu .rmLink
    {
        padding: 0 0 0 25px;
        outline: 0;
        float: left;
    }

    and...
    .RadMenu .rmHorizontal .rmText
    {
        padding: 0 12px 1px 0;
    }
