RadGrid Subtotal details table

4 posts, 0 answers
  1. Joseph
    Joseph avatar
    1 posts
    Member since:
    Dec 2013

    Posted 26 Mar 2015 Link to this post

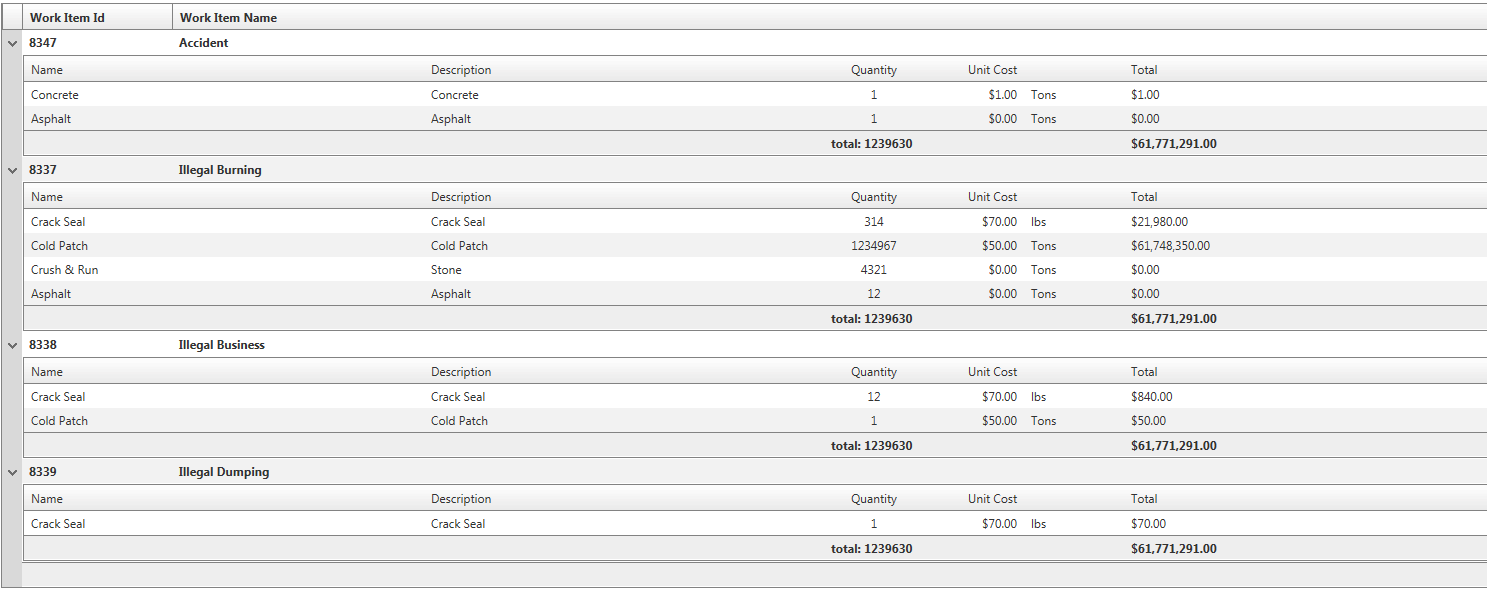

    I am fairly new to telerik control and have an issue with radgrid.  I have a radgrid that has a master and a detail table.  If I try to use the "Aggregate" to sum the columns in the footer it give me the total for the complete data source for the details table.  I would like it to only display the total for the master table item is expanded.  I have attached an image that shows the current behavior.  Any help in getting me moving in the right direction would be great.
  2. Eyup
    Admin
    Eyup avatar
    3756 posts

    Posted 31 Mar 2015 Link to this post

    Hello Joseph,

    By default, the aggregates should summarize only the detail records, exactly how you described. Can you please verify that you are not using DataBind() to bind the grid? Please note that performing complex grid operations such as Inserting, Deleting, Updating, Hierarchy relations, Grouping, Exporting, Paging, Sorting, Filtering, etc. require accommodating appropriate database operations.  Therefore, we suggest you to avoid Simple Databinding and strongly recommend the use of more advanced databinding methods, which automatically handle the aforementioned functions:
    Declarative DataSource
    Advanced Data Binding


    Here is a live demonstration for declarative binding of a hierarchy:
    http://demos.telerik.com/aspnet-ajax/grid/examples/data-editing/insert-update-delete-hierarchy/defaultcs.aspx
    And also programmatic:
    http://demos.telerik.com/aspnet-ajax/grid/examples/data-binding/programmatic-hierarchy/defaultcs.aspx


    Looking forward to your reply.

    Regards,
    Eyup
    Telerik


    See What's Next in App Development. Register for TelerikNEXT.


  3. Joel Kraft
    Joel Kraft avatar
    92 posts
    Member since:
    Jan 2004

    Posted 31 May 2018 in reply to Eyup Link to this post

    Hello,

    I am seeing this issue in R2 2018. I have a RadGrid with a master-detail relationship. The aggregates in the footer of the detail table is definitely including more than that particular instance of the detail.

    This is the basic definition of the grid, with extra columns removed:

    <TELERIK:RadGrid runat="server" ID="grdInvoices" AutoGenerateColumns="false" ShowFooter="true"
        OnNeedDataSource="grdInvoices_NeedDataSource" OnItemDataBound="grdInvoices_ItemDataBound" OnItemCommand="grdInvoices_ItemCommand">
        <MasterTableView CommandItemDisplay="Top" Name="Invoices" HierarchyLoadMode="Client" DataMember="Invoices" DataKeyNames="invoiceid" EditMode="EditForms">
            <Columns>
                <TELERIK:GridHyperLinkColumn DataNavigateUrlFields="invoiceid" DataNavigateUrlFormatString="InvoiceDisplay.aspx?gi={0}" Target="_blank" DataTextField="invoiceid" DataTextFormatString="GI{0}" HeaderText="ID" ItemStyle-HorizontalAlign="Center" HeaderStyle-HorizontalAlign="Center" />
                <TELERIK:GridBoundColumn DataField="totalcharges" DataFormatString="{0:C}" HeaderText="Charges" ItemStyle-HorizontalAlign="Right" HeaderStyle-HorizontalAlign="Right" FooterStyle-HorizontalAlign="Right" Aggregate="Sum" />
            </Columns>
            <DetailTables>
                <TELERIK:GridTableView DataMember="Lines" Caption="Items" NoDetailRecordsText="This invoice has no lines.">
                    <Columns>
                        <TELERIK:GridBoundColumn DataField="linenumber" HeaderText="#" HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center" />
                        <TELERIK:GridBoundColumn DataField="totallineamount" DataFormatString="{0:C}" HeaderText="Total" ItemStyle-HorizontalAlign="Right" HeaderStyle-HorizontalAlign="Right" FooterStyle-HorizontalAlign="Right" Aggregate="Sum" />
                    </Columns>
                    <ParentTableRelation>
                        <TELERIK:GridRelationFields MasterKeyField="invoiceid" DetailKeyField="invoiceid" />
                    </ParentTableRelation>
                </TELERIK:GridTableView>
                <TELERIK:GridTableView DataMember="Payments" Caption="Payments" NoDetailRecordsText="This invoice has no payments posted.">
                    <Columns>
                        <TELERIK:GridBoundColumn DataField="paymentnumber" HeaderText="#" HeaderStyle-HorizontalAlign="Center" ItemStyle-HorizontalAlign="Center" />
                        <TELERIK:GridBoundColumn DataField="paymentamount" DataFormatString="{0:C}" HeaderText="Payment" ItemStyle-HorizontalAlign="Right" HeaderStyle-HorizontalAlign="Right" FooterStyle-HorizontalAlign="Right" Aggregate="Sum" />
                        <TELERIK:GridBoundColumn DataField="feeamount" DataFormatString="{0:C}" HeaderText="Fees" ItemStyle-HorizontalAlign="Right" HeaderStyle-HorizontalAlign="Right" FooterStyle-HorizontalAlign="Right" Aggregate="Sum" />
                    </Columns>
                    <ParentTableRelation>
                        <TELERIK:GridRelationFields MasterKeyField="invoiceid" DetailKeyField="invoiceid" />
                    </ParentTableRelation>
                </TELERIK:GridTableView>
            </DetailTables>
        </MasterTableView>
    </TELERIK:RadGrid>

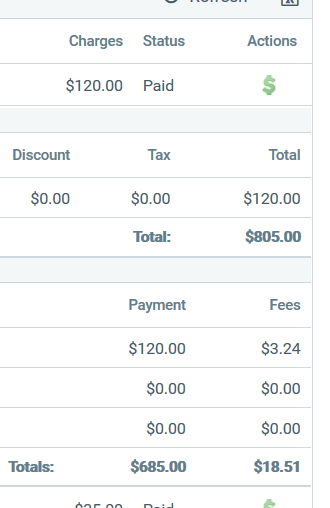

    I'm attaching a partial screenshot of what the aggregates actually look like. The first total is displaying as $805, when there is only one line for $120. The others show too high a value, as well.

  4. Eyup
    Admin
    Eyup avatar
    3756 posts

    Posted 05 Jun 2018 Link to this post

    Hello Joel,

    When using programmatic binding to implement an hierarchical structure, please use DetailTableDataBind event handler to bind the inner tables and remove the ParentTableRelation section:
    https://www.telerik.com/support/kb/aspnet-ajax/grid/details/how-to-bind-radgrid-properly-on-server-side

    I hope this will prove helpful.

    Regards,
    Eyup
