[Solved] RadGrid Not Displaying Border for some cells

3 Answers 419 Views

Grid

This is a migrated thread and some comments may be shown as answers.

Suresh Krishna asked on 29 Jul 2013, 07:36 PM


Hi All,

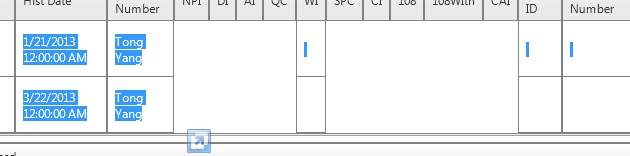

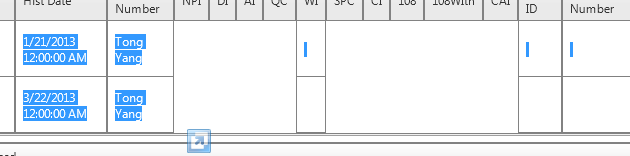

I have an issue here . I have a datatable as datasource for a radgrid. I have faced issue with the border for the radgrid as some cell borders are not displayed. Refer 1.jpg file i have attached

I have changed my SQL query to handle the Null case.

SELECT



.....ISNULL

(KP.dbo.PH.qc,'') as qc,ISNULL(KP.dbo.PH.di,' ') as

di

.....

.....

FROM KP.dbo.PH

But for my surprise when i remove the alias name cell border is coming up. But i need the alias name, since by adding ISNULL check the column header will go blank.

<telerik:RadGrid ID="RadGridInspection" CssClass="RadGridCustomClass" AllowSorting="false" AllowPaging="true" AllowFilteringByColumn="false"

AutoGenerateColumns="false" runat="server" ClientSettings-EnableAlternatingItems="False" AlternatingItemStyle-BorderStyle="Solid" BorderStyle="Solid" EditItemStyle-BorderStyle="Solid" ItemStyle-BorderStyle="Solid">

<MasterTableView AutoGenerateColumns="False" >

<Columns >

<telerik:GridBoundColumn DataField="di" UniqueName ="di" HeaderText="DI" ItemStyle-BorderColor="Gray" ItemStyle-BorderStyle="Solid">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="ai" UniqueName ="ai" HeaderText="AI" ItemStyle-BorderColor="Gray" ItemStyle-BorderStyle="Solid">

</telerik:GridBoundColumn>

<telerik:GridBoundColumn DataField="qc" UniqueName ="qc" HeaderText="QC" ItemStyle-BorderColor="Gray" ItemStyle-BorderStyle="Solid">

</telerik:GridBoundColumn>

</Columns>

</MasterTableView>

</telerik:RadGrid>

EVEN i have used prerender code in codebehind to handle if there is any blank cells.

Protected Sub RadGridInspection_PreRender(sender As Object, e As EventArgs) Handles RadGridInspection.PreRender

For Each dataItem As GridDataItem In RadGridInspection.Items

For Each col As GridColumn In RadGridInspection.Columns

'If dataItem(col.UniqueName).Text = String.Empty Then

If String.IsNullOrEmpty(dataItem(col.UniqueName).Text) Or dataItem(col.UniqueName).Text = " " Then

dataItem(col.UniqueName).Text = " "

End If

Next

End Sub

Kindly let me know how to handle this scenario..

Thanks in advance
