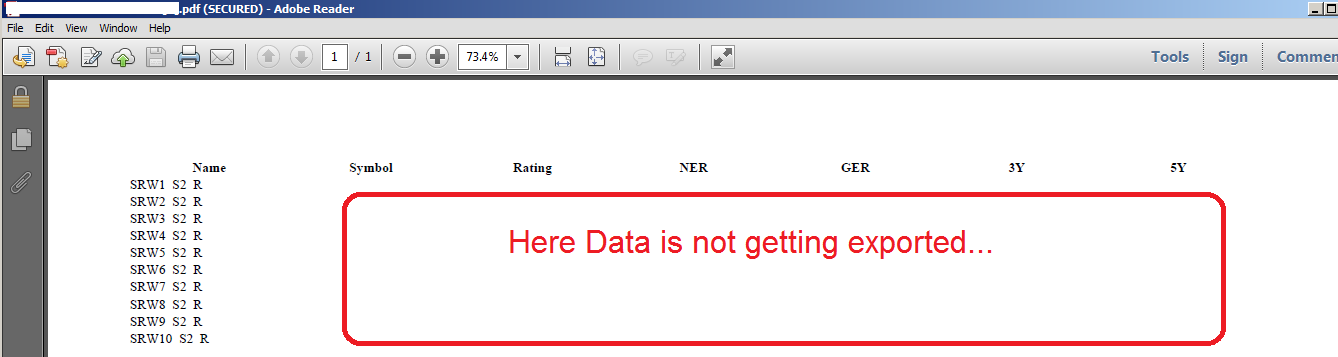

Hi, Presently I'm using the rad grid and facing a problem with PDF download where data is not getting displayed in the downloaded PDF file. I investigated the cause and found that <table> tag is creating the issue. Since I'm using the <table> tag inside the <ItemTemplate> and while downloading data in PDF, data is not getting displayed. Not sure why rad grid is behaving in this way.
I'm attaching the demo code for your look, please go through it and let me know the solution to proceed further.
I'm attaching the demo code for your look, please go through it and let me know the solution to proceed further.
<%@ Page Language="C#" AutoEventWireup="true" CodeBehind="PDFXLDownload.aspx.cs" Inherits="PDFXLDownload.PDFXLDownload" %> <%@ Register Assembly="Telerik.Web.UI" Namespace="Telerik.Web.UI" TagPrefix="telerik" %> <!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd"> <html xmlns="http://www.w3.org/1999/xhtml"> <head runat="server"> <title></title> <link href="Styles/Site.css" rel="stylesheet" type="text/css" /> </head> <body> <form id="form1" runat="server"> <telerik:RadScriptManager ID="RadScriptManager1" runat="server" EnableScriptCombine="false"> </telerik:RadScriptManager> <telerik:RadGrid runat="server" ID="myGrid" EnableEmbeddedSkins="false" GridLines="None" ShowFooter="false" AllowFilteringByColumn="false" AllowSorting="false" ShowGroupPanel="false" AllowPaging="false" PageSize="10"> <mastertableview autogeneratecolumns="False" commanditemdisplay="Bottom"> <Columns> <telerik:GridTemplateColumn> <HeaderTemplate> <asp:Label ID="labelName" runat="server" Text="Name"></asp:Label> </HeaderTemplate> <ItemTemplate> <asp:Label ID="labelName" runat="server" Text='<%# Bind("Name") %>'></asp:Label> <asp:Label ID="labelSName" runat="server" Text='<%# Bind("SName") %>'></asp:Label> <asp:Label ID="labelStatus" runat="server" CssClass="FundStatus" Text='<%# Bind("Status") %>'></asp:Label> </ItemTemplate> </telerik:GridTemplateColumn> <telerik:GridTemplateColumn> <HeaderStyle CssClass="GridHeaderItem" /> <ItemStyle CssClass="GridItem" /> <HeaderTemplate> <asp:Label ID="labelSymbol" runat="server" Text="Symbol"></asp:Label> </HeaderTemplate> <ItemTemplate> <table> <tr> <td> <asp:Label ID="labelSymbol" runat="server" Text='<%# Bind("Symbol") %>'></asp:Label> </td> </tr> </table> </ItemTemplate> </telerik:GridTemplateColumn> <telerik:GridTemplateColumn> <HeaderStyle CssClass="GridHeaderItem" /> <ItemStyle CssClass="GridItem" /> <HeaderTemplate> <asp:Label ID="labelMER" runat="server" Text="Rating"></asp:Label> </HeaderTemplate> <ItemTemplate> <table> <tr> <td> <asp:Label ID="labelMER" runat="server" Text='<%# Bind("MSN") %>'></asp:Label> </td> </tr> </table> </ItemTemplate> </telerik:GridTemplateColumn> <telerik:GridTemplateColumn> <HeaderStyle CssClass="GridHeaderItem" /> <ItemStyle CssClass="GridItem" /> <HeaderTemplate> <asp:Label ID="lblNER" runat="server" Text="NER"></asp:Label> </HeaderTemplate> <ItemTemplate> <table> <tr> <td> <asp:Label ID="lblNER" runat="server" Text='<%# Bind("NER") %>'></asp:Label> </td> </tr> </table> </ItemTemplate> </telerik:GridTemplateColumn> <telerik:GridTemplateColumn> <HeaderStyle CssClass="GridHeaderItem" /> <ItemStyle CssClass="GridItem" /> <HeaderTemplate> <asp:Label ID="lblGER" runat="server" Text="GER"></asp:Label> </HeaderTemplate> <ItemTemplate> <table> <tr> <td> <asp:Label ID="lblGER" runat="server" Text='<%# Bind("GER") %>'></asp:Label> </td> </tr> </table> </ItemTemplate> </telerik:GridTemplateColumn> <telerik:GridTemplateColumn> <HeaderStyle CssClass="GridHeaderItem" /> <ItemStyle CssClass="GridItem" /> <HeaderTemplate> <asp:Label ID="lbl3Y" runat="server" Text="3Y"></asp:Label> </HeaderTemplate> <ItemTemplate> <table> <tr> <td> <asp:Label ID="lbl3Y" runat="server" Text='<%# Bind("ThreeYear") %>'></asp:Label> </td> </tr> </table> </ItemTemplate> </telerik:GridTemplateColumn> <telerik:GridTemplateColumn> <HeaderStyle CssClass="GridHeaderItem" /> <ItemStyle CssClass="GridItem" /> <HeaderTemplate> <asp:Label ID="lbl5Y" runat="server" Text="5Y"></asp:Label> </HeaderTemplate> <ItemTemplate> <table> <tr> <td> <asp:Label ID="lbl5Y" runat="server" Text='<%# Bind("FiveYear") %>'></asp:Label> </td> </tr> </table> </ItemTemplate> </telerik:GridTemplateColumn> </Columns> </mastertableview> </telerik:RadGrid> <asp:Button ID="DownloadPDFButton" runat="server" OnClick="DownloadPDFButton_Click" Text="Download PDF" Width="184px" /> </form> </body> </html> using
System;
using
System.Collections.Generic;
using
System.Web.UI.WebControls;
using
Telerik.Web.UI;
namespace
PDFXLDownload
{
public partial class PDFXLDownload : System.Web.UI.Page
{
#region
Event Handler
protected void Page_Load(object sender, EventArgs e)
{
myGrid.DataSource =
MyTestData.GetMyTestDataData();
myGrid.DataBind();
}
protected void DownloadPDFButton_Click(object sender, EventArgs e)
{
myGrid.ExportSettings.OpenInNewWindow =
true;
myGrid.ExportSettings.FileName =
"PDFExportDemo";
myGrid.ExportSettings.ExportOnlyData =
false;
//Landscape
myGrid.ExportSettings.Pdf.PageHeight =
Unit.Parse("10in");
myGrid.ExportSettings.Pdf.PageWidth =
Unit.Parse("16in");
//// 1/2 inch margins
myGrid.ExportSettings.Pdf.PageLeftMargin =
Unit.Parse("1in");
myGrid.ExportSettings.Pdf.PageRightMargin =
Unit.Parse("1in");
myGrid.ExportSettings.Pdf.PageTopMargin =
Unit.Parse("1in");
myGrid.ExportSettings.Pdf.PageBottomMargin =
Unit.Parse("1in");
myGrid.ExportSettings.FileName =
"IP";
myGrid.MasterTableView.ExportToPdf();
}
#endregion
#region
Test Data
public class MyTestData
{
public string Name { get; set; }
public string SName { get; set; }
public string Status { get; set; }
public string Symbol { get; set; }
public string MSN { get; set; }
public string NER { get; set; }
public string GER { get; set; }
public string OneQ { get; set; }
public string YTD { get; set; }
public string OneYear { get; set; }
public string ThreeYear { get; set; }
public string FiveYear { get; set; }
public string TenYear { get; set; }
public string Risk { get; set; }
public static List<MyTestData> GetMyTestDataData()
{
List<MyTestData> myDummyData = new List<MyTestData>
{
new MyTestData
{
Name =
"SRW1", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW2", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW3", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW4", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW5", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW6", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW7", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW8", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW9", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
new MyTestData
{
Name =
"SRW10", SName="S2", Status="R",
Symbol =
"N/A", MSN="N/A", NER="0.46", GER="0.46",
OneYear=
"00.00%", ThreeYear="00.00%", FiveYear="00.00%"
},
};
return myDummyData;
}
}
#endregion
}
}
4 Answers, 1 is accepted
0
Accepted
Shinu
Top achievements
Rank 2
Rank 2
answered on 21 Mar 2013, 09:14 AM
Hi,
There are a few rules that should be followed when exporting HTML tables to PDF:
-
The table should define <colgroup> and <col> elements
-
The number of col elements should be equal to the number of the columns in the table body
-
Width in pixels (or another absolute units) should be set to the table.
Check the following help documentation for more.
PDF Export
Thanks,
Shinu
0
Vivek
Top achievements
Rank 2
Rank 2
answered on 16 May 2013, 05:21 PM
Hi Shinu,
As you said - "Width in pixels (or another absolute units) should be set to the table."
But In my scenario, I really can not hard code anything style related stuff in the html, everything should come from css classes.
Is there any alternative way to avoid setting width explicitly.
What happens if I set the width on table explicitly, will it change my UI? as actual width is coming from css.
For Example -
Width in css class is : 20%
And if I hardcode width in table as 200px which may not match with width in % then this may affect my UI as well.
Please let me know your thoughts on this.
As you said - "Width in pixels (or another absolute units) should be set to the table."
But In my scenario, I really can not hard code anything style related stuff in the html, everything should come from css classes.
Is there any alternative way to avoid setting width explicitly.
What happens if I set the width on table explicitly, will it change my UI? as actual width is coming from css.
For Example -
Width in css class is : 20%
And if I hardcode width in table as 200px which may not match with width in % then this may affect my UI as well.
Please let me know your thoughts on this.
0
Vivek
Top achievements
Rank 2
Rank 2
answered on 20 May 2013, 06:08 AM
Is there any update on this?
0
Hi Vivek,
I am afraid you have to hardcoded the width of the tables in the templates. There is no workaround for this scenario.
Greetings,
Kostadin
the Telerik team
I am afraid you have to hardcoded the width of the tables in the templates. There is no workaround for this scenario.
Greetings,
Kostadin
the Telerik team
