RadChart multiple-series x-axis labels

2 posts, 0 answers
  1. Mohammad
    Mohammad  avatar
    12 posts
    Member since:
    Dec 2014

    Posted 24 Jul 2017 Link to this post

    I have a requirement to put multiple series into a chart. Each series should have a label & the item in the series should also have a label on the x-axis.
     I cannot find any samples that would help me with this and have been banging my head at it for the day.

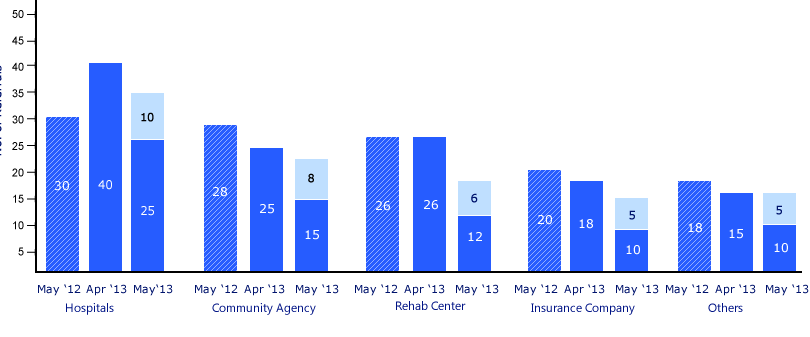

     I've attached a sample of what our graph should look like. Any help on this would be great!


    Thanks
  2. Marin Bratanov
    Admin
    Marin Bratanov avatar
    5359 posts

    Posted 27 Jul 2017 Link to this post

    Hello Mohammad,

    RadHtmlChart provides stacked series and single labels on the x-axis. You can see that in action here: http://demos.telerik.com/aspnet-ajax/htmlchart/examples/functionality/stackedgroups/defaultcs.aspx.

    Perhaps you can get close to the screenshot by:

    Regards,

    Marin Bratanov
    Progress Telerik
