Rad Chart Grouping Problem

[Atul]

i  used rad chart and facing problem in grouping column .

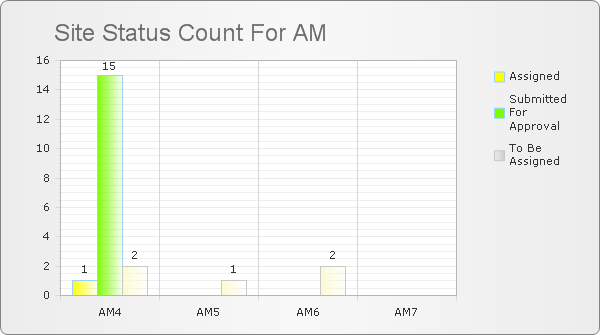

AM4 displaying three bar values  insteadof  two values and  AM5,AM6  is showing incorrect values .

please suggest me solution.

siteStatus                                  UserName

Assigned                                     AM4                    1

Submitted For Approval              AM4                    15

To Be Assigned                           AM5                     2

To Be Assigned                           AM6                     1

To Be Assigned                           AM7                      2

            chartBarRoleWise.DataSource = siteStatus;
            chartBarRoleWise.DataGroupColumn = "SiteStatus";
            chartBarRoleWise.PlotArea.XAxis.DataLabelsColumn = "UserName";
            chartBarRoleWise.Legend.Appearance.GroupNameFormat = "#VALUE";
            chartBarRoleWise.DataBind()
            ;

[Evgenia]

Hi Atul,

By default RadChart places the ChartSeriesItems (in this case -- bars) consecutively. In order to instruct the chart to shift the items to the correct position along the X, you will need another numeric column, which will provide the values for XValue property of the ChartSeriesItems. Here's the code:

DataTable tbl = new DataTable();
    DataColumn col = new DataColumn("Value");
    col.DataType = typeof(int);
    tbl.Columns.Add(col);
    col = new DataColumn("fakeGroupValue");
    col.DataType = typeof(int);
    tbl.Columns.Add(col);
    col = new DataColumn("siteStatus");
    col.DataType = typeof(string);
    tbl.Columns.Add(col);
    col = new DataColumn("userName");
    col.DataType = typeof(string);
    tbl.Columns.Add(col);
    tbl.Rows.Add(new object[] { 1, 1, "Assigned", "AM4"});
    tbl.Rows.Add(new object[] { 15, 1, "Submitted For Approval", "AM4"});
    tbl.Rows.Add(new object[] { 2, 2, "To Be Assigned", "AM5"});
    tbl.Rows.Add(new object[] { 1, 3, "To Be Assigned", "AM6"});
    tbl.Rows.Add(new object[] { 2, 4, "To Be Assigned", "AM7"});
    RadChart1.DataManager.ValuesXColumn = "fakeGroupValue";
    RadChart1.DataGroupColumn = "siteStatus";
    RadChart1.DataManager.ValuesYColumns = new string[] { "Value" };
    RadChart1.PlotArea.XAxis.DataLabelsColumn = "userName";
    RadChart1.Legend.Appearance.GroupNameFormat = "#VALUE";
    RadChart1.DefaultType = Telerik.Charting.ChartSeriesType.Bar;
    RadChart1.DataSource = tbl;
    RadChart1.DataBind();
    RadChart1.AutoLayout = true;

Regards,
Evgenia
the Telerik team
