Problems working with ExpandColumns

[David]

I am attempting to use a hierarchical grid and am having a number of issues with the ExpandColumn.  I want to hid the auto-generated expand column placed in the first column of all levels and add a formatted image for the expand column in the last column.  I have managed the last requirement by placing a GridButtonColumn with a Command handler to expand/collaspe the parent grid item.  This works, sort of.

The bigger problem comes when expanding the second level table.  I used the examples provided for others for hiding the expandcolumn in the first column and that seems to work until I expand the grid.  Then the expandcolumn for the first level is shown - moving the second level over by 250px. (which is the size of the first grids first data column).  I can see that the code to hide the expandcolumns is the last thing running - as expected as it is called from the grid's PreRender event.

It may help to show some code:

Here is the grid:

    <telerik:RadGrid ID="statusGrid" runat="server" EnableViewState="false" AllowPaging="false" AllowSorting="false"
                     OnNeedDataSource="statusGrid_NeedDataSource" OnItemCreated="statusGrid_ItemCreated"
                     OnDetailTableDataBind="statusGrid_DetailTableDataBind" OnPreRender="statusGrid_PreRender"
                     AutoGenerateColumns="false" AllowMultiRowSelection="false" Width="98%" OnItemCommand="statusGrid_ItemCommand">
        <MasterTableView EnableViewState="false" EnableNoRecordsTemplate="true" GridLines="None"
                         AllowFilteringByColumn="false" ShowHeader="false" ShowFooter="false"
                         DataKeyNames="StatusID" HorizontalAlign="Right" Width="100%" Name="Status"
                         HierarchyLoadMode="ServerOnDemand" HierarchyDefaultExpanded="false" >
            <NoRecordsTemplate>
                No Patients or Forms available.
            </NoRecordsTemplate>
            <ItemStyle BackColor="#CDE3DD" />
            <Columns>
                <telerik:GridTemplateColumn>
                    <ItemStyle HorizontalAlign="Left" Width="250px" CssClass="statusInfo" />
                    <ItemTemplate>
                        <asp:Label ID="status" runat="server" />
                    </ItemTemplate>
                </telerik:GridTemplateColumn>
                <telerik:GridTemplateColumn>
                    <ItemStyle Width="350px" BorderStyle="None" />
                    <ItemTemplate>
                        &nbsp;
                    </ItemTemplate>
                </telerik:GridTemplateColumn>
                <telerik:GridTemplateColumn>
                    <ItemStyle HorizontalAlign="Right" Width="250px" CssClass="statusItem" />
                    <ItemTemplate>
                        <asp:Label ID="patientCount" runat="server" />
                    </ItemTemplate>
                </telerik:GridTemplateColumn>
                <telerik:GridButtonColumn UniqueName="levelOne" ButtonType="ImageButton" CommandName="Expand" ImageUrl="../images/header_menu.gif" >
                    <ItemStyle HorizontalAlign="Right" CssClass="statusButton" />
                </telerik:GridButtonColumn>
            </Columns>
            <DetailTables>
                <telerik:GridTableView DataKeyNames="PatientID" EnableViewState="false" AllowSorting="false"
                                       AllowPaging="true" PageSize="5" OnDataBound="patientGrid_DataBound" Name="Patients" >
                    <ParentTableRelation>
                        <telerik:GridRelationFields DetailKeyField="StatusID" MasterKeyField="StatusID" />
                    </ParentTableRelation>
                    <Columns>
                        <telerik:GridTemplateColumn>
                            <ItemStyle HorizontalAlign="Left"  Width="250px"/>
                            <ItemTemplate>
                                <asp:Label ID="patient" runat="server" />
                            </ItemTemplate>
                        </telerik:GridTemplateColumn>
                        <telerik:GridTemplateColumn>
                            <ItemStyle HorizontalAlign="Right" Width="250px"/>
                            <ItemTemplate>
                                <asp:Label ID="formCount" runat="server" />
                            </ItemTemplate>
                        </telerik:GridTemplateColumn>
                        <telerik:GridExpandColumn UniqueName="levelTwo" CollapseImageUrl="../images/expand.jpg" ExpandImageUrl="../images/expand.jpg" >
                            <HeaderStyle HorizontalAlign="Right" Width="10px" />
                        </telerik:GridExpandColumn>
                    </Columns>
                    <DetailTables>
                        <telerik:GridTableView DataKeyNames="FormID" EnableViewState="false"
                                               AllowPaging="true" PageSize="20" OnDataBound="formGrid_DataBound" Name="Forms" >
                            <ParentTableRelation>
                                <telerik:GridRelationFields DetailKeyField="PatientID" MasterKeyField="PatientID" />
                            </ParentTableRelation>
                            <HeaderStyle CssClass="listItem" />
                            <ItemStyle CssClass="listItem" />
                            <Columns>
                                <telerik:GridButtonColumn HeaderText="Form Name" DataTextField="SurveyName" SortExpression="SurveyName" ButtonType="LinkButton">
                                    <ItemStyle ForeColor="#1A3F62" Font-Bold="false" Font-Underline="false" />
                                </telerik:GridButtonColumn>
                                <telerik:GridBoundColumn DataField="PatientInitials" HeaderText="Patient Initials" SortExpression="PatientInitials" ReadOnly="true" />
                                <telerik:GridBoundColumn DataField="Comment" HeaderText="Comment" SortExpression="Comment" ReadOnly="true" />
                                <telerik:GridBoundColumn DataField="VisitName" HeaderText="Visit Name" SortExpression="VisitName" ReadOnly="true" />
                                <telerik:GridDateTimeColumn DataField="LastChange" HeaderText="Last Change" SortExpression="LastChange" ReadOnly="true" />
                                <telerik:GridBoundColumn DataField="ChangedBy" HeaderText="Changed By" SortExpression="ChangedBy" ReadOnly="true" />
                            </Columns>
                        </telerik:GridTableView>
                    </DetailTables>
                </telerik:GridTableView>
            </DetailTables>
        </MasterTableView>
    </telerik:RadGrid>

Here is the code run from the statusGrid-PreRender:

    /// <summary>
    /// Hides the expand column recursively.
    /// </summary>
    /// <param name="view">The view.</param>
    private void HideExpandColumnRecursive( GridTableView view )
    {
        GridItem[] nestedViewItems = view.GetItems( GridItemType.NestedView );
        foreach ( GridNestedViewItem nestedViewItem in nestedViewItems )
        {
            foreach ( GridTableView nestedView in nestedViewItem.NestedTableViews )
            {
                if ( nestedView.Items.Count == 0 )
                {
                    nestedViewItem.Visible = false;

                    TableCell cell = nestedView.ParentItem["ExpandColumn"];
                    cell.Visible = false;

                    cell.Controls[0].Visible = false;
                }

                if ( nestedView.HasDetailTables )
                {
                    HideExpandColumnRecursive( nestedView );
                }
            }
        }
    }

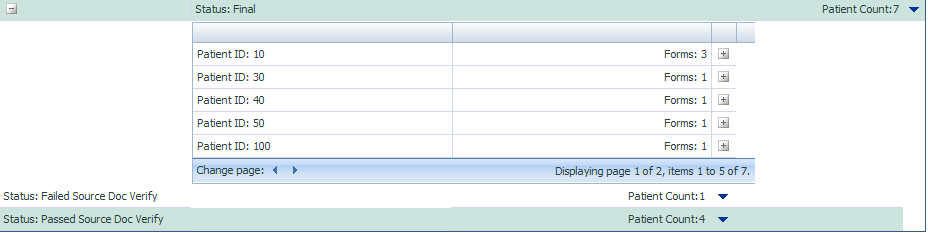

and attached is a screen shot of the expanded grid:

Any help is greatly appreciated.

David

[Pavlina]

Hello David,

I reviewed your setup, and the code looks correct. However, in order to further track the problem,
it will be best if you open a formal support ticket, and send us a small working project, demonstrating the setup, and the unwanted behavior. We will debug it locally, and get back to you with additional information.

Best wishes,
Pavlina
