OrgChart Grouping

2 posts, 0 answers
  1. Shawn
    Shawn avatar
    2 posts
    Member since:
    Jun 2011

    Posted 12 Oct 2012 Link to this post

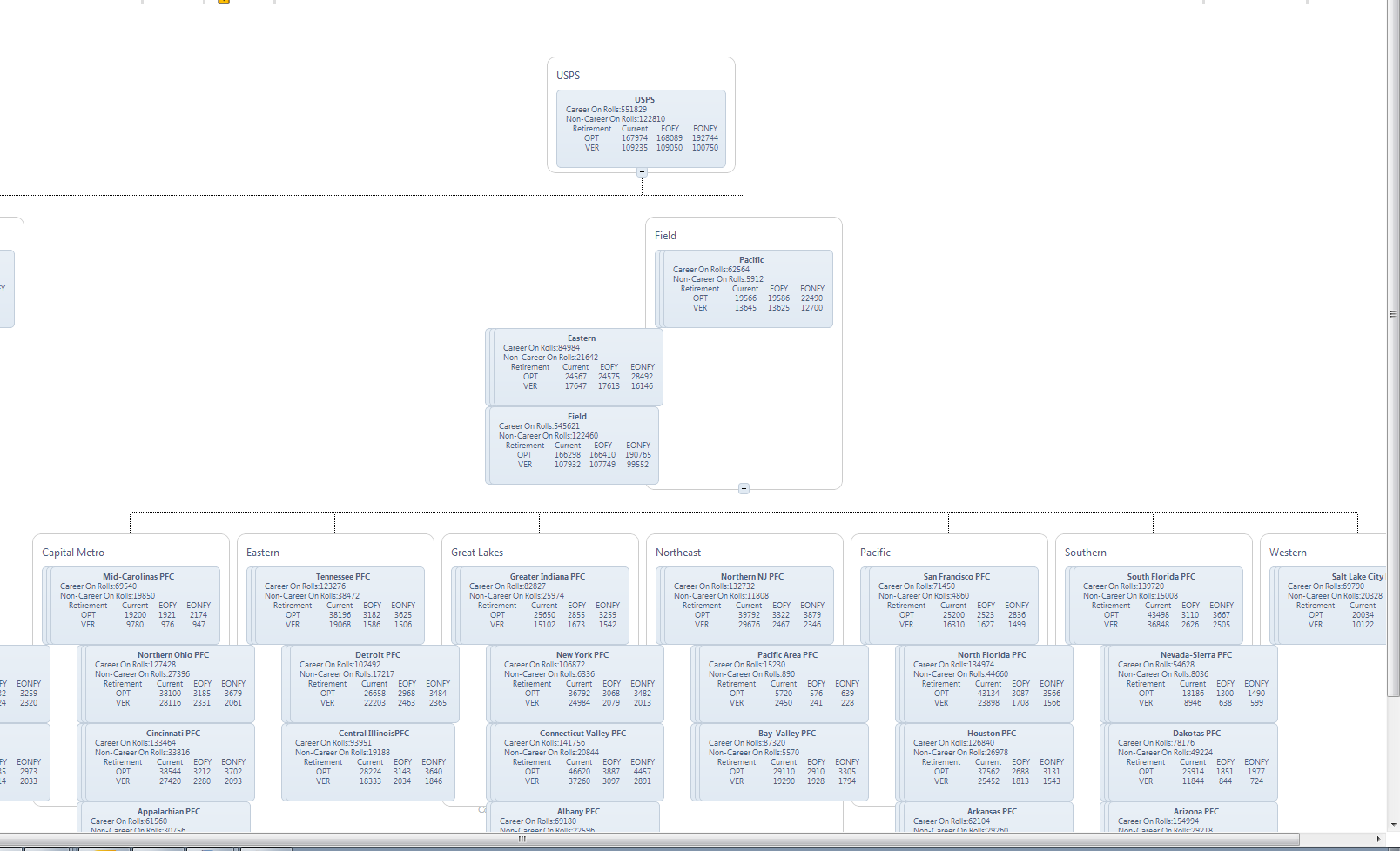

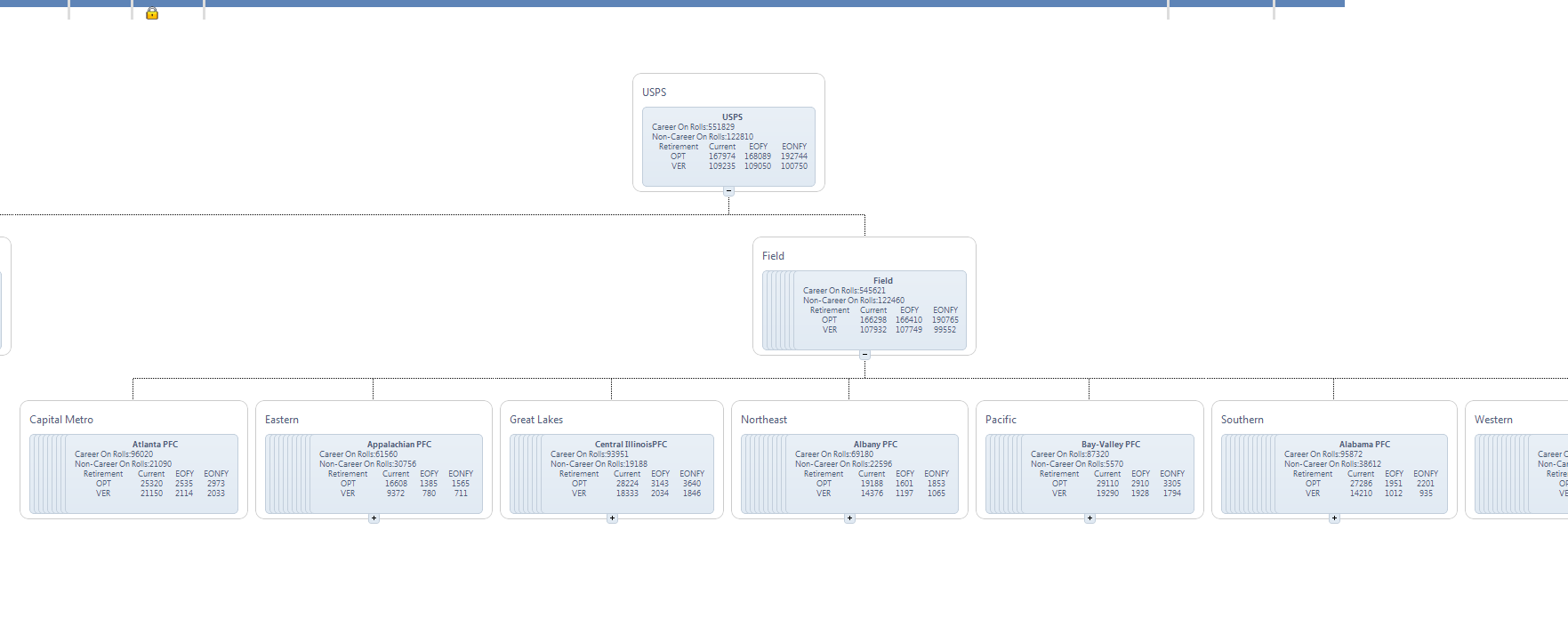

    Hello!  I am using the RadOrgChart with Group Items Overlap to display some information based on our hierarchy.  I have it functioning correctly however the rows are too wide for the screen as shown in the snapshot NoGroupColumnCount.png.  I tried setting the GroupColumnCount to 3 and that resulted in the group items restricted to 3 per line within the nodes as shown in WithGroupColumnCount.png.  Is there a way to limit the number of nodes per line instead of the overlapped group items?
  2. Plamen
    Plamen avatar
    3038 posts

    Posted 17 Oct 2012 Link to this post

    Hello Shawn,

    RadOrgChart does not have a property that controls this but node count may be checked before binding RadOrgChart and if it is greater than the desired value to reduce it(by some filtering command) and then perform the binding.

    You can also consider Node size help article.

    Hope this will be helpful.

    All the best,
    the Telerik team
