[Solved] Need to view the last column fully, AutoGenerateColumns="true"

[Anto (DLL Version : 2008.3.1314.35)]

Hi All,

Have a RadGrid with AutoGenerateColumns="true" and EditMode ="InPlace".

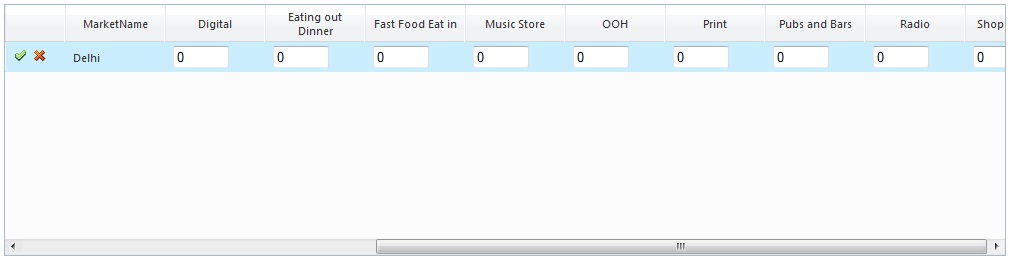

Not able to view the last column fully. have attached the screen shot.

The Last column is "Shopping Mall" but it displays as Shop only.

<telerik:RadGrid ID="RadGridSingleClick" runat="server" Skin="Vista" AutoGenerateColumns="true"
                            OnNeedDataSource="RadGridSingleClick_NeedDataSource" OnPreRender="RadGridSingleClick_PreRender"
                            OnUpdateCommand="RadGridSingleClick_UpdateCommand" OnColumnCreated="RadGridSingleClick_ColumnCreated"
                            Height="250px" Width="1100px">
                            <%--OnItemDataBound="RadGridText_ItemDataBound" --%>
                            <MasterTableView HeaderStyle-CssClass="disable-highlight" Width="95%" HeaderStyle-HorizontalAlign="Center"
                                HeaderStyle-Wrap="true" DataKeyNames="MKTID" HeaderStyle-Width="100px" ItemStyle-Width="100px"
                                EditMode="InPlace">
                                <Columns>
                                    <telerik:GridEditCommandColumn ButtonType="ImageButton" ItemStyle-Width="60px" HeaderStyle-Width="60px">
                                    </telerik:GridEditCommandColumn>
                                </Columns>
                            </MasterTableView>
                            <ClientSettings Scrolling-AllowScroll="true" Resizing-AllowColumnResize="true" Scrolling-SaveScrollPosition="true"
                                Scrolling-FrozenColumnsCount="2" Scrolling-UseStaticHeaders="true">
                                <Selecting AllowRowSelect="true" />
                                <ClientEvents OnRowClick="RadGridSingleRowClick" />
                                <Scrolling AllowScroll="true" UseStaticHeaders="true" />
                            </ClientSettings>
                        </telerik:RadGrid>

Have even given the MasterTableView Width="95%".

Is there any option to rectify this.

-Anto

[Venelin]

Hello Anto,

I am afraid that the issue is not replicating on my side with the latest version of the controls. Moreover the provided snippet seem to be generic enough and there is nothing irregular in it, except that you should not use ItemStyle-Width property especially in combination with HeaderStyle-Width. The only reason this property exists is that it is inherited from TableItemStyle.

Please find attached a sample project where the grid behaves as expected, try to examine it and see what is the difference with respect to your real project that might be causing the problem.  Also try to disable the resizing and see if the issue persists.

Regards,
Venelin
Telerik

[Anto (DLL Version : 2008.3.1314.35)]

Hi Venelin,

If I change UsestaticHeader = "false" it works fine.

But I need to froze 2 Columns, So I need to have UsestaticHeader = "true".

Is there any other alternate solution for this. It affects all my pages.

-Anto

[Venelin]

Hi Anto,

In principle, when using frozen columns feature,  the sum of the widths of the last visible columns must be less than or equal to the free space between the right border of the last frozen column and the right border of the grid. Otherwise you will not see the last column completely.

Alternatively you can try to set programmaticaly a sufficiently big width for the last column so that the content will be fully visible.

Regards,
Venelin
Telerik
