Floriane asked on 08 Sep 2015, 09:19 AM

Hello,

 About the link http://www.telerik.com/blogs/radhtmlchart-vs-radchart-round2-choose-asp-net-chart (that is posted in 2013), marked zones don't exist in radhtmlchart contrary to radchart.

Since this link, no feature about marked zones is added. Yet, this link said that all features would be added later than 2013 and we are in 2015. Any news about it?

 What I search, is customizing the plotarea for each date or each value of the axis x, regardless of the series.

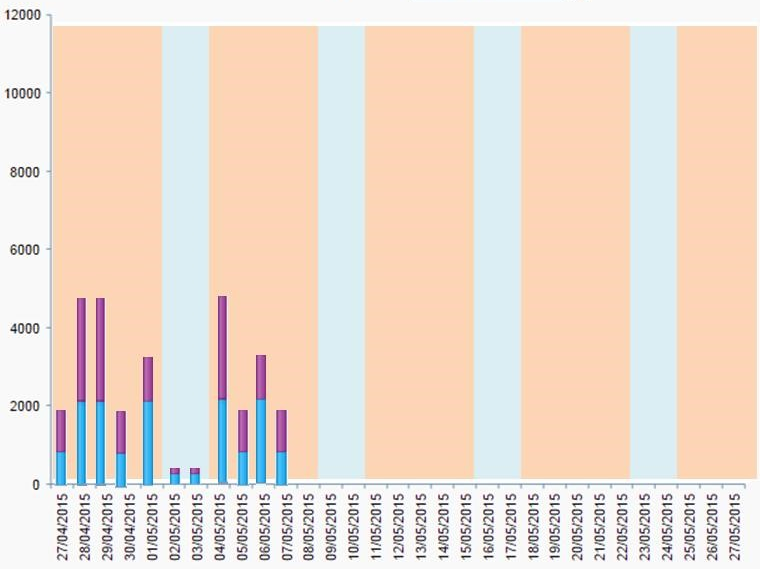

An example is joined for illustring it.

 Or there is an alternative?

 Thanks for your future help

2 Answers, 1 is accepted

Sort by
0
Accepted
Marin Bratanov
Telerik team
answered on 11 Sep 2015, 05:15 AM

Hello Floriane,

Marked zones exist in RadHtmlChart and they are called Plot Bands. You can see them in the following pages:

You can also find a feature parity list between RadChart and RadHtmlChart in the documentation: http://docs.telerik.com/devtools/aspnet-ajax/controls/htmlchart/changes-and-backwards-compatibility/migrating-from-radchart-to-radhtmlchart/migrate-functionalities---features-and-series-types-parity.

We intend to add as many of the old features as possible, yet some of them are not feasible with the client-side rendering paradigm, others have lower priority than tasks for other of the 80+ controls in the suite. If there is a feature you want to see implemented, yet is not available in the control, you can add your request in our feedback portal, if it is not already present there: http://feedback.telerik.com/project/108. The votes and comments from the community help us determine priorities for such tasks.

Regards,

Marin Bratanov
Telerik
Do you want to have your say when we set our development plans? Do you want to know when a feature you care about is added or when a bug fixed? Explore the Telerik Feedback Portal and vote to affect the priority of the items
0
Floriane
Top achievements
Rank 1
answered on 23 Sep 2015, 01:45 PM

Hello Martin,

Sorry for my very late response. Your solution was I wanted. I used the Plot Bands and it works well (I used only the axis X)

Thank you
