Is it possible to set 15 Min Slot Duration in RadScheduler

[Muhammad]

i wonder, if it is possible to set shorter time slots like 15 min in RadScheduler?
Thanks

[Muhammad]

I am still waiting for your response.

[Paul]

Hi Sajid,

If you want to set the slot duration to 15 min, please use the following:

TimelineView-SlotDuration = "00:15:00"

Best wishes,
Paul
the Telerik team

Instantly find answers to your questions on the new Telerik Support Portal.
Check out the tips for optimizing your support resource searches.

[Muhammad]

I did that but of no avail. It will be great if you could provide me more detail or code or demo. Please let me if I am missing something ?





      <telerik:RadScheduler OverflowBehavior="Scroll" Height="500px" runat="server"

                                                        AllowEdit="false" Skin="Hay" AllowInsert="false" AllowDelete="false" ID="RadScheduler1"

                                                        SelectedView="TimelineView" OnAppointmentCommand="RadScheduler1_AppointmentCommand"

                                                        OnAppointmentInsert="RadScheduler1_AppointmentInsert" OnTimeSlotCreated="RadScheduler1_TimeSlotCreated"

                                                        OnAppointmentUpdate="RadScheduler1_AppointmentUpdate" DisplayDeleteConfirmation="False"

                                                        EnableAdvancedForm="False" ShowFooter="False" ShowFullTime="false" ShowViewTabs="False"

                                                        MonthColumnHeaderDateFormat="" TimelineView-SlotDuration="00:15:00" MonthHeaderDateFormat="" WorkDayEndTime="23:59:00"

                                                        WorkDayStartTime="00:00:00" OnClientAppointmentClick="viewResults" OnClientTimeSlotClick="addResults"

                                                        OnAppointmentDataBound="RadScheduler1_AppointmentDataBound"

                                                        SelectedDate="2008-11-26">

                                                        <ResourceTypes>

                                                            <telerik:ResourceType Name="TestType" />

                                                        </ResourceTypes>

                                                        <AppointmentTemplate>

                                                            <!----                                                                                            </AppointmentTemplate>

                                                        <MonthView UserSelectable="False" VisibleAppointmentsPerDay="1" ColumnHeaderDateFormat=""

                                                            HeaderDateFormat="" />

                                                        <TimelineView GroupingDirection="Vertical" HeaderDateFormat="&quot;dd&quot;" />

                                                        <WeekView UserSelectable="False" />

                                                        <DayView UserSelectable="false" />









                                                        <InlineInsertTemplate>

                                                            <div>

                                                                <asp:LinkButton ID="btnNewView" runat="server" CommandName="View" Text="View" />

                                                            </div>

                                                        </InlineInsertTemplate>

                                                        <InlineEditTemplate>

                                                            <div>

                                                                <asp:LinkButton ID="btnExitingView" runat="server" CommandName="Update" Text="View" />

                                                            </div>

                                                        </InlineEditTemplate>

                                                    </telerik:RadScheduler>





[Muhammad]

We have set TimelineView-SlotDuration="00:15:00" ... in code; but it is still showing time slot duration 30 min.s

Kindly review the code sent earlier and let us know where we is the error.

Your urgent response will be highly appreciated.

[Muhammad]

Just want to add one more point. After above settings; I am expecting that this should change the time slot in day view and in week view to 15 min.s; therefore users will be able to create an appointment / meeting of duration 15 mins.

Can I do that?

[Paul]

Hi Sajid Wahab,

Please, try setting:

MinutesPerRow="15"
HoursPanelTimeFormat="hh:mm"

and let us know if this is what you need.

All the best,
Paul
the Telerik team

Instantly find answers to your questions on the newTelerik Support Portal.
Check out the tipsfor optimizing your support resource searches.

[Oneview Corp]

That does expand out the calendar, but two issues remain:
1. Mouseover on calendar highlights the half hour slots instead of 15 minutes
2. The time-slots in the advanced form are still in 30 minute increments

How do I resolve these?

[Peter]

Hello Oneview,

1. You can control this behavior through the NumberOfHoveredRows property of RadScheduler.

2. Here is a workaround for this requirement -

protected void RadScheduler1_FormCreated(object sender, SchedulerFormCreatedEventArgs e)
  {
      if ((e.Container.Mode == SchedulerFormMode.AdvancedEdit) || (e.Container.Mode == SchedulerFormMode.AdvancedInsert))
      {
          RadTimePicker startTime = e.Container.FindControl("StartTime") as RadTimePicker;
          startTime.TimeView.StartTime = RadScheduler1.DayStartTime;
          startTime.TimeView.EndTime = RadScheduler1.DayEndTime;
          startTime.TimeView.Interval = new TimeSpan(0, RadScheduler1.MinutesPerRow, 0);
          startTime.TimeView.DataList.DataSource = null;
          startTime.DataBind();
          RadTimePicker endTime = e.Container.FindControl("EndTime") as RadTimePicker;
          endTime.TimeView.StartTime = RadScheduler1.DayStartTime;
          endTime.TimeView.EndTime = RadScheduler1.DayEndTime;
          endTime.TimeView.Interval = new TimeSpan(0, RadScheduler1.MinutesPerRow, 0);
          endTime.TimeView.DataList.DataSource = null;
          endTime.DataBind();
      }
  }

Greetings,
Peter
the Telerik team

[sharanya]

Hi Peter,

Where is the radTimepicker element 'StartTime'? It gives me a object reference null error when I try the above code.

Thanks & Regards,
Sharanya

[Boyan Dimitrov]

Hello,

I would like to note that the startTime RadTimepicker only exists in the advanced form. Could you please confirm that you placed the custom logic from Peter's response in this if condition?
//code behind

if ((e.Container.Mode == SchedulerFormMode.AdvancedEdit) || (e.Container.Mode == SchedulerFormMode.AdvancedInsert))
      {
//here goes the logic for finding the statTime control
....
}

Regards,
Boyan Dimitrov
Telerik





[Srivalli]

Hi,

Im using RadScheduler in my application and selected-view is timeline view for some reason dates are repeating on UI.

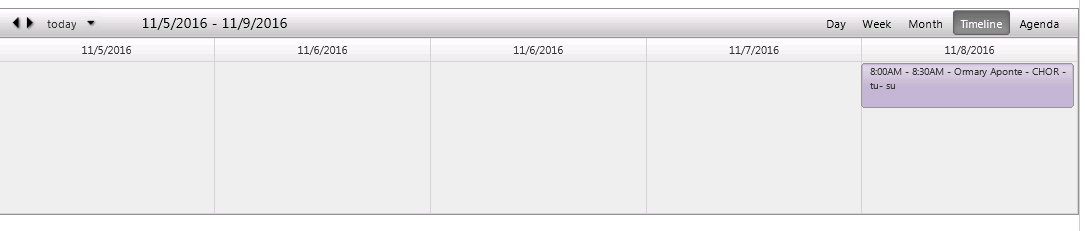

Appreciate your help. Following is the screenshot and code

<TimelineView NumberOfSlots="5" />









[Srivalli]

Hi,

Im using RadScheduler in my application and selected-view is timeline view for some reason dates are repeating. Im trying to display all the appointments in the timelineview.

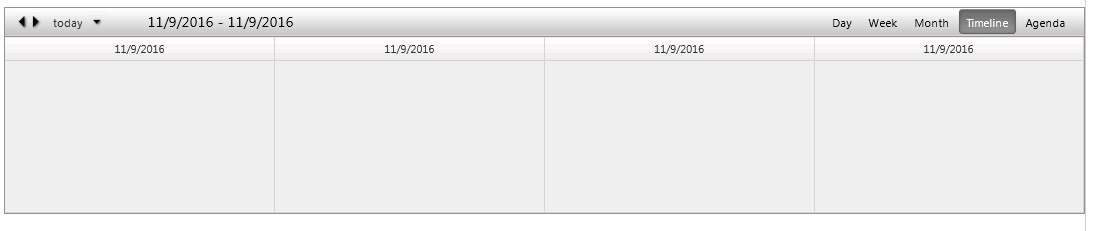

Appreciate your help. Following is the screenshot and code
<TimelineView NumberOfSlots="5" />

trying to display 5 days but the dates are repeating on the scheduler.

[Veselin Tsvetanov]

Hello Srivalli,

As far as I can see on the screenshot, you have five days (slots) displayed in the RadScheduler. 6th of November, however, is repeated in your TimeLine view.

If this is the issue faced, I would like to ask you to open a support ticket and send us an isolated runnable sample project reproducing the problem. This way we will be able to troubleshoot the issue locally and to provide you with the most appropriate assistance for your case.

Regards,
Veselin Tsvetanov
Telerik by Progress

[Hevin]

You just need to assign these properties and it will resolve all of your problems you mentioned above                                         MinutesPerRow="15" HoursPanelTimeFormat="hh:mm" NumberOfHoveredRows="1"
