[Solved] Insert button does not show in Add New Record mode in radgrid

[m chotu]

Hi;

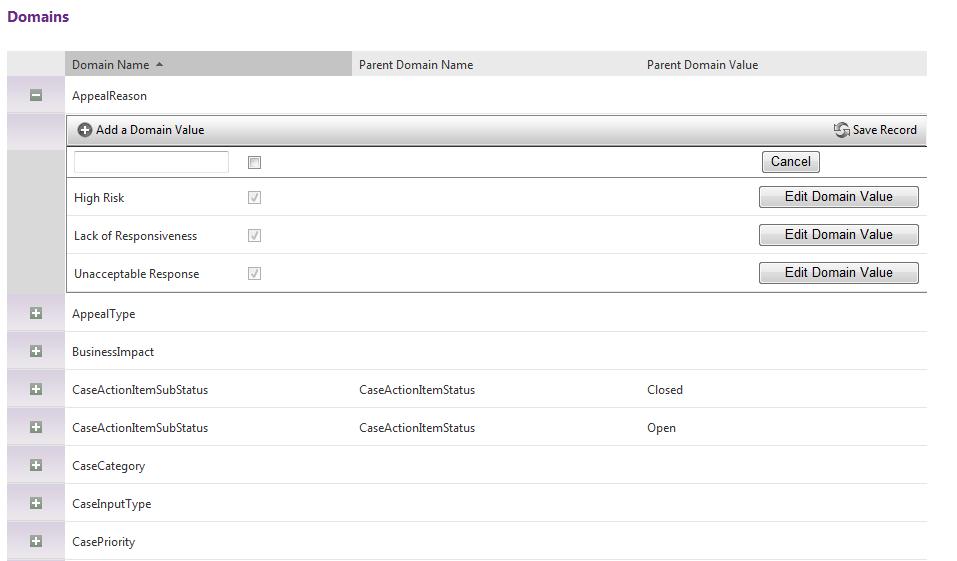

I have a radgrid with detail table added to it.  I have the CommandItemDisplay="Top" set for the detail table.  During run time, when I click on the add new record button, then the insert item template becomes visible.  Here, I only see the Cancel button but not the Insert button.  I have attached a screen shot of the missing insert button in my grid.  Here is my radgrid setup in the aspx page.

Your help is really appreciated.

Thanks in advance,
MS

<



div style="padding-top:10px;">





<telerik:RadAjaxManager ID="RadAjaxManager1" runat="server">





<AjaxSettings>





<telerik:AjaxSetting AjaxControlID="viewGrid">





<UpdatedControls>





<telerik:AjaxUpdatedControl ControlID="viewGrid" />





</UpdatedControls>





</telerik:AjaxSetting>





</AjaxSettings>





</telerik:RadAjaxManager>





<telerik:RadGrid ID="viewGrid" runat="server" ActiveItemStyle-BorderColor="ActiveBorder"





ShowStatusBar="True" AllowSorting="true" ItemStyle-BorderWidth="1px" OnSortCommand="viewGrid_Sort"





MasterTableView-ExpandCollapseColumn-CollapseImageUrl="~/App_Themes/Images/Content/collapse.gif"





MasterTableView-ExpandCollapseColumn-ButtonType="ImageButton" OnUpdateCommand="viewGrid_UpdateCommand"





MasterTableView-ExpandCollapseColumn-ExpandImageUrl="~/App_Themes/Images/Content/expand.gif"





MasterTableView-ExpandCollapseColumn-ItemStyle-HorizontalAlign="Center" OnItemCreated="viewGrid_ItemCreated"





MasterTableView-ExpandCollapseColumn-ItemStyle-VerticalAlign="Middle" OnItemDataBound="viewGrid_DataBound"





MasterTableView-ExpandCollapseColumn-ItemStyle-Width="2%" OnDetailTableDataBind="viewGrid_DetailTableDataBind"





OnNeedDataSource="viewGrid_NeedDataSource" OnPreRender="viewGrid_PreRender" AllowAutomaticUpdates="true"





OnInsertCommand="viewGrid_InsertCommand" AllowAutomaticInserts="true">





<MasterTableView AutoGenerateColumns="False" HierarchyLoadMode="ServerBind"





DataKeyNames="DomainName,ParentDomainValue" EditMode="InPlace" Name="Master" >





<DetailTables>





<telerik:GridTableView DataKeyNames="DomainName,ParentDomainName,ParentDomainValue" Name="DomainLabel"





AutoGenerateColumns="false" EditMode="InPlace" ItemStyle-BorderWidth="0px" AllowSorting="false"





ShowHeader="false" AllowAutomaticInserts="true" AllowAutomaticUpdates="true"





CommandItemDisplay="Top">





<ParentTableRelation>





<telerik:GridRelationFields DetailKeyField="DomainName" MasterKeyField="DomainName" />





</ParentTableRelation>





<CommandItemSettings RefreshText="Save Record" AddNewRecordText="Add a Domain Value" />





<Columns>







<telerik:GridBoundColumn UniqueName="DomainValue" DataType="System.String"





DataField="DomainValue" ColumnEditorID="GridTextBoxColumnEditor1">





<ItemStyle Width="10%" HorizontalAlign="Left" Wrap="false" />





</telerik:GridBoundColumn>





<telerik:GridCheckBoxColumn DataField="ActiveFlag" UniqueName="ActiveFlag"





DataType="System.Boolean" >





</telerik:GridCheckBoxColumn>





<telerik:GridCheckBoxColumn DataField="EditableFlag" UniqueName="EditFlag"





DataType="System.Boolean" Visible="false" >





</telerik:GridCheckBoxColumn>





<telerik:GridBoundColumn DataField="ParentDomainName" UniqueName="ParentDomainName"





DataType="System.String" Visible="false" >





</telerik:GridBoundColumn>





<telerik:GridBoundColumn DataField="ParentDomainValue" UniqueName="ParentDomainValue"





DataType="System.String" Visible="false" >





</telerik:GridBoundColumn>





<telerik:GridEditCommandColumn ButtonType="PushButton" EditText="Edit Domain Value" UpdateText="Update"





CancelText="Cancel" UniqueName="EditCommandColumn1">





<HeaderStyle Width="20px" />





</telerik:GridEditCommandColumn>







</Columns>





</telerik:GridTableView>





</DetailTables>









<Columns>





<telerik:GridBoundColumn UniqueName="DomainName" DataType="System.String" HeaderText="<%$ Resources:DomainAdmin, locDomainName %>"





DataField="DomainName" SortExpression="DomainName">





<HeaderStyle HorizontalAlign="Left" Width="10%" />





<ItemStyle Width="10%" HorizontalAlign="Left" Wrap="true" />





</telerik:GridBoundColumn>





<telerik:GridBoundColumn UniqueName="ParentDomainName" DataType="System.String"





HeaderText="<%$ Resources:DomainAdmin, locParentDomainName %>" DataField="ParentDomainName"





SortExpression="ParentDomainName">





<HeaderStyle HorizontalAlign="Left" Width="10%" />





<ItemStyle Width="10%" HorizontalAlign="Left" Wrap="true" />





</telerik:GridBoundColumn>





<telerik:GridBoundColumn UniqueName="ParentDomainValue" DataType="System.String" HeaderText="<%$ Resources:DomainAdmin, locParentDomainValue %>"





DataField="ParentDomainValue" SortExpression="ParentDomainValue">





<HeaderStyle HorizontalAlign="Left" Width="10%" />





<ItemStyle Width="10%" HorizontalAlign="Left" Wrap="true" />





</telerik:GridBoundColumn>





</Columns>





<AlternatingItemStyle Wrap="false"/>





<ItemStyle Wrap="false"/>





<RowIndicatorColumn Visible="False">





<HeaderStyle Width="20px" />





</RowIndicatorColumn>





<ExpandCollapseColumn ButtonType="ImageButton">





</ExpandCollapseColumn>





<EditFormSettings>





<PopUpSettings ScrollBars="None" />





</EditFormSettings>











</MasterTableView>





</telerik:RadGrid>







</div>
